Exhaust System & Turbocharger: Converter-Catalytic: Description

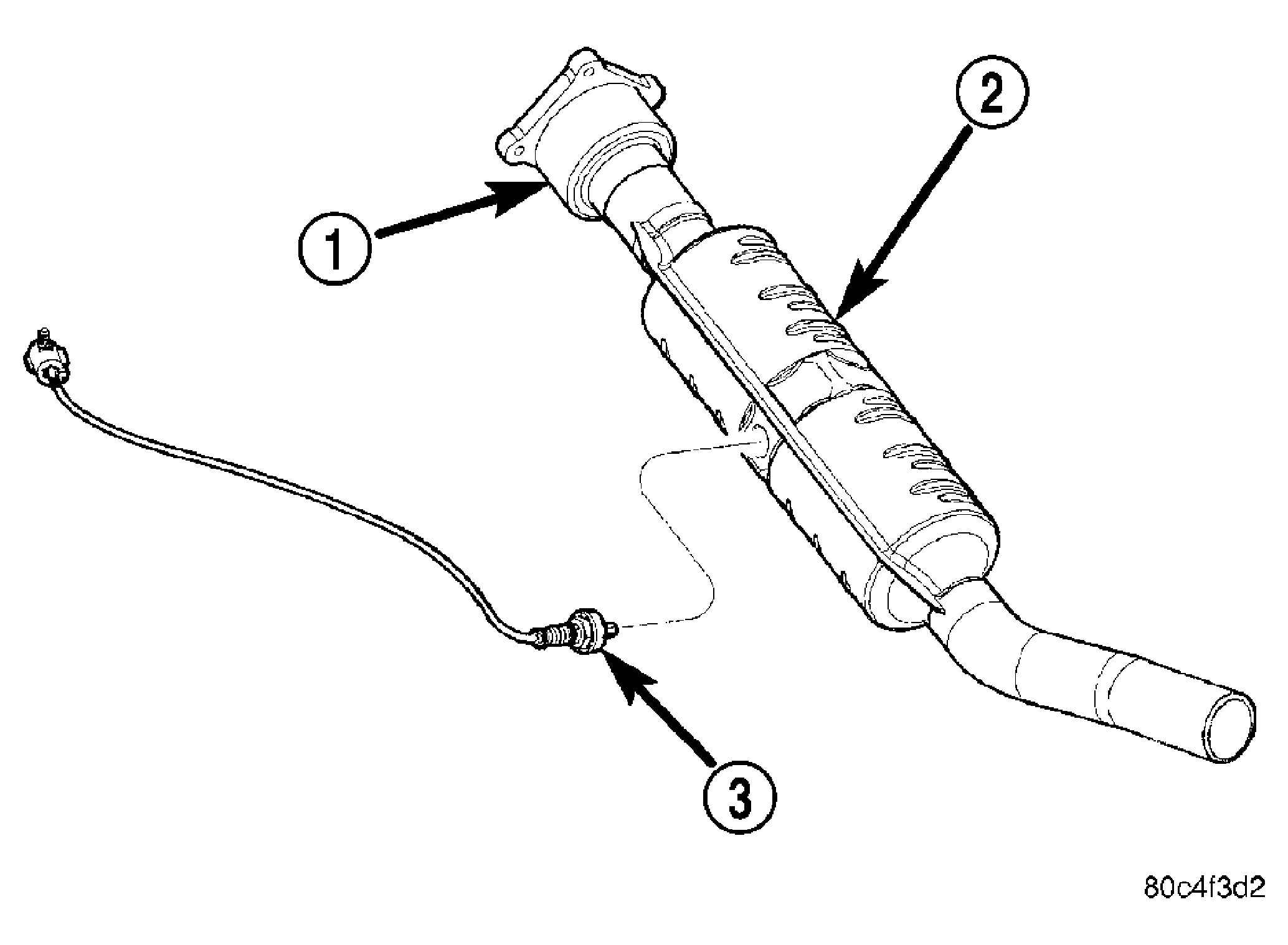

Fig 1: Catalytic Converter - Typical

Courtesy of DAIMLERCHRYSLER CORP.

An under-floor catalytic converter (2) inlet is attached to the exhaust manifold using fasteners and a gasket for sealing. A flex joint that is integral to the converter allows movement between the engine and the exhaust system. The converter outlet attaches to the intermediate pipe. See Fig 1.
