Removal - Convertible

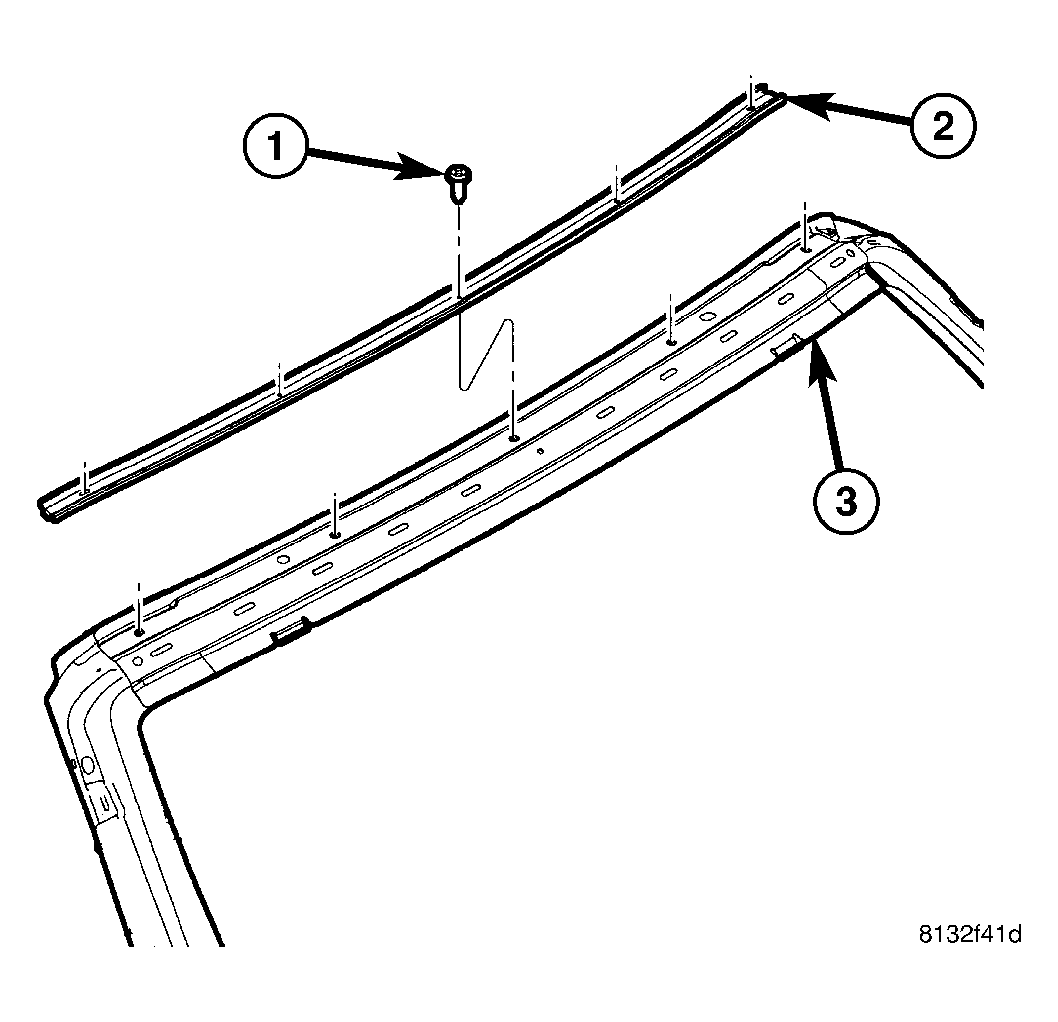

Fig 1: Weatherstrip Header Seal Retainer
GC0022604Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the header and A-pillar weatherstrip (Refer to BODY/WEATHERSTRIP/SEALS/HEADER/WEATHERSTRIP-HEADER AND A-PILLAR - REMOVAL) .
  2. Remove the five screws (1) that secure the weatherstrip header seal retainer (2) to the windshield opening frame (3) and remove the seal retainer.
