Liftgate Weatherstrip: Installation

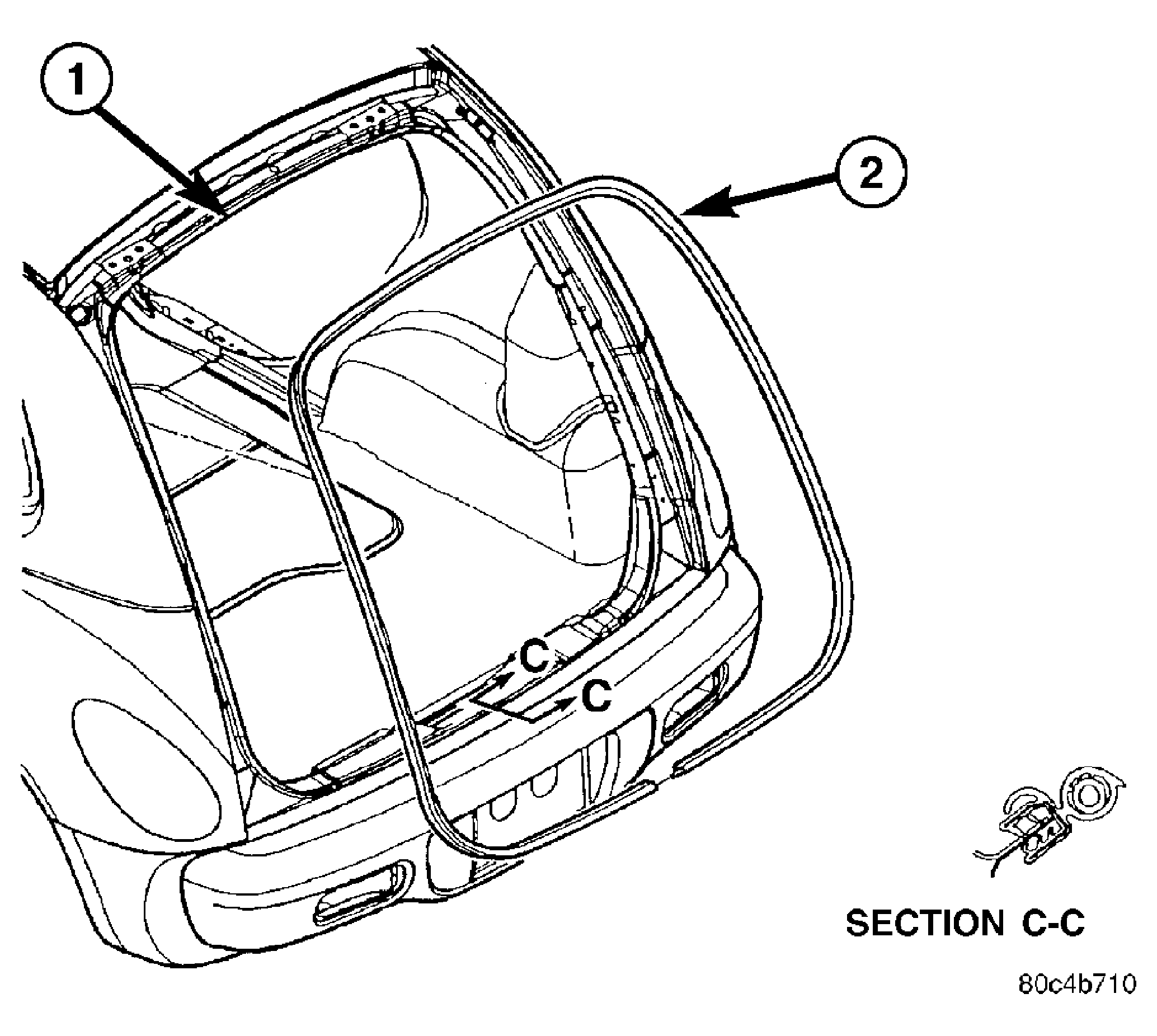

Fig 1: DOOR OUTER BELT WEATHERSTRIP
GC0043141Courtesy of DAIMLERCHRYSLER CORP.
1 - LIFTGATE OPENING
2 - LIFTGATE OPENING WEATHERSTRIP
  1. Starting at bottom center, press weatherstrip (2) into position.
  2. Open and close liftgate and check for interference.
