Wind Deflector: Removal

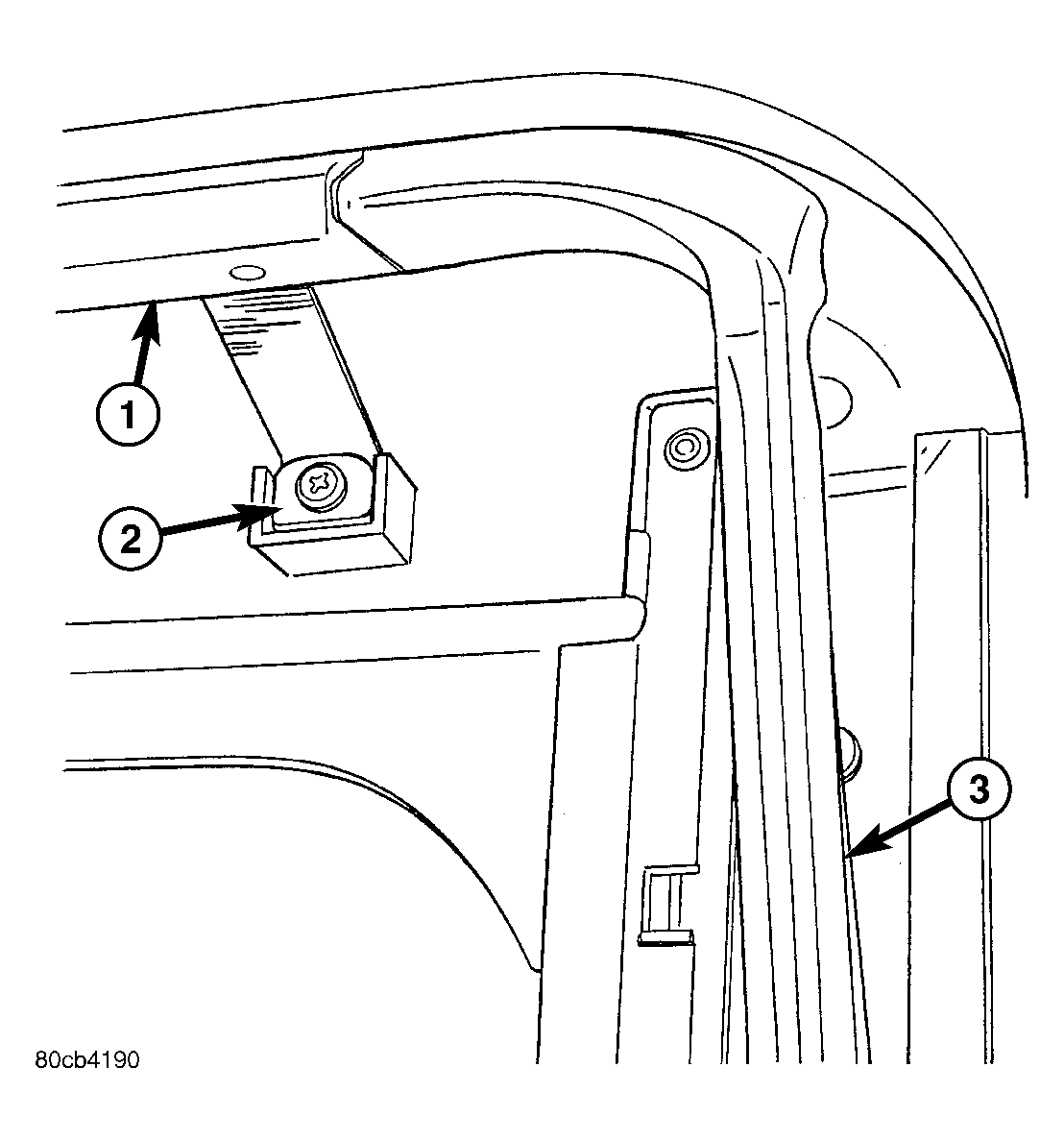

Fig 1: Sunshade
GC0022585Courtesy of DAIMLERCHRYSLER CORP.
1 - WIND DEFLECTOR
2 - SCREW
3 - SPRING
  1. Fully open sunroof glass panel.
  2. Remove two screws (2) attaching wind deflector straps to front crossmember.
  3. Rotate wind deflector (1) into the vertical, 90° to the roof.
  4. Push wind deflector arms down and rearward to disengage arms from spring hooks.
  5. Remove wind deflector (1).
