Sunroof Trough Guide Assembly: Installation

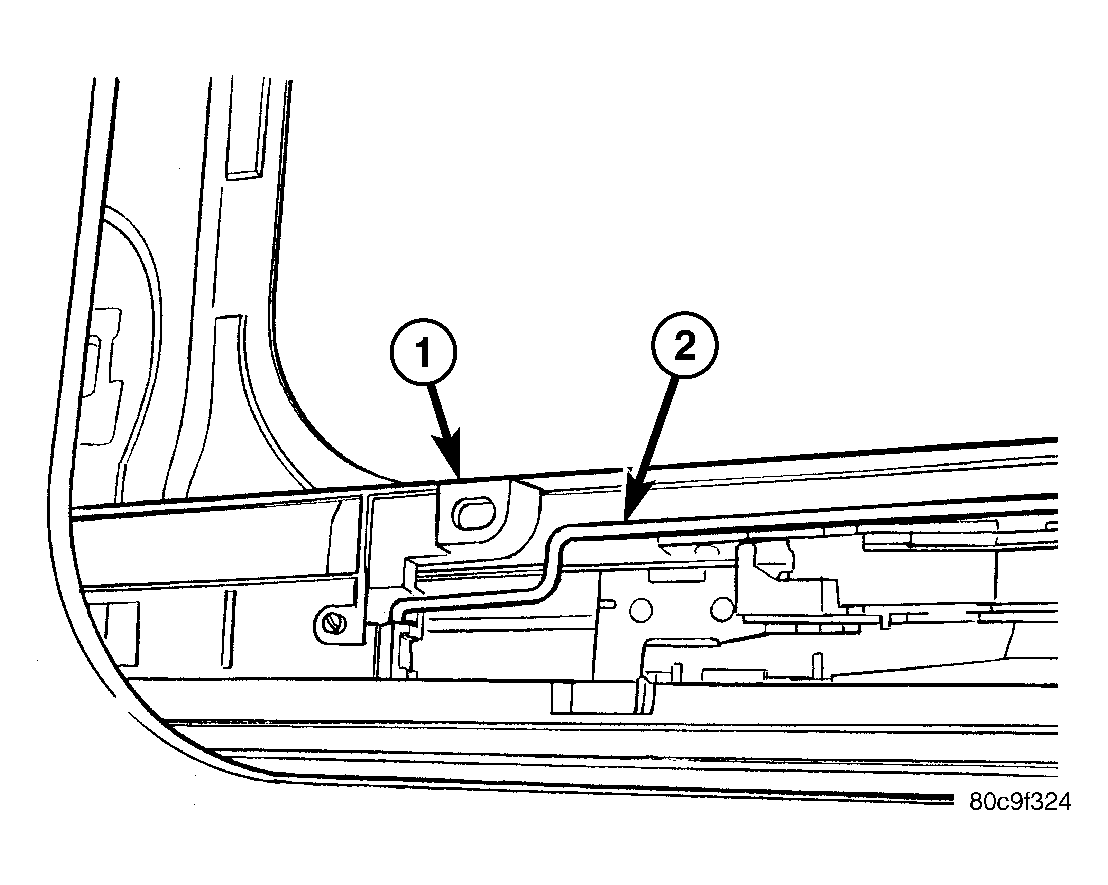

Fig 1: TROUGH GUIDES

Courtesy of DAIMLERCHRYSLER CORP.

1 - TROUGH GUIDE

2 - GUIDE LINK

1. Carefully twist trough guide (1) through small slot (cut out) on track to install.
2. Connect the trough guide wire to the lifter arm.
3. Place the trough into position on sunroof. Ensure that the trough crosses over the top of the sunshade.
4. Install the two screws that attach the trough to the trough guides (1). Tighten screws to 1 N.m (9 in. lbs.).
5. Install sunroof glass panel (Refer to BODY/SUNROOF/GLASS PANEL - INSTALLATION) .
