Rear Seat Back Cushion / Cover: Installation

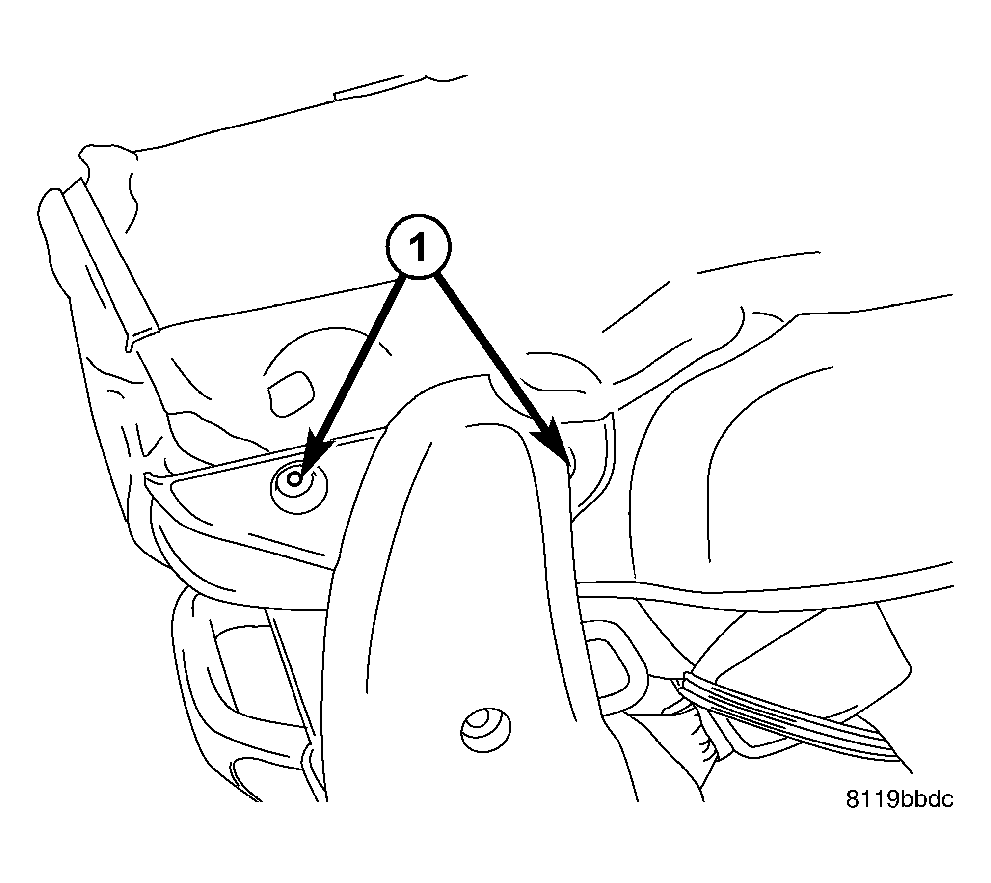

Fig 1: SEAT CUSHION FRAME, BACK FRAME, PIVOT

Courtesy of DAIMLERCHRYSLER CORP.

1. Position seat cover on cushion.
2. Align seat cover with cushion alignment indentations.
3. Install hog rings.
4. Engage J-strap attaching seat cover to front of seat cushion frame.
5. Install track assembly. Tighten front track to pan bolts to 12 N.m (9 ft. lbs.).

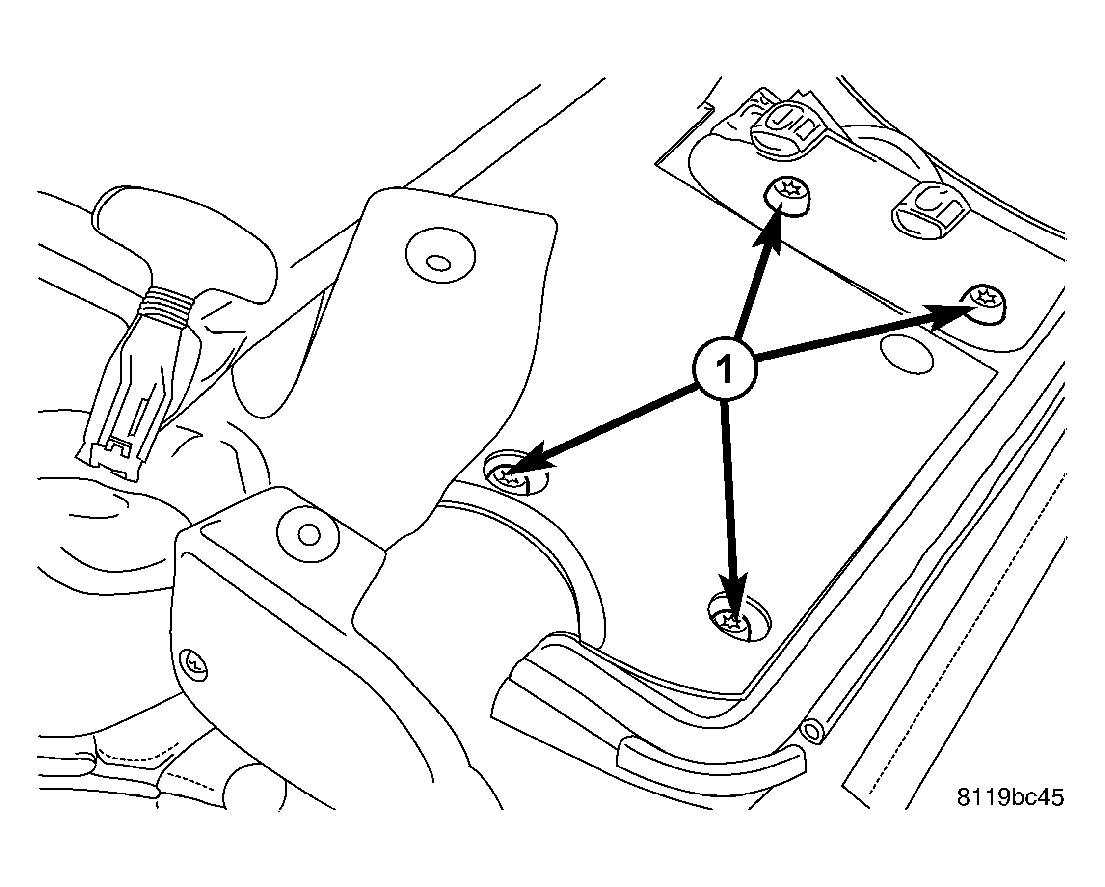

   Fig 2: SEAT BACK TRIM

   Courtesy of DAIMLERCHRYSLER CORP.
6. Install seat back.
7. Install rear seat cushion side shields.
8. Install seat in vehicle.
