Front Seat Back: Removal: Coupe

WARNING: Before servicing the seat back the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury. Refer to RESTRAINTS - SERVICE INFORMATION for service procedures.

CAUTION: Do not reuse the recliner assembly attaching bolts.

Fig 1: Front Seat Cushion Shield Mounting Screws - Inboard

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT INNER SEAT BELT ATTACHING SCREW

2 - SHIELD ATTACHING SCREWS

Remove seat from vehicle. (Refer to BODY/SEATS/SEAT - REMOVAL) .
Remove front seat inboard cushion side shield.

Fig 2: Front Seat Cushion Shield - Outboard
Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING SCREWS
Remove the seat back recliner handle/fold flat handle and front outboard seat cushion shield.

Fig 3: Armrest Plug
Courtesy of DAIMLERCHRYSLER CORP.

1 - ARMREST

2 - PLUG

Remove seat armrest plug (2).

Fig 4: Armrest Screw

Courtesy of DAIMLERCHRYSLER CORP.

1 - ARMREST

2 - ARMREST SCREW

3 - LUMBAR HANDLE

4 - LUMBAR HANDLE SCREW

Remove seat armrest (1) and lumbar handle (3) if equipped.

Fig 5: Front Seat Locking Strip
Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SEAT BACK COVER

2 - LOCKING STRIP
Disengage seat back cover (1) and locking strip (2) across lower back cover.

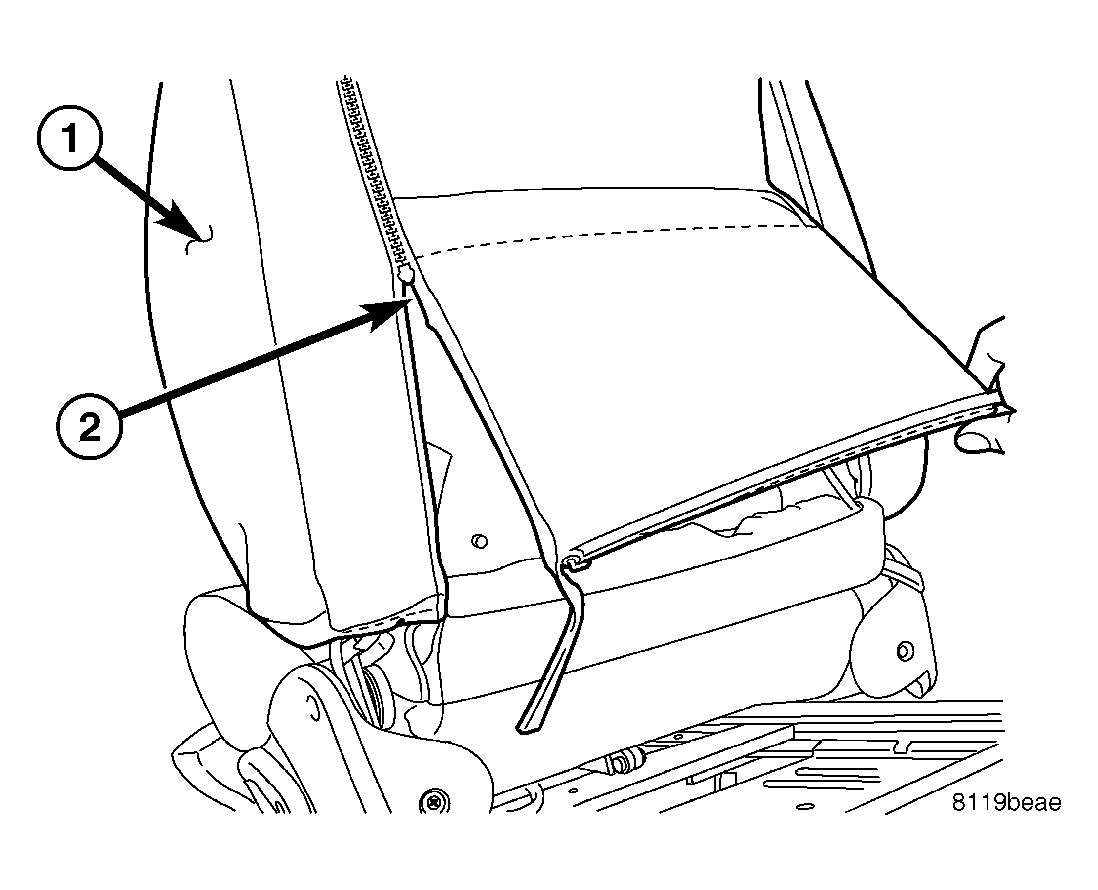

Fig 6: Zipping Front Seat Back Cover
Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SEAT BACK COVER

2 - ZIP SEAT BACK COVER
Pull the zipper end(s) out on each side of the seat back and unzip the front seat back cover (1).

Fig 7: Front Seat Back With Zipper
Courtesy of DAIMLERCHRYSLER CORP.

1 - PUSH PINS FASTENERS

2 - FRONT SEAT BACK COVER
Raise cover (2) and remove the push pins (1) and board.

Fig 8: Lumbar Bracket Attaching Screws
Courtesy of DAIMLERCHRYSLER CORP.

1 - LUMBAR BRACKET ATTACHING SCREWS
Remove upper riser shield, if equipped.
Move seat cover and cushion to access the front seat back recliner.
Remove two attaching lumbar actuator screws (1) from the inner seat back frame.
Move lumbar actuator free the front seat back recliner.

Fig 9: Front Seat Back Attaching Screws
Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SEAT BACK

2 - ATTACHING SCREWS
Remove screws (2) attaching recliner to seat back cushion frame on both sides.

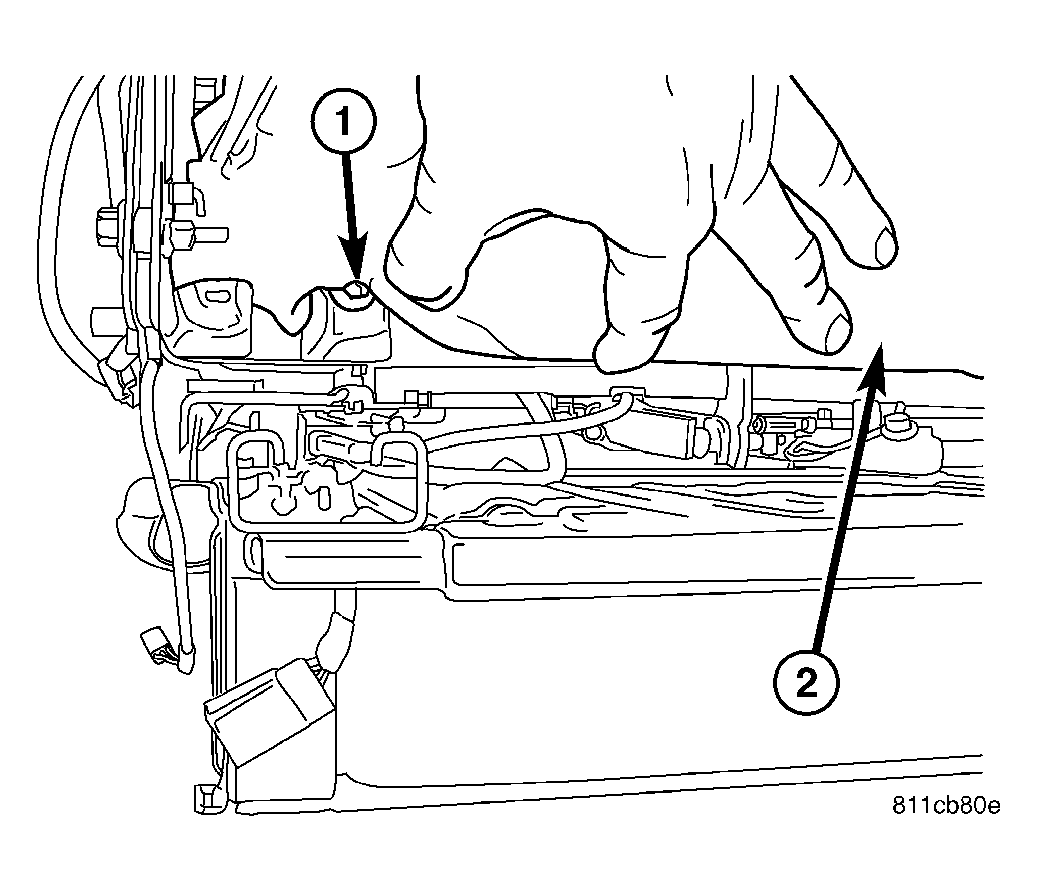

Fig 10: Rear Attaching Screw - Front Seat Cushion
Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR ATTACHING SCREW

2 - FRONT SEAT CUSHION
Vehicle with Seat Airbag and/or Heated Seat System, remove front seat cushion (2) frame. Remove two front side screws and two rear screws.
Disconnect any electrical connectors and wire ties from the seat back that are connected under the seat cushion, if equipped.
Remove seat back frame from seat assembly.
