Front Seat Back Cover - Without Front Seat Back Panel: Installation

WARNING: Before servicing the seat back cover the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury. Refer to RESTRAINTS - SERVICE INFORMATION for service procedures.

Fig 1: Seat Back Cover Velcro® Strips

Courtesy of DAIMLERCHRYSLER CORP.

1 - VELCRO® STRIPS

1. Place seat back cover into position on the cushion and seat frame.
2. Roll seat back cover down to cushion and engage the Velcro® strips (1) using care not to leave any in the seat cover.
   Fig 2: Side Airbag Plastic Cover

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SIDE AIRBAG PLASTIC COVER

   2 - ATTACHING SCREW

3. Install screw (2) attaching seat airbag plastic cover (1).

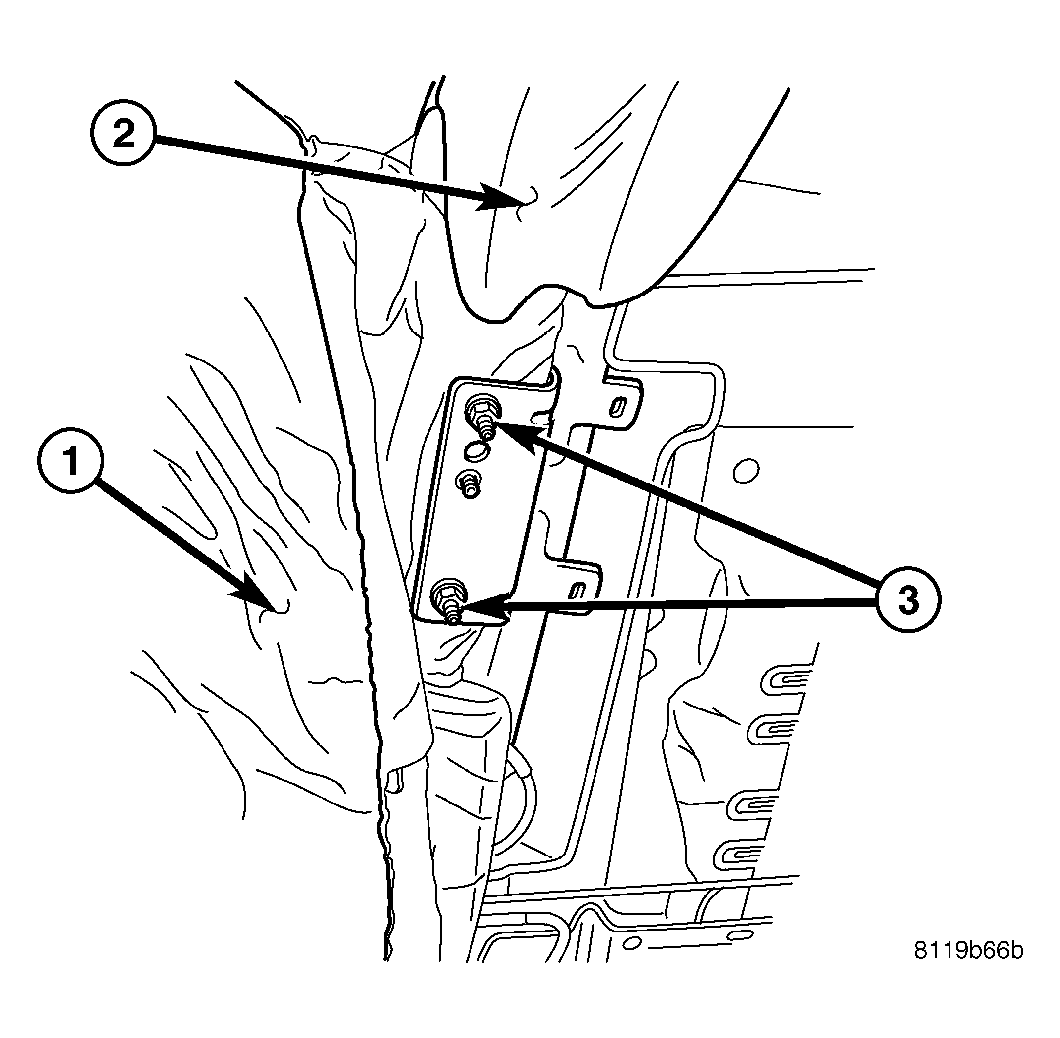

   Fig 3: Seat Airbag Mounting Bracket

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SEAT BACK COVER

   2 - SEAT BACK CUSHION

   3 - SEAT AIRBAG ATTACHING NUTS

4. Place seat airbag into sleeve in the seat back cover (1).
5. Install nuts attaching (3) seat airbag to seat back frame.
   Fig 4: Front Seat Back With Zipper

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - PUSH PINS FASTENERS

   2 - FRONT SEAT BACK COVER

6. Pull cover (2) into position and install the push pins (1).

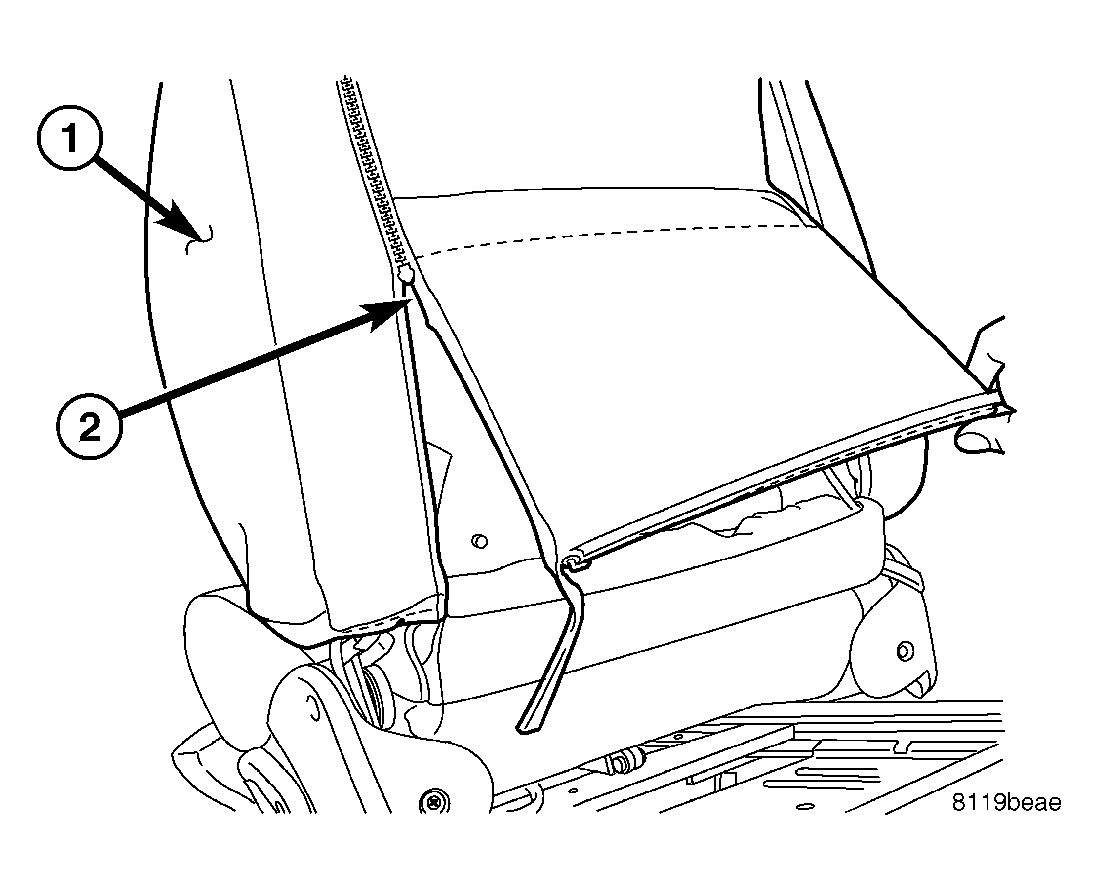

   Fig 5: Zipping Front Seat Back Cover

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - FRONT SEAT BACK COVER

   2 - ZIP SEAT BACK COVER

7. Pull the zipper down on each side front seat back cover (1) and place zip ends inside of seat back cover (2).
   Fig 6: Front Seat Locking Strip

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - FRONT SEAT BACK COVER

   2 - LOCKING STRIP

8. Engage seat back cover locking strip (2) across lower back cover.
   Fig 7: Armrest Screw

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - ARMREST

   2 - ARMREST SCREW

   3 - LUMBAR HANDLE

   4 - LUMBAR HANDLE SCREW

9. Install seat armrest (1) and lumbar handle (3) if equipped.
   Fig 8: Armrest Plug

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - ARMREST

   2 - PLUG

10. Install seat armrest plug (2).
    Fig 9: Headrest Adjuster Caps

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - HEADREST ADJUSTER CAP WITH RELEASE TAB

    2 - HEADREST ADJUSTER CAP WITH BUTTON

11. Install headrest adjuster caps. Align tab notch in the sleeve and pushing downward till it locks into position.
    Fig 10: Removing/Installing Front Headrest

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - FRONT HEADREST

    2 - RELEASE BUTTON

12. Install headrest (1).
    Fig 11: Rear Attaching Screw - Front Seat Cushion

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - REAR ATTACHING SCREW

    2 - FRONT SEAT CUSHION

13. Connect any electrical connectors and secure wire harness with wire ties under the seat cushion, if equipped.
    Fig 12: Front Side Attaching Screw Front Cushion

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - FRONT SIDE AND REAR ATTACHING SCREW

    2 - FRONT SEAT CUSHION

14. Install two front side and two rear screws (1) attaching seat cushion (2).
    Fig 13: Front Seat Cushion Shield Mounting Screws - Inboard

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - FRONT INNER SEAT BELT ATTACHING SCREW

    2 - SHIELD ATTACHING SCREWS

15. Install front inner seat belt attaching (1) and inboard seat side shield screws (2).
    Fig 14: Front Seat Cushion Shield - Outboard

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - ATTACHING SCREWS

16. Connect wire connectors, if equipped. Install seat back recliner handle/fold flat handle and front seat cushion shield.
17. Install front seat into vehicle.
