Front Seat Back - With Front Seat Back Panel: Installation

WARNING: Before servicing the seat back the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury. Refer to RESTRAINTS - SERVICE INFORMATION for service procedures.

CAUTION: Do not reuse the recliner assembly attaching bolts.

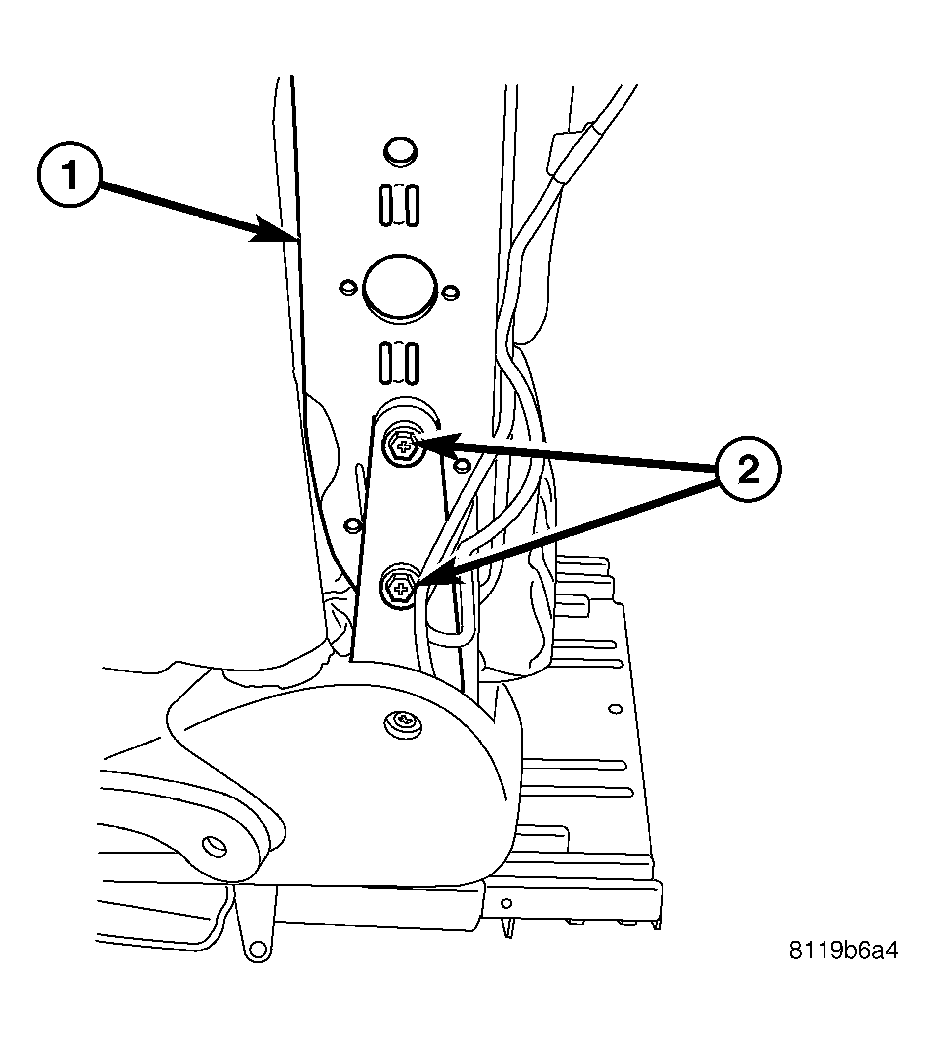

Fig 1: Front Seat Back Attaching Screws

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SEAT BACK

2 - ATTACHING SCREWS

1. Position seat back frame on seat cushion assembly.
2. Start the screws (2) attaching recliner to seat back cushion frame (1) on both sides.
3. Vehicle with Seat Airbag and/or Heated Seat System, connect electrical connector(s) under the seat cushion. Using wire ties secure the wire harness to the seat cushion frame.

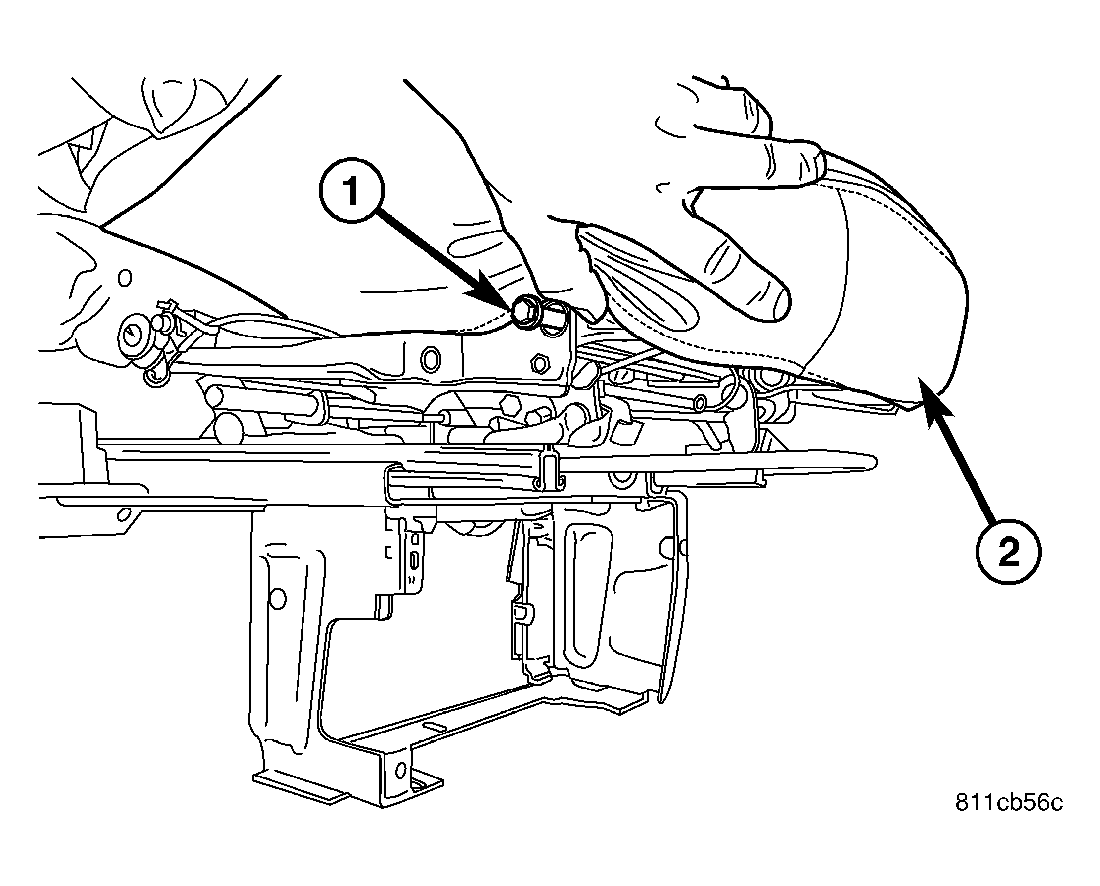

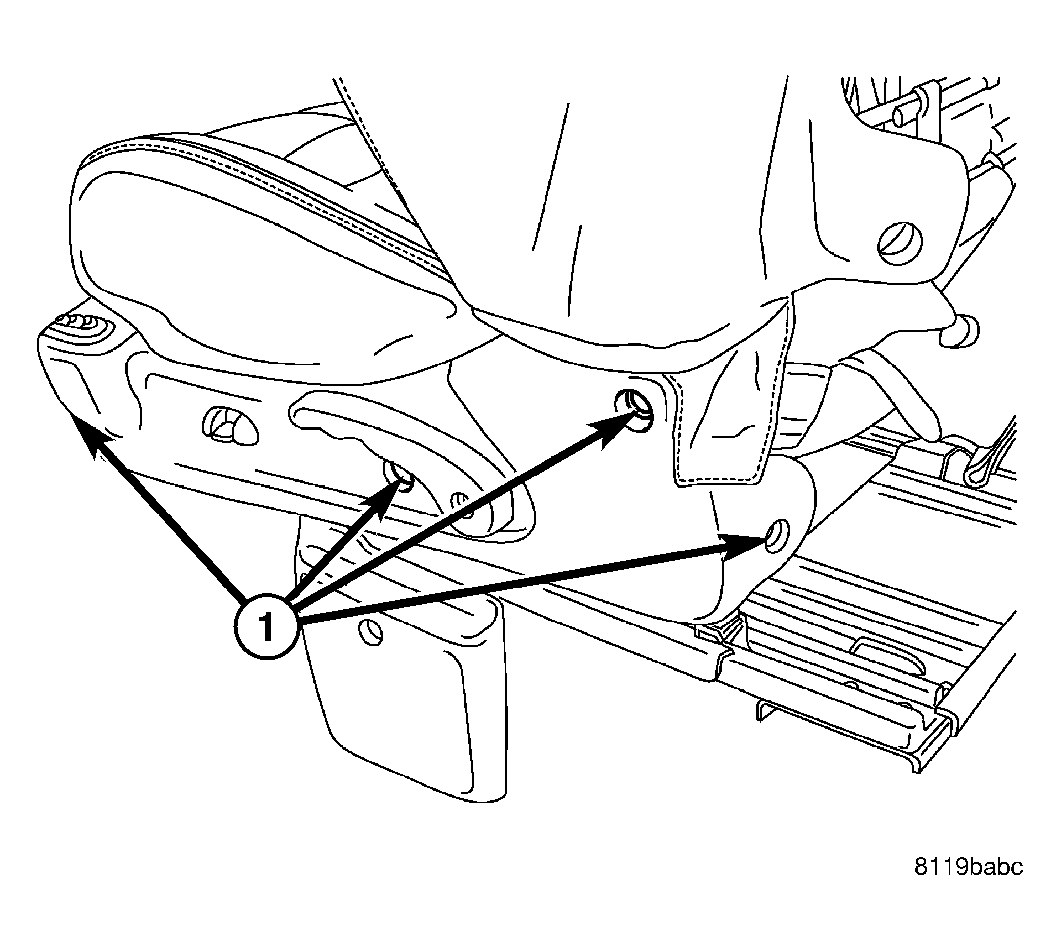

   Fig 2: Front Side Attaching Screw Front Cushion

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - FRONT SIDE AND REAR ATTACHING SCREW

   2 - FRONT SEAT CUSHION

4. Install two front side screws (1) to front seat cushion (2).
   Fig 3: Rear Attaching Screw - Front Seat Cushion

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - REAR ATTACHING SCREW

   2 - FRONT SEAT CUSHION

5. Install two rear side screws (1) to front seat cushion (2).
6. Tighten screws attaching recliner to seat cushion frame. Tighten screws to 12 N.m (9 ft. lbs.).

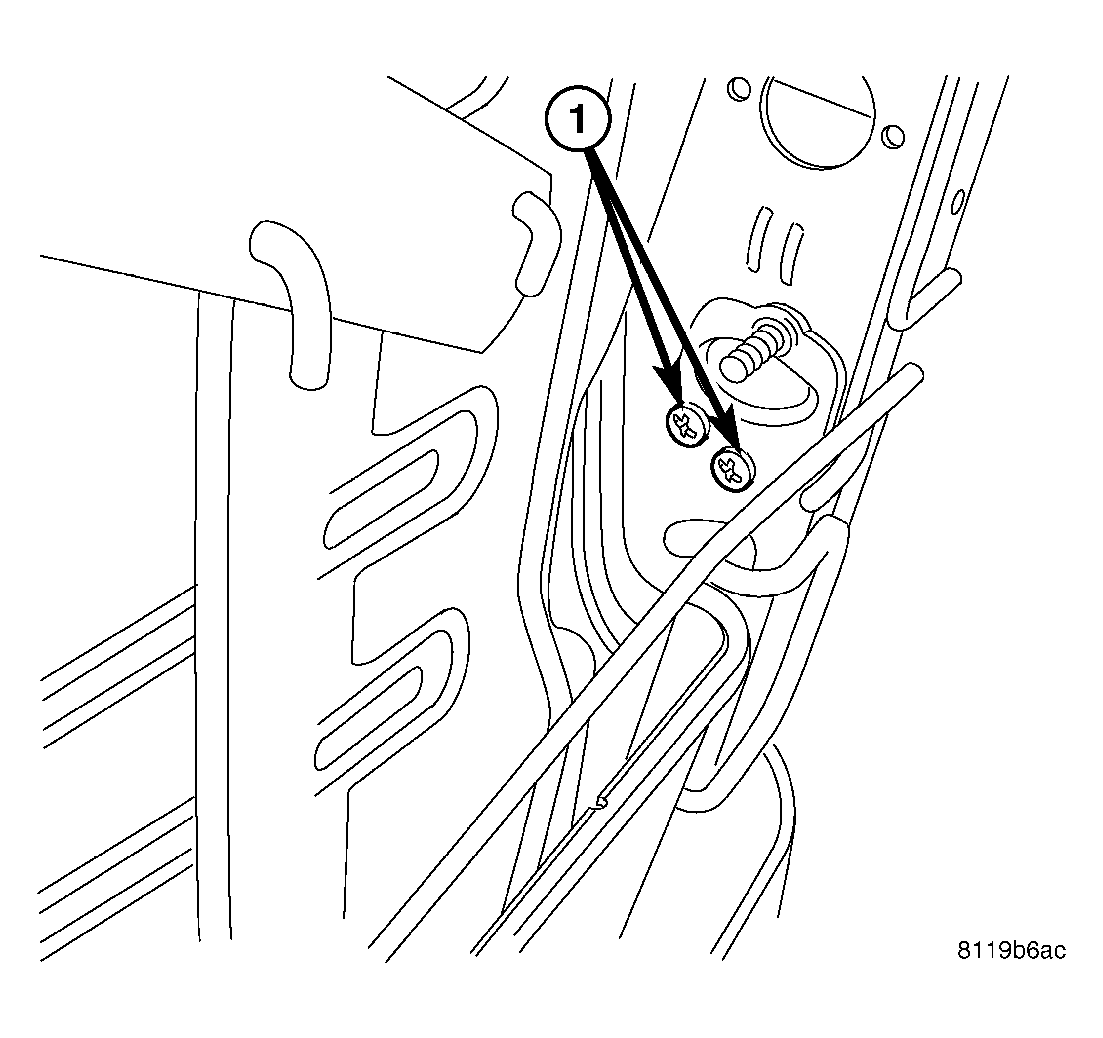

   Fig 4: Lumbar Bracket Attaching Screws

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - LUMBAR BRACKET ATTACHING SCREWS

7. Place lumbar actuator into position, and install the two attaching lumbar actuator screws (1) from the inner seat back frame.

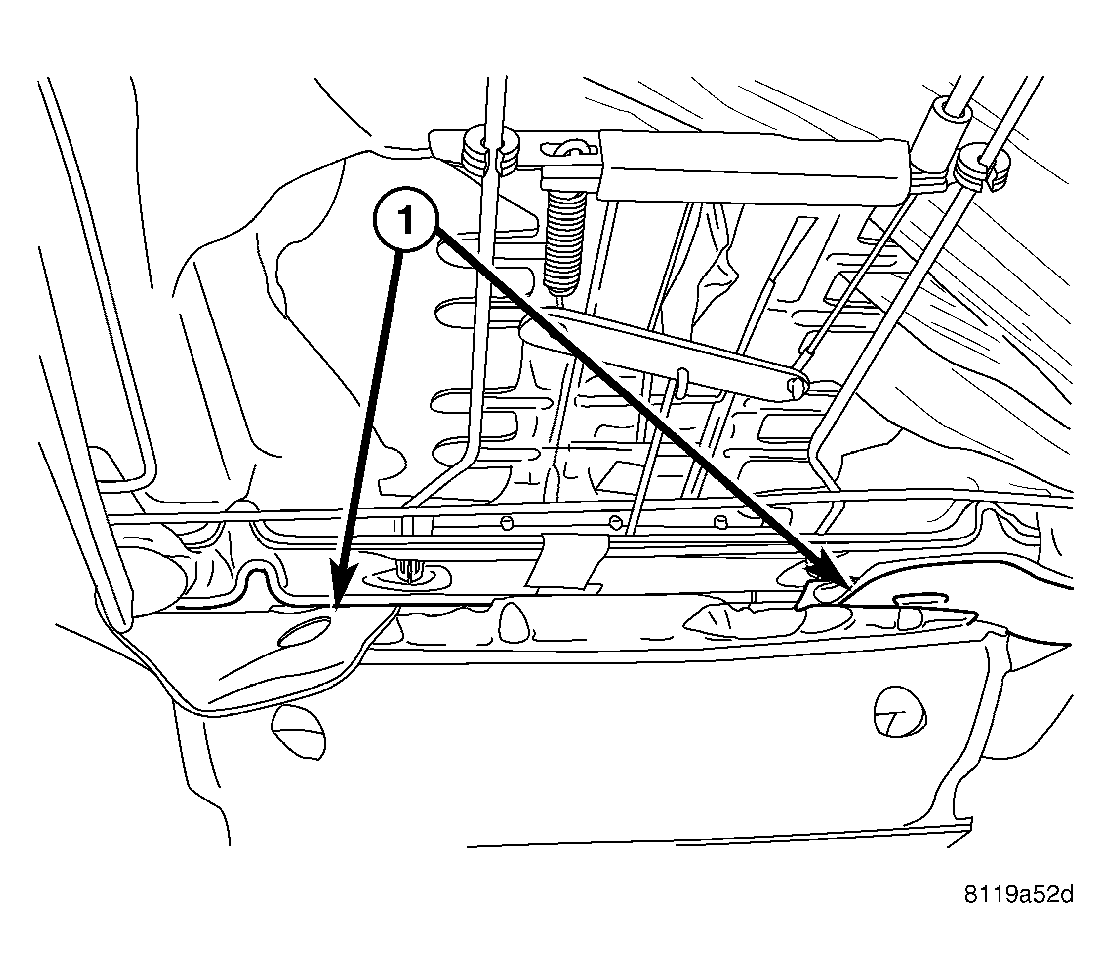

   Fig 5: Front Seat Back Lower J-Straps

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - LOWER J-STRAPS

8. Pull seat cushion and seat cover into position. Engage the lower seat cover J-straps (1).

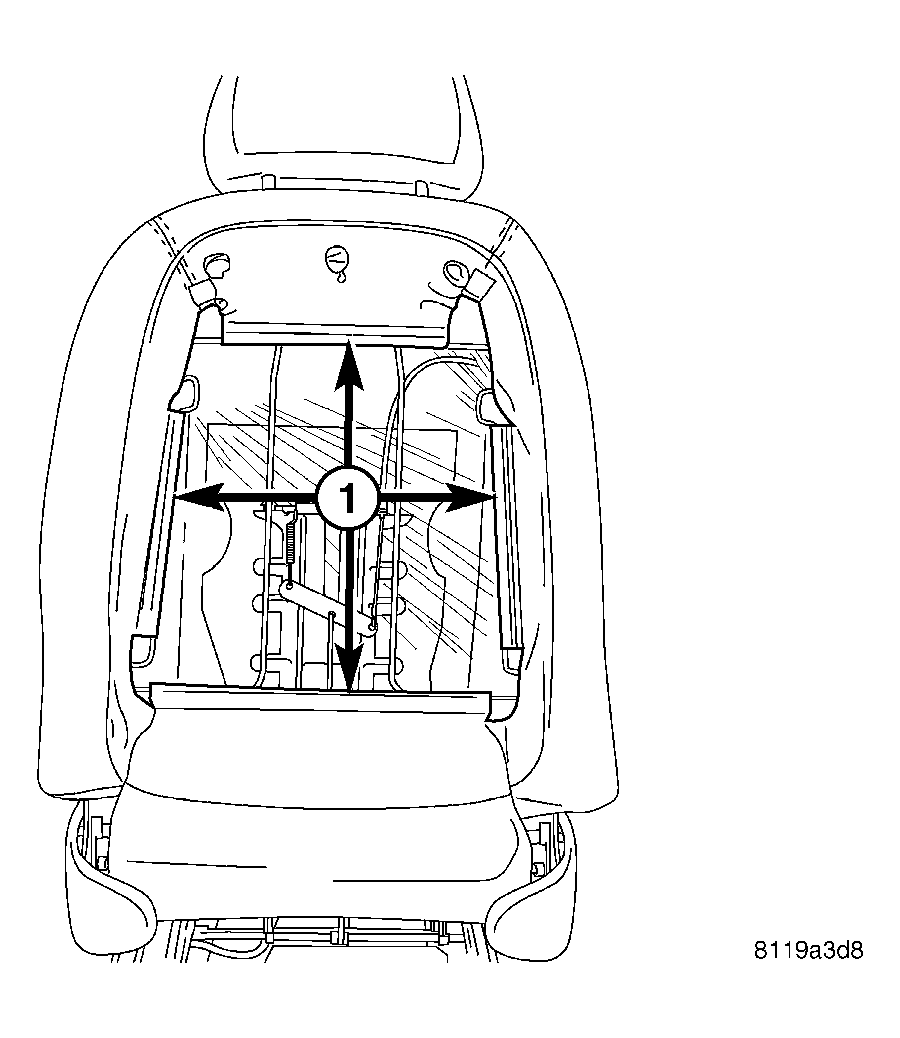

   Fig 6: Front Seat Cover J-Straps

   Courtesy of DAIMLERCHRYSLER CORP.

   1- J-STRAPS

9. Engage J-straps (1).

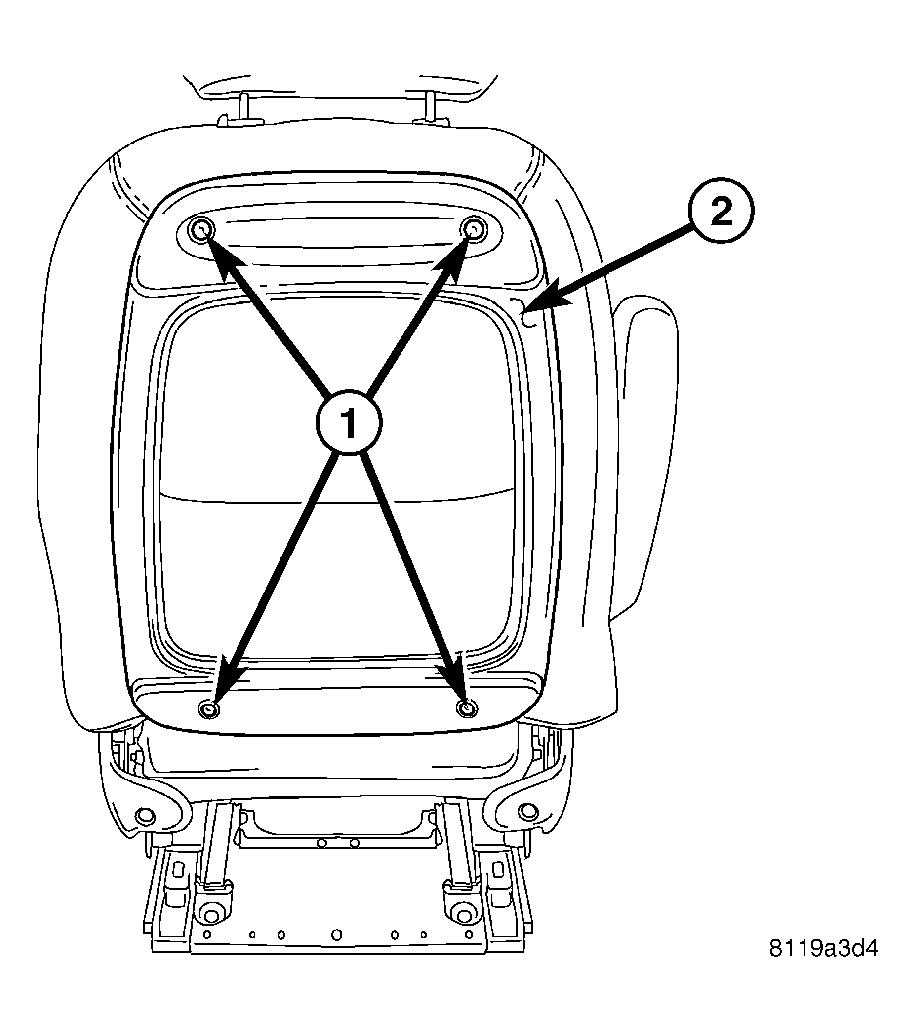

   Fig 7: Front Seat Back Panel

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - ATTACHING SCREWS

   2 - FRONT SEAT BACK PANEL

10. Install front seat back panel (2).

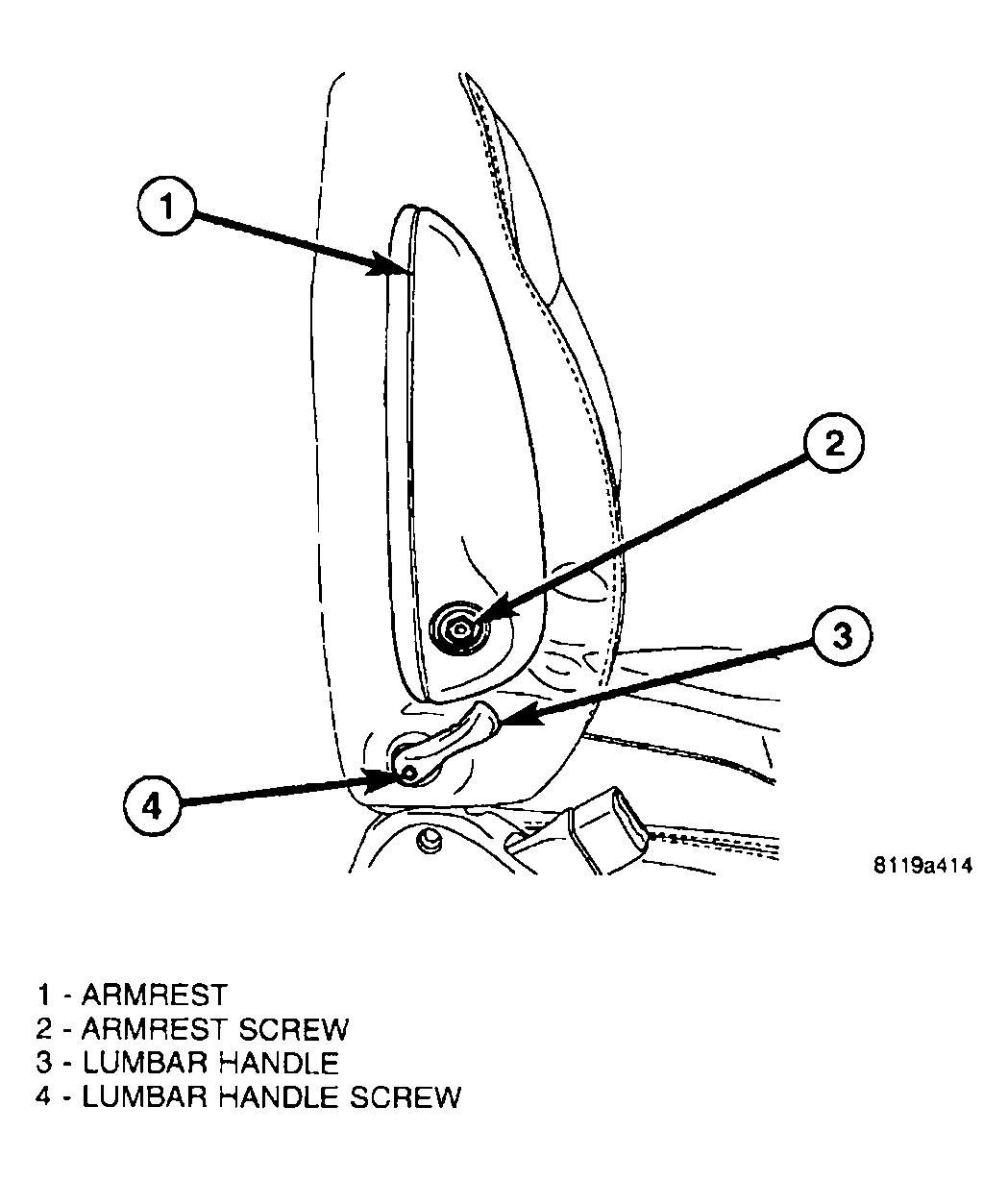

    Fig 8: Armrest Screw

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - ARMREST

    2 - ARMREST SCREW

    3 - LUMBAR HANDLE

    4 - LUMBAR HANDLE SCREW

11. Install seat armrest (1) and lumbar handle (3) if equipped.

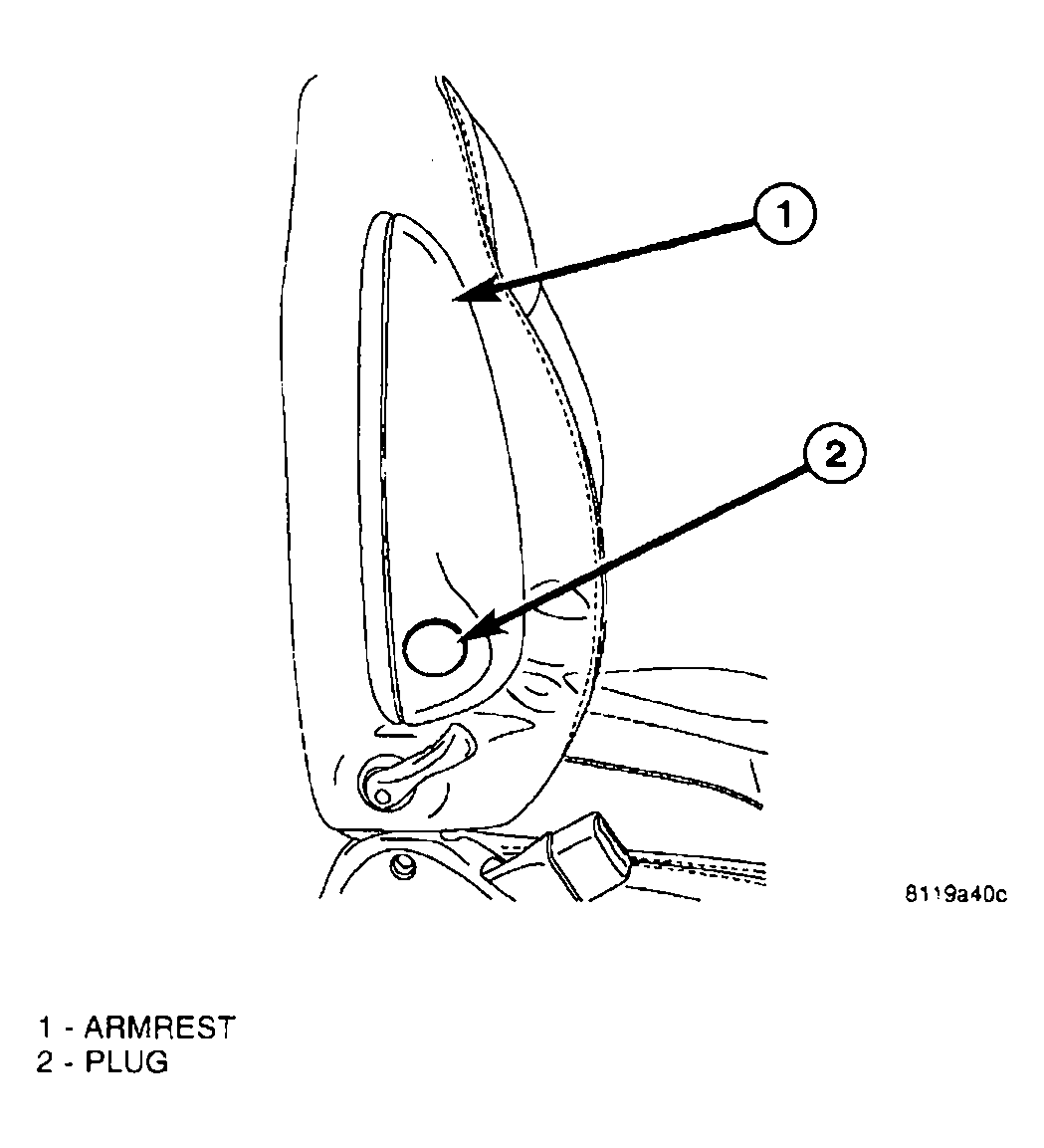

    Fig 9: Armrest Plug

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - ARMREST

    2 - PLUG

12. Install seat armrest plug (2).

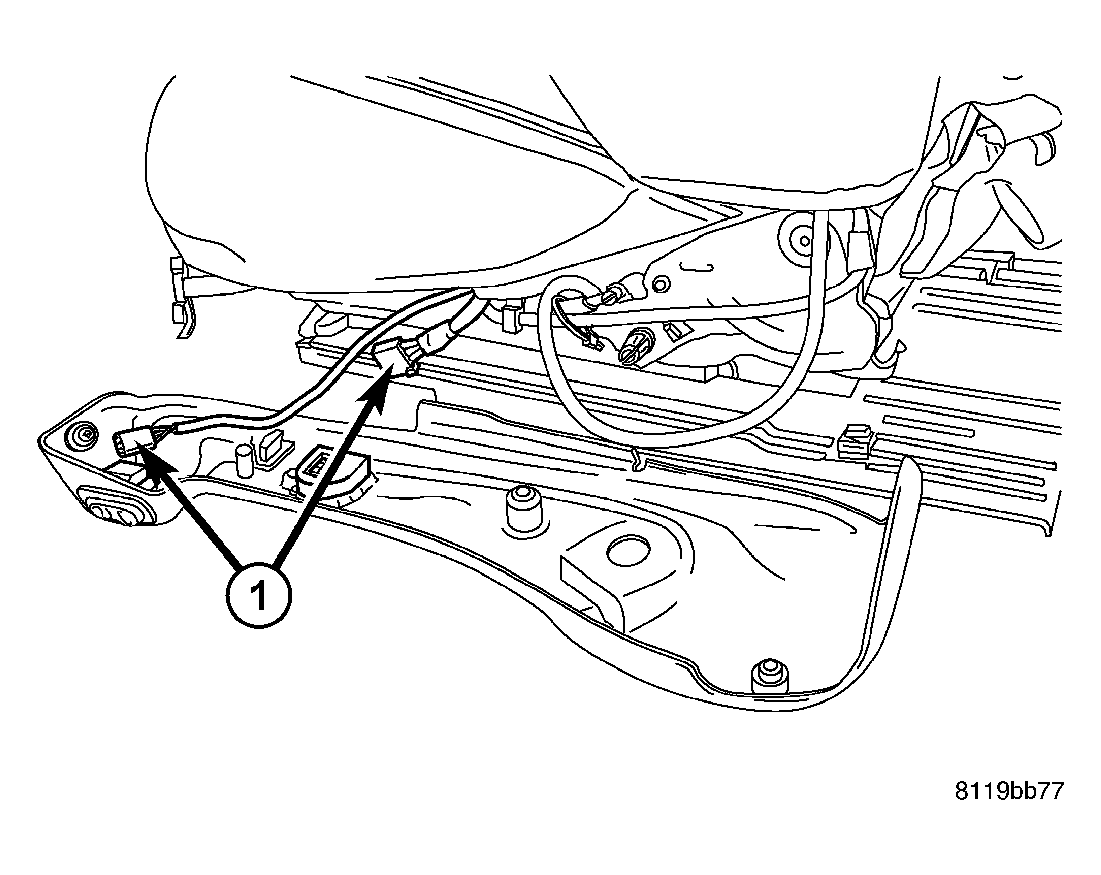

    Fig 10: Seat Side Shield Wire Connectors

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - WIRE CONNECTORS

13. Connect wire connectors (1), if equipped.
    Fig 11: Front Seat Cushion Shield - Outboard

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - ATTACHING SCREWS

14. Install front seat cushion shield and seat back recliner handle/fold flat handle.

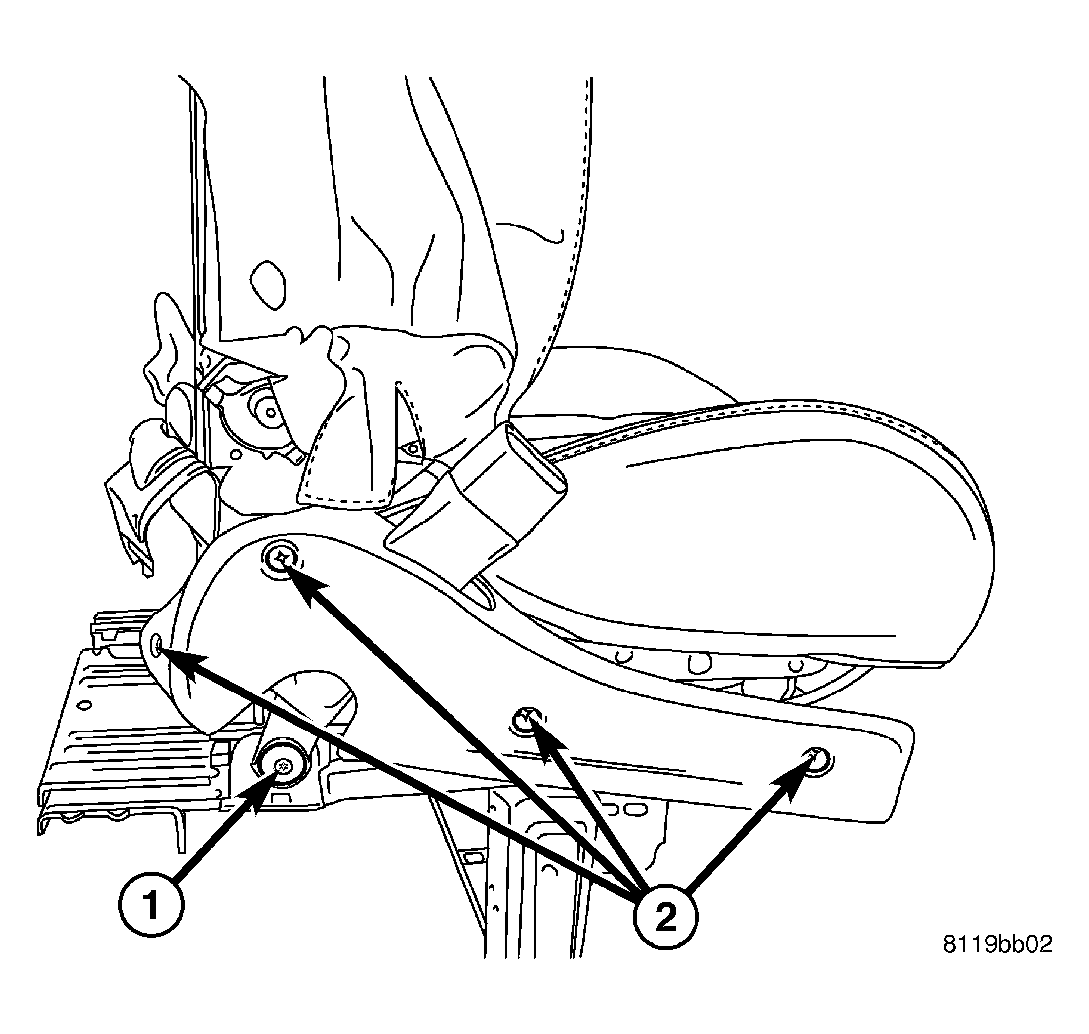

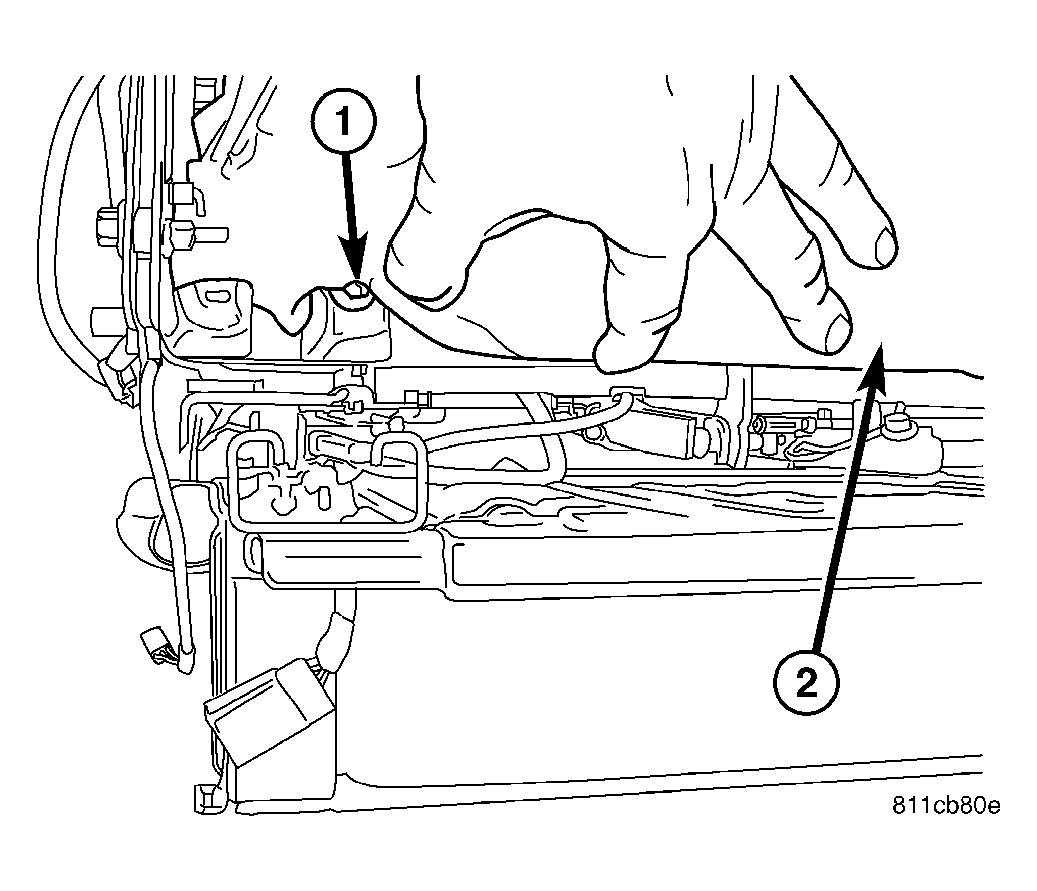

    Fig 12: Front Seat Cushion Shield Mounting Screws - Inboard

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - FRONT INNER SEAT BELT ATTACHING SCREW

    2 - SHIELD ATTACHING SCREWS

15. Install the inner seat cushion shield and inner seat belt. Tighten seat belt anchor bolt to 40 N.m (30 ft. lbs.).

    Install seat in vehicle.
