Scuff Plate-Liftgate Sill: Removal

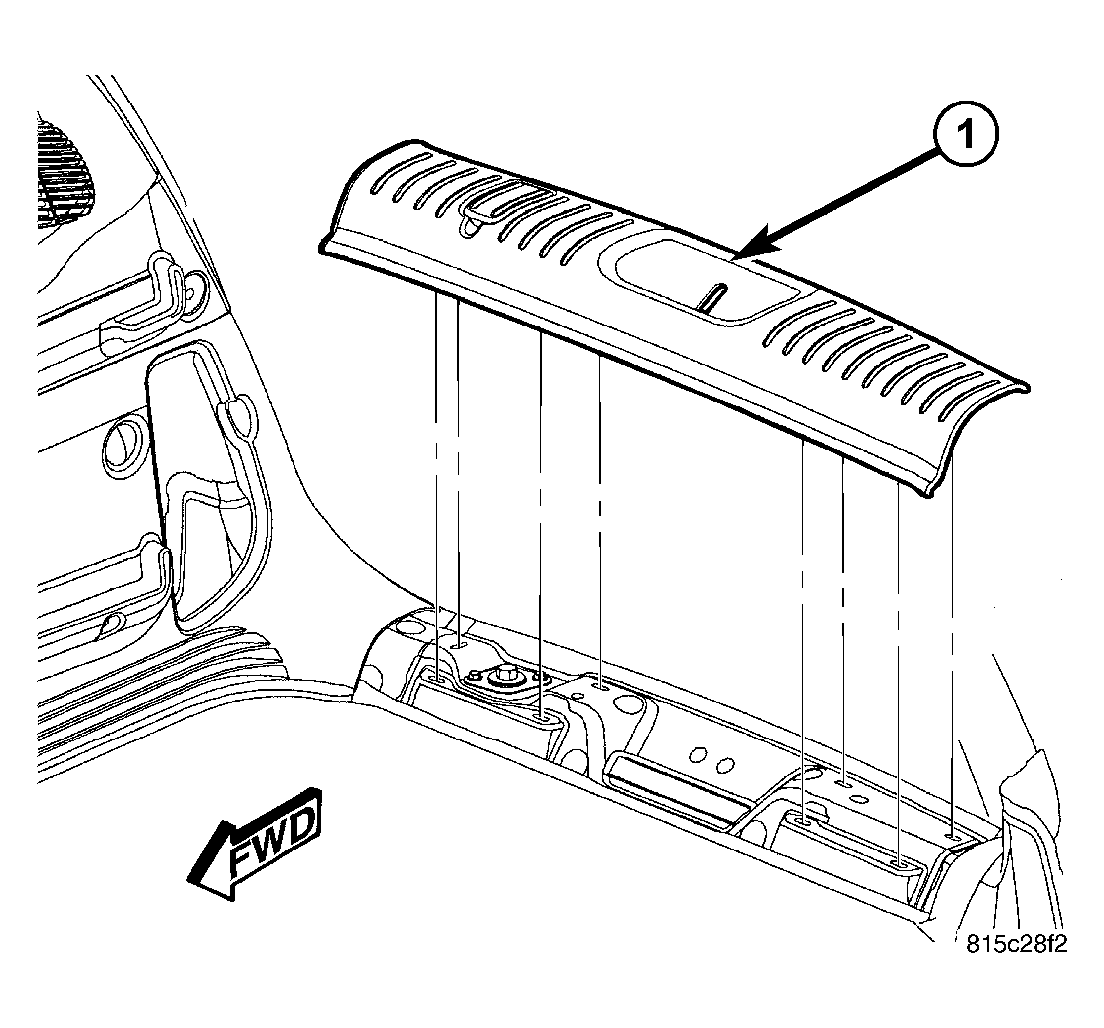

Fig 1: SCUFF PLATE (LIFTGATE)
GC0043096Courtesy of DAIMLERCHRYSLER CORP.
  1. Open liftgate.
  2. Using trimstick. Carefully pry up scuff plate (1).
