Scuff Plate-DECKLID Sill: Removal

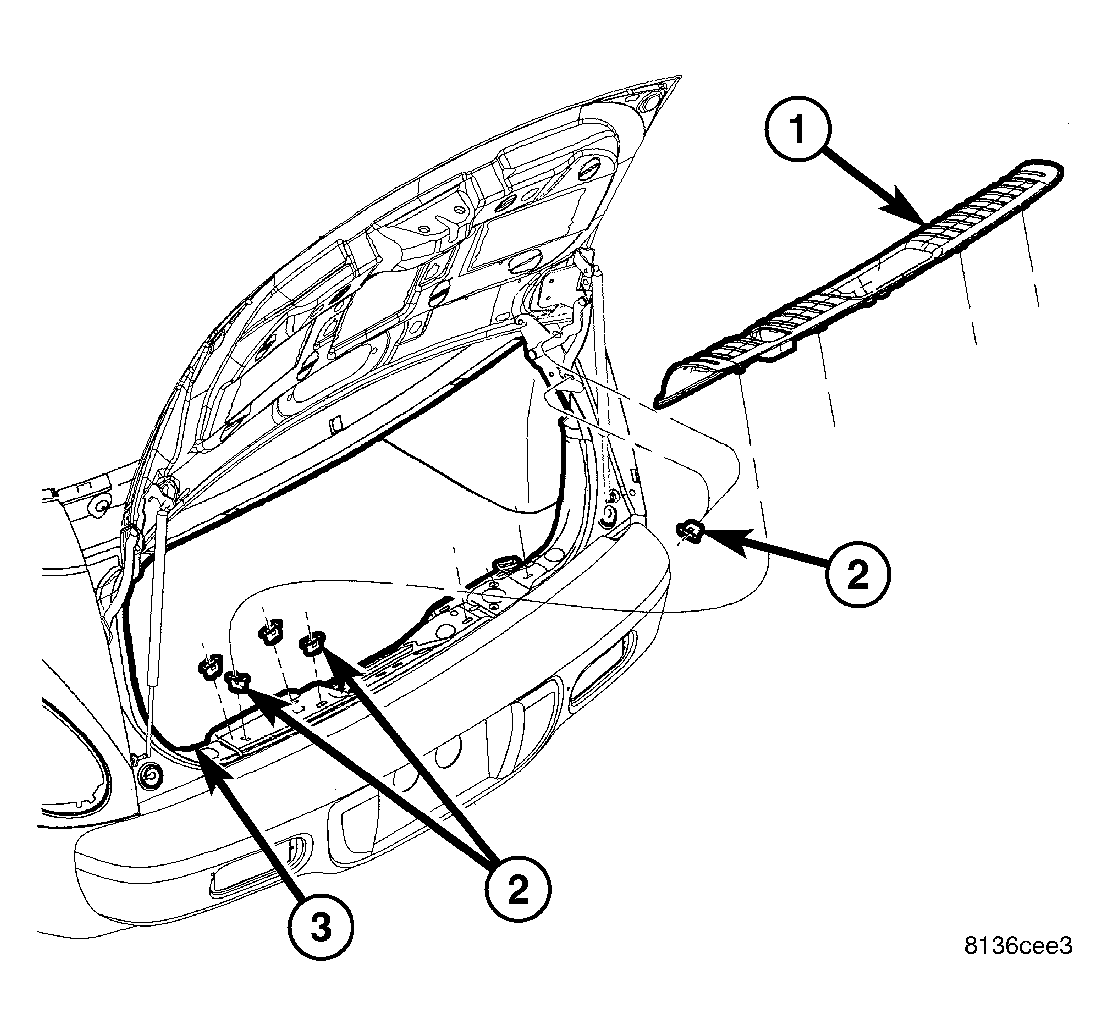

Fig 1: Decklid Sill Scuff Plate - PT27
GC0022400Courtesy of DAIMLERCHRYSLER CORP.
1 - DECKLID SILL SCUFF PLATE
2 - PLASTIC NUT(S)
3 - DECKLID OPENING
  1. Open decklid to gain access to sill trim.
  2. Remove decklid sill scuff plate cover.
  3. Remove decklid sill trim from vehicle.
