Lower Quarter Trim Panel: Removal

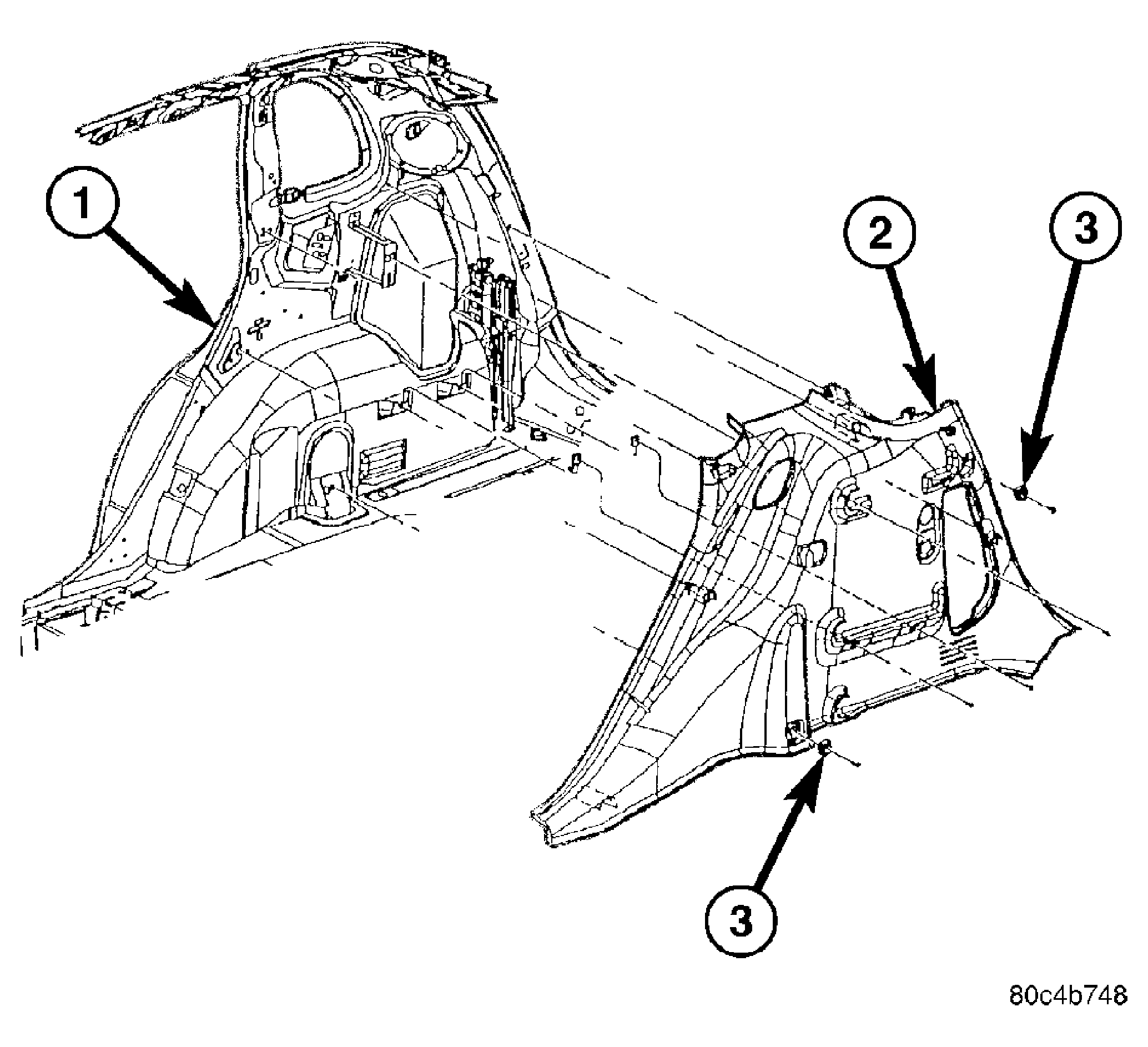

Fig 1: Lower Quarter Trim Panel
GC0022416Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR QUARTER PANEL
2 - REAR QUARTER TRIM PANEL
3 - CARGO TIE DOWN QUARTER TRIM LOWER LOOP
  1. Remove C-pillar and D-pillar trim.
  2. Remove liftgate sill scuff plate.
  3. Remove cargo tie down loops and quarter trim attaching screws.
  4. Disengage wiring connector for cargo lamp and power outlet, if equipped.
  5. Remove lower quarter trim from vehicle.
