Center Console: Removal

  1. Block the tire and wheels so the vehicle does not move once the vehicle parking brake lever is released.
  2. Remove the transmission shift knob if vehicle is equipped with a manual transmission.
  3. Place parking brake lever in full OFF position.
  4. Remove screws attaching center console (1).
  5. Remove rear switch panel from center console (1).
  6. Working through switch opening, grasp a parking brake cable or equalizer and pull back approximately 25.4 mm (1 in.).
  7. While holding the cable or equalizer, pull the parking brake handle to the full upright position.
  8. Raise console to access rear window switch and disconnect the wire connector.
  9. Lift console to access power outlet wire connector and disconnect.
  10. Lift console upward over gear selector and park brake handle.
  11. Remove console from vehicle.

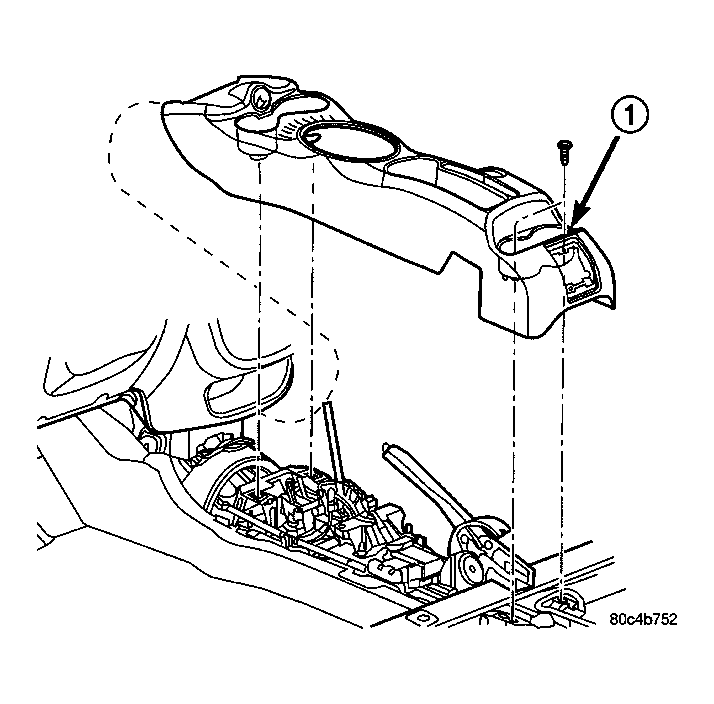

    Fig 1: Removing & Installing Center Console
    G00231991Courtesy of DAIMLERCHRYSLER CORP.
