B-Pillar Trim: Removal

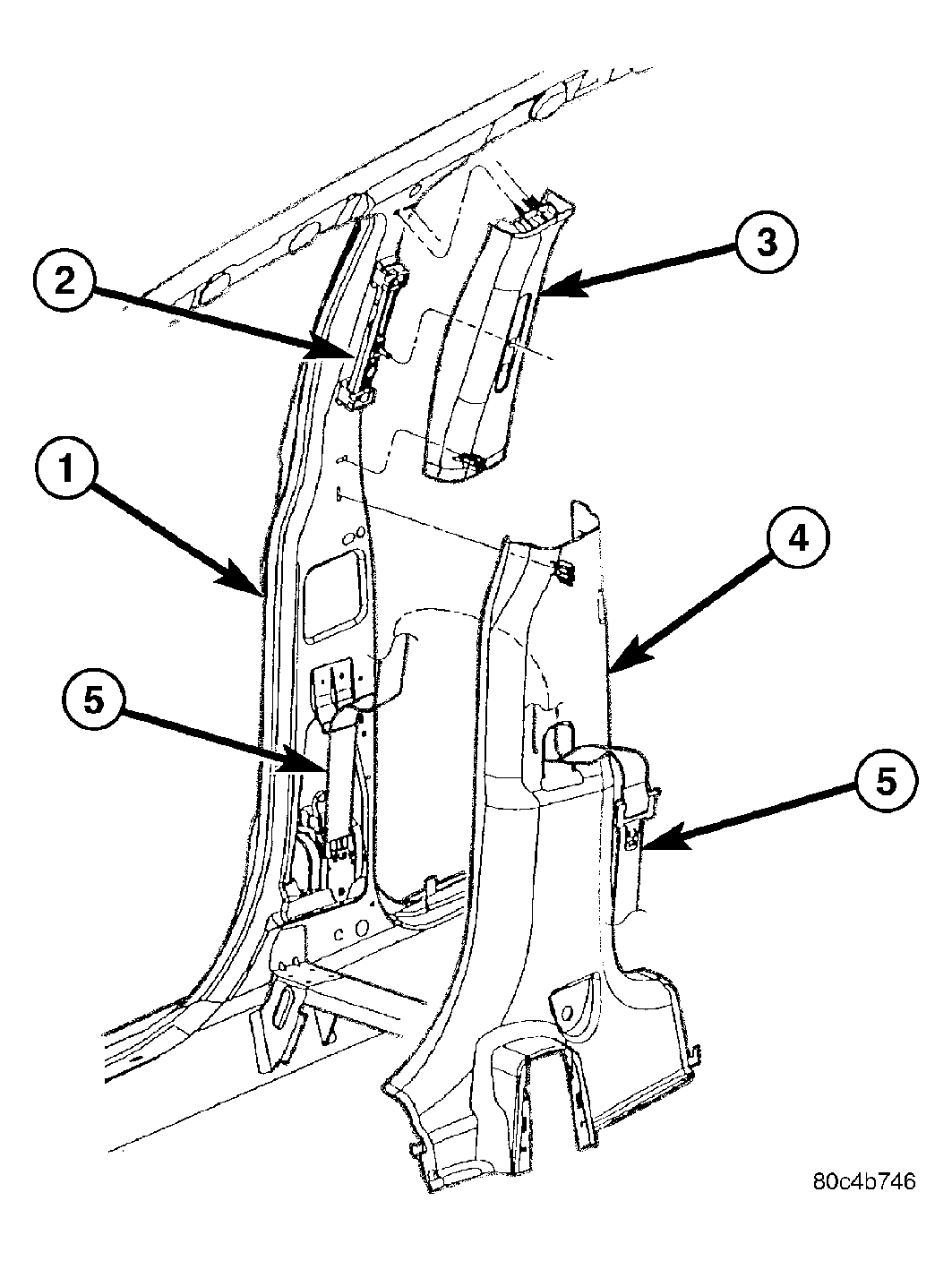

| 1 - B-PILLAR |
| 2 - SEAT BELT ADJUSTER |
| 3 - B-PILLAR UPPER TRIM COVER |
| 4 - B-PILLAR LOWER TRIM COVER |
| 5 - SEAT BELT ASSEMBLY |
- Remove front and rear door sill trim
- Remove shoulder belt height control knob.
- Remove bolt attaching turning loop to belt adjuster.
- Remove bolt attaching lower seat belt anchor to floor pan kick-up.
- Remove access cover from B-pillar trim.
- Disengage clips attaching trim to B-pillar (1).
- Feed seat belt turning loop and seat belt (5) through trim panel.
- Remove lower B-pillar trim (4) from vehicle.
- Remove upper B-pillar trim (3).
