Interior & Exterior (1 Of 2): Hood: Silencer-Hood: Installation

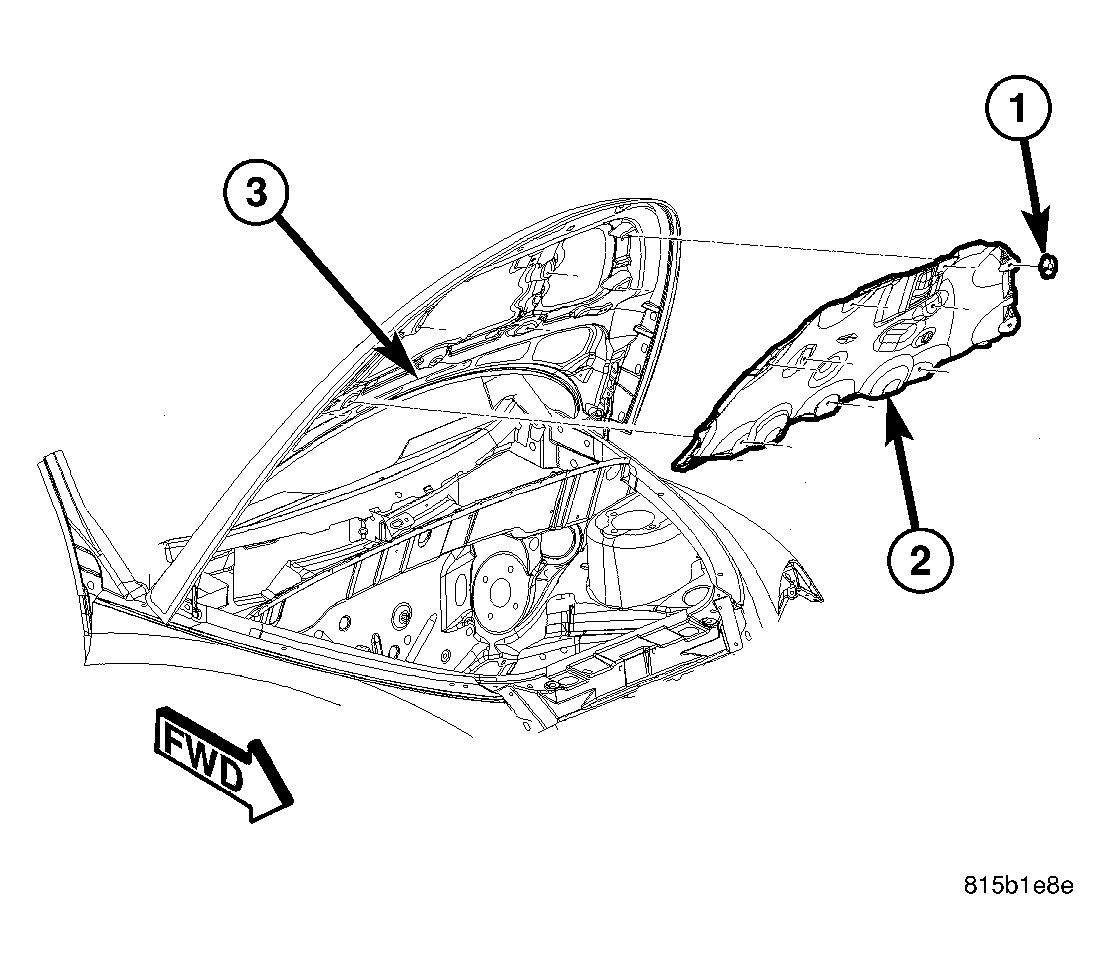

Fig 1: Silencer-Hood

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the silencer (2) to the hood (3).
2. Install ten new retaining clips (1) to secure the silencer to hood.
3. Close the hood.
