Interior & Exterior (1 Of 2): Hood: Rod-Prop: Installation

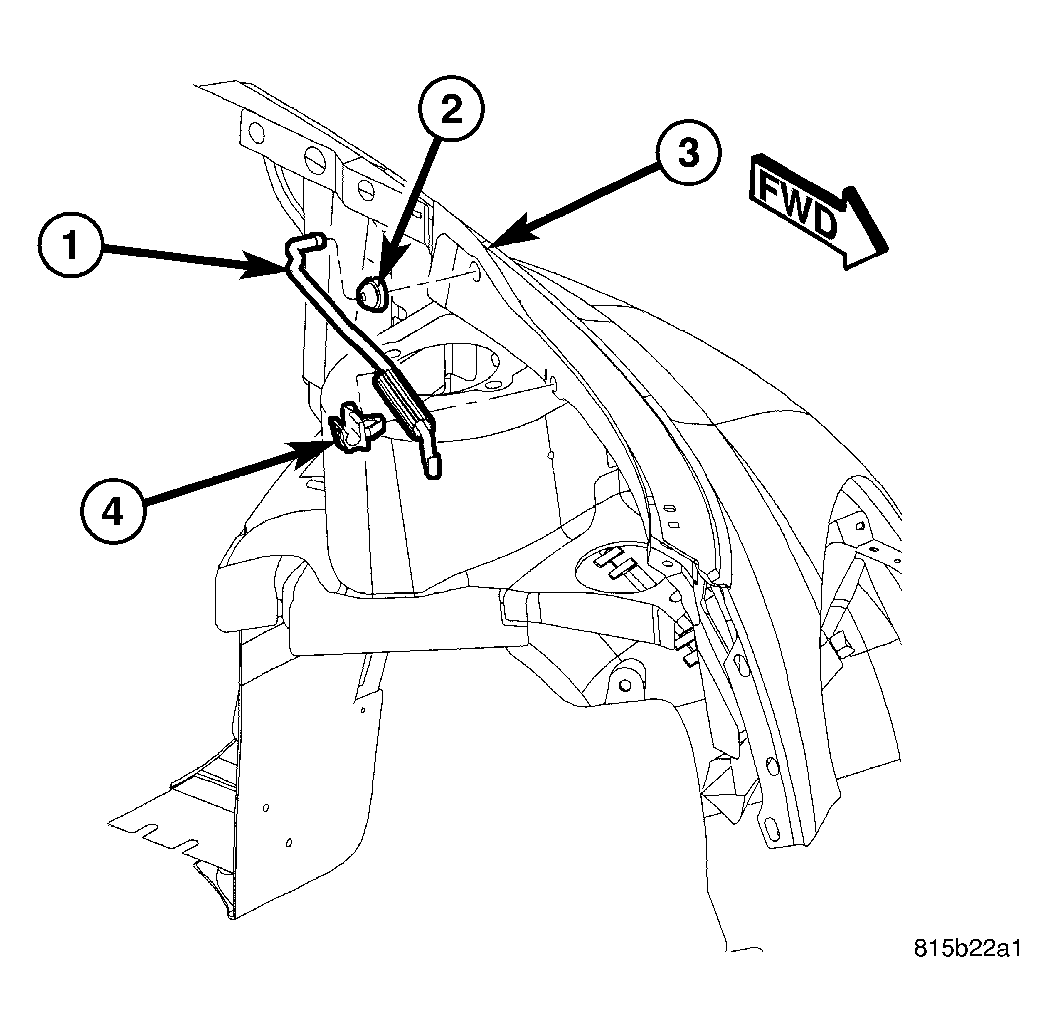

Fig 1: Rod-Hood Prop

Courtesy of DAIMLERCHRYSLER CORP.

1. If removed, install a new bushing (2) and retaining clip (4) into the fender (3).
2. Engage the hood prop rod (1) into the bushing. Make sure the prop rod is fully engage to the bushing.
3. Install the hood prop rod into the retaining clip and close the hood.
