Front Door Applique: Removal

Fig 1: Glass Run Weatherstrip

GC0022290

Courtesy of DAIMLERCHRYSLER CORP.

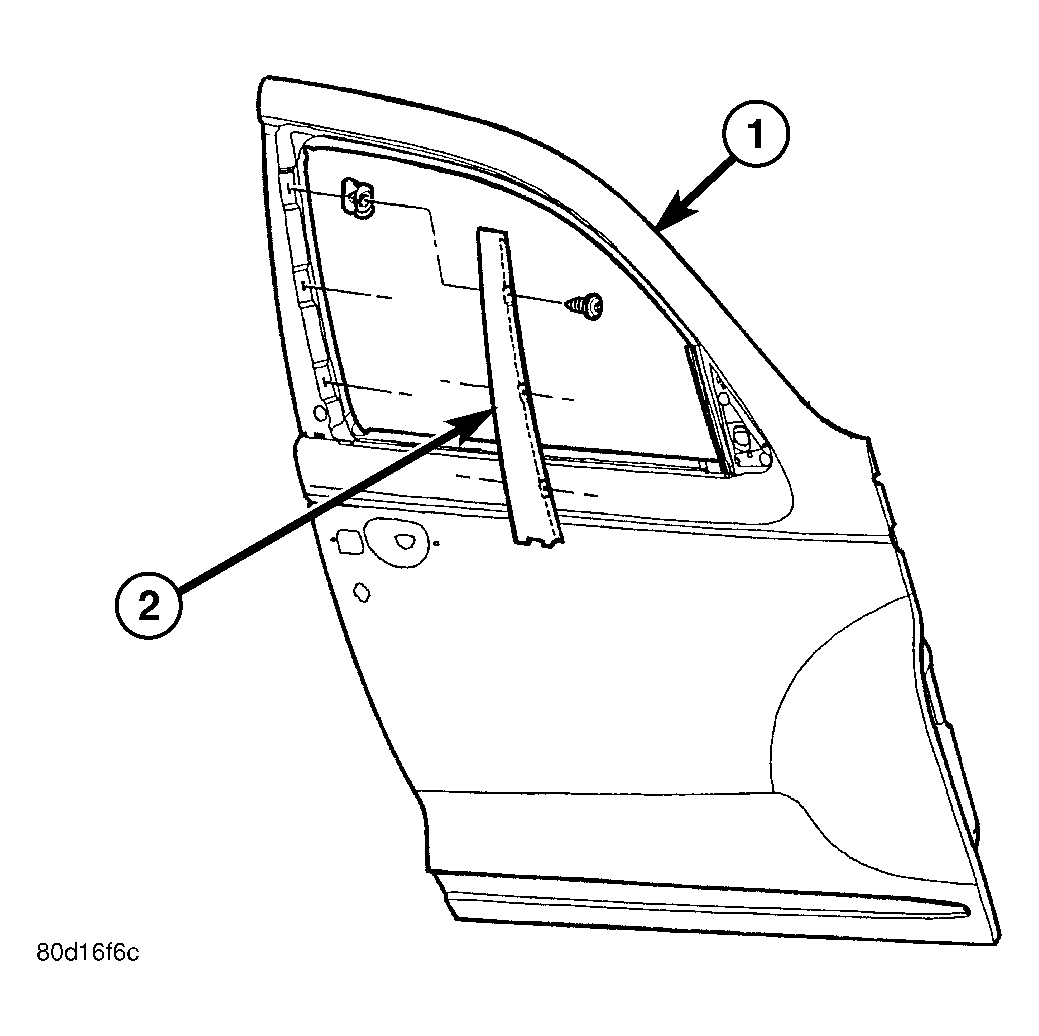

1 - FRONT DOOR

2 - FRONT DOOR OUTSIDE BELT WEATHERSTRIP

Open front door (1).
Remove screw attaching outside belt weatherstrip (2) and remove from door.

Fig 2: Front Door Outside Belt Weatherstrip
Courtesy of DAIMLERCHRYSLER CORP.

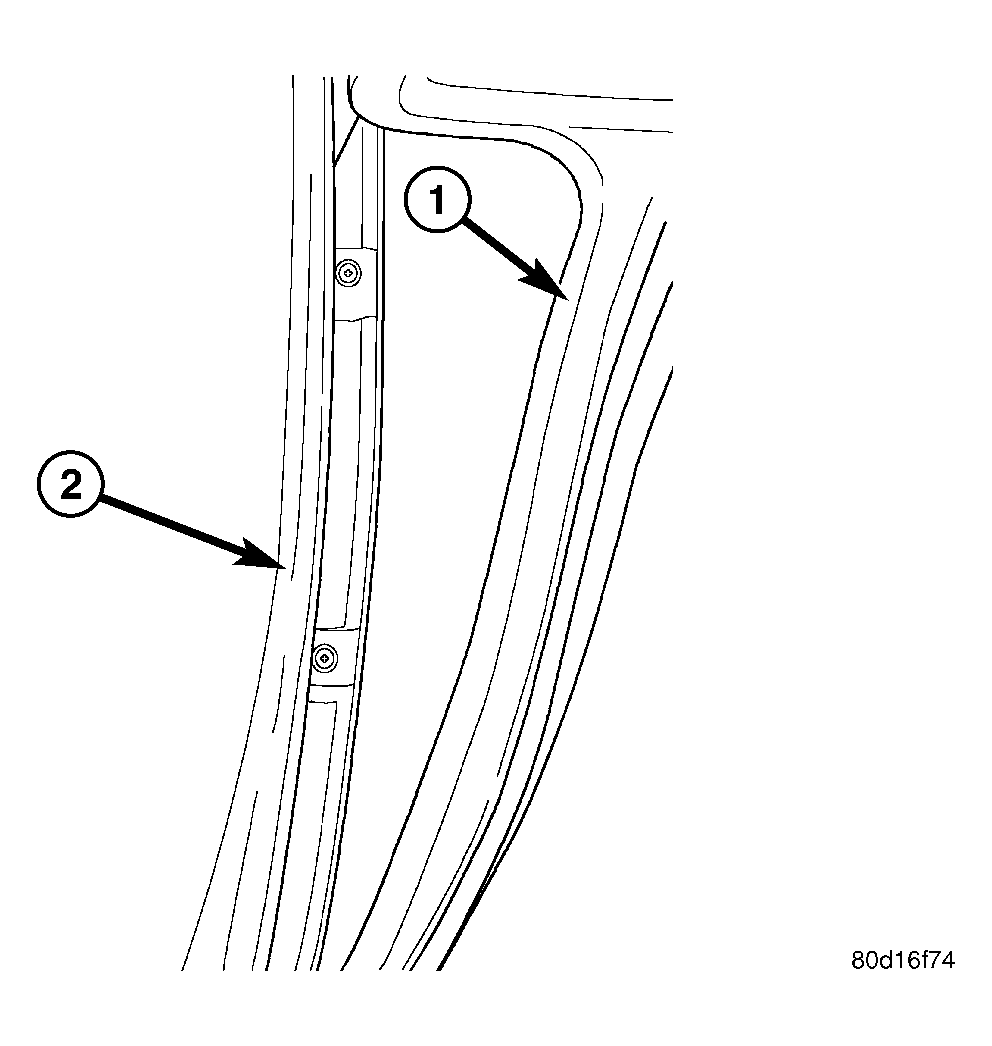

1 - GLASS RUN WEATHERSTRIP

2 - UPPER DOOR FRAME
Remove glass run weatherstrip (1) as necessary to access the three screws attaching applique.

Fig 3: Front Door B-Pillar Applique
Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT DOOR

2 - FRONT DOOR B-PILLAR APPLIQUE
Remove the three screws attaching applique and remove applique from door.
