Support Rod-Gas: Removal

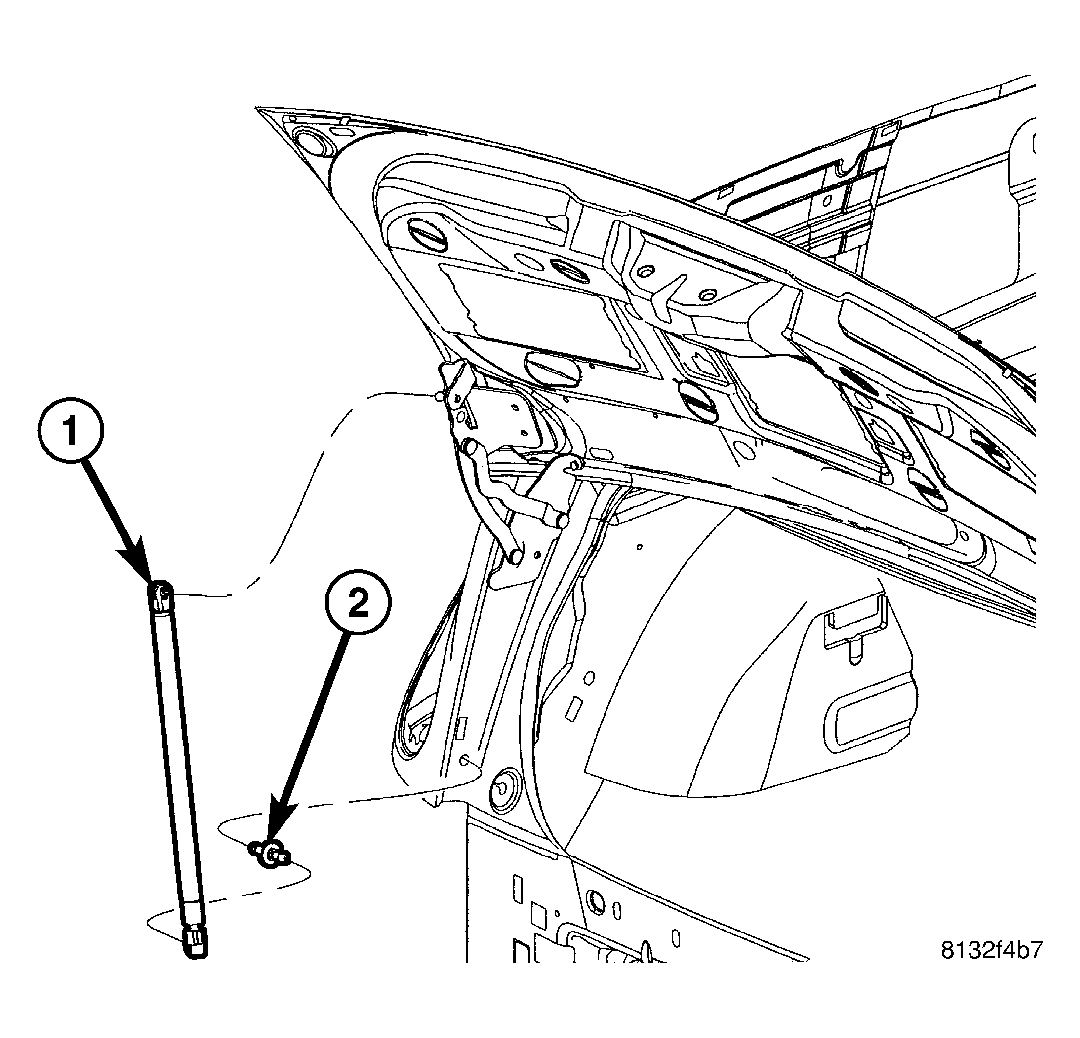

Fig 1: Decklid Gas Prop Rod
GC0022284Courtesy of DAIMLERCHRYSLER CORP.
  1. Release the decklid latch and open the decklid.
  2. Support decklid with a suitable lifting device and disengage the clips that secure the gas support rods (1) to the mounting studs (2) located on the decklid and the body and remove the support rods.
