Circuit Schematic

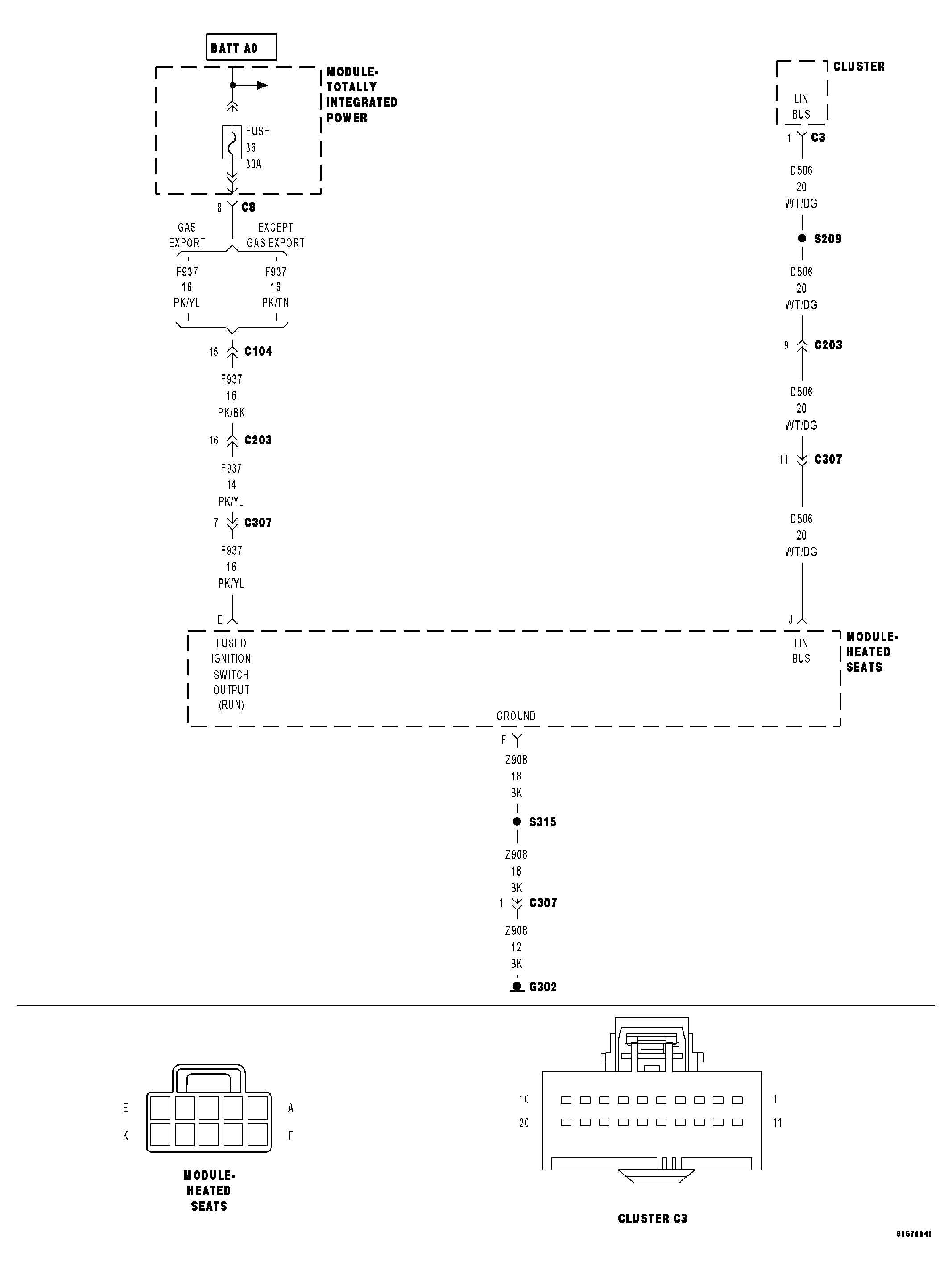

Fig 1: Heated Seats Control Module Circuit Schematic

GC0043603

Courtesy of DAIMLERCHRYSLER CORP.
