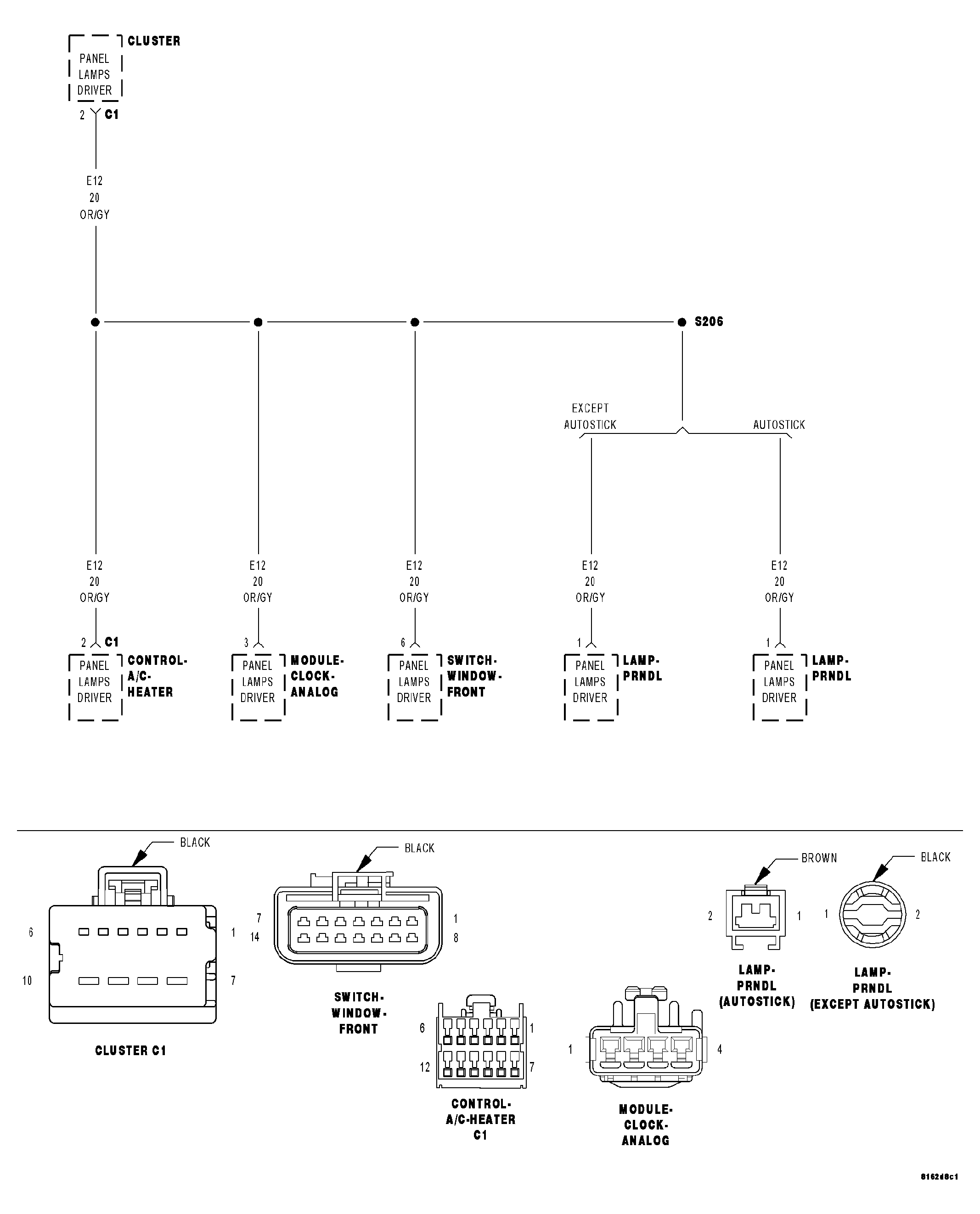

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Cluster - Electrical Diagnostics >> Electrical Diagnostics >> DTC Troubleshooting >> B1612-Panel Illumination Control Circuit >> Circuit Schematic
