Domestic Cluster/CCN

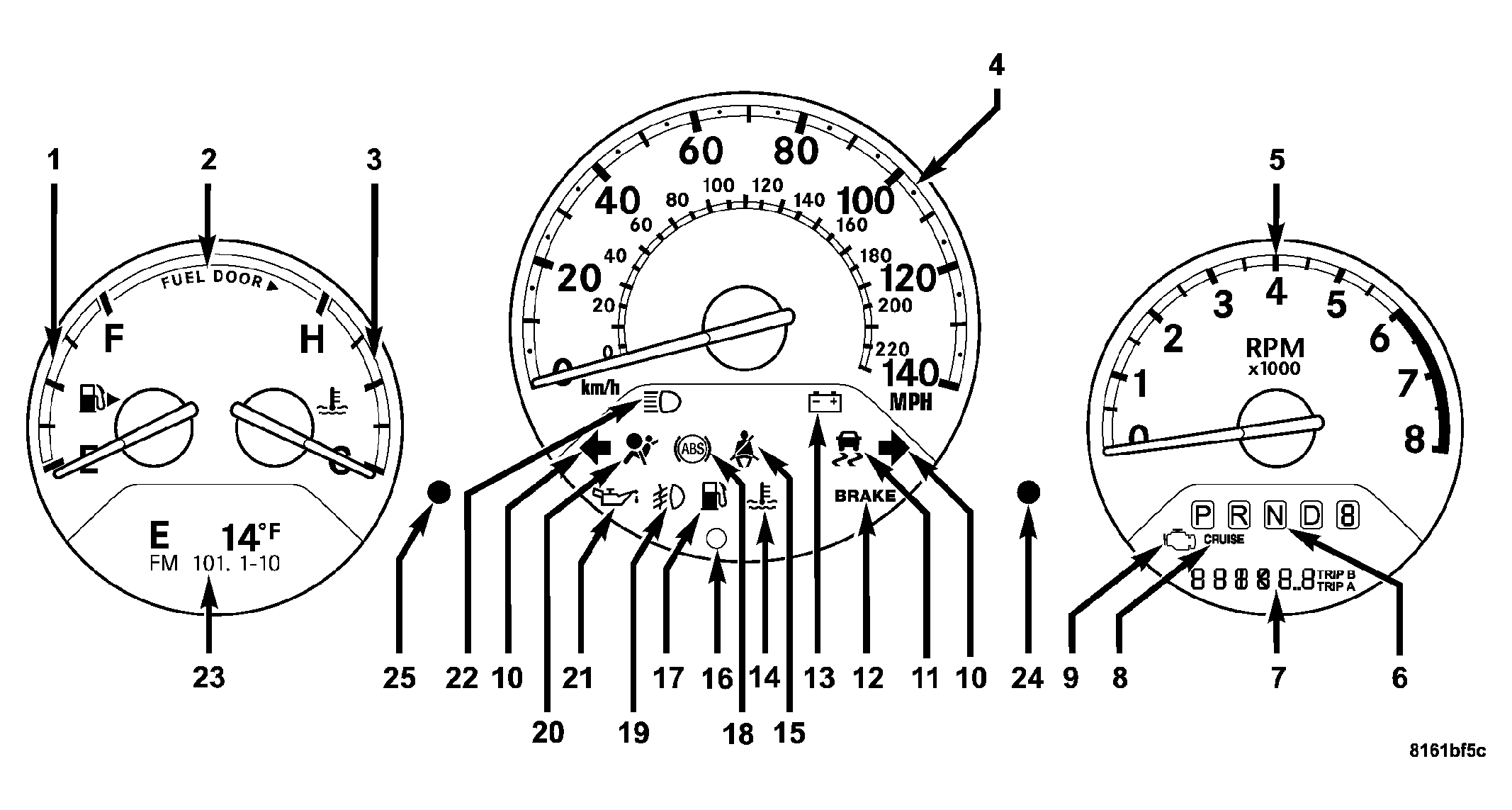

The Domestic CCN includes the following analog gauges:
- Engine Temperature Gauge (3)
- Fuel Gauge (1)
- Speedometer (4)
- Tachometer (5)
The CCN includes the following VFD units:
- Gear Selector/Odometer/Trip Odometer (6 and 7)
- Electronic Vehicle Information Center (EVIC) Display {23}
The CCN includes provisions for the following indicators:
- Airbag Warning Indicator (20)
- Antilock Brake System (ABS) Warning Indicator (18)
- Park Brake/Brake Indicator (12)
- Charging System Warning Indicator (13)
- Cruise Indicator (8)
- Electronic Vehicle Information Center (EVIC) Display Step Button {25}
- Fog Lamp Indicator (19)
- Fuel Door Location (2)
- High Beam Indicator (22)
- High Engine Temperature Warning Indicator (14)
- Low Fuel Indicator (17)
- Malfunction Indicator Lamp (MIL) (9)
- Odometer/Trip Odometer A/B Select Button (24)
- Oil Pressure Warning Indicator (21)
- Seatbelt Indicator (15)
- Security Indicator (16)
- Traction Control Indicator (11)
- Turn Signal (Right and Left) Indicators (10)
Several versions of the CCN are offered. These versions accommodate all of the variations of optional equipment and regulatory requirements for the various markets in which the vehicle will be offered. The microprocessor-based CCN utilizes integrated circuitry and information carried on the Controller Area Network (CAN) data bus along with several hard wired analog and multiplexed inputs to monitor sensors and switches throughout the vehicle. In response to those inputs, the internal circuitry and programming of the CCN allow it to control and integrate many electronic functions and features of the vehicle through both hard wired outputs and the transmission of electronic message outputs to other electronic modules in the vehicle over the CAN/LIN data bus (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/COMMUNICATION - DESCRIPTION) .
