BUX Gas Cluster/CCN

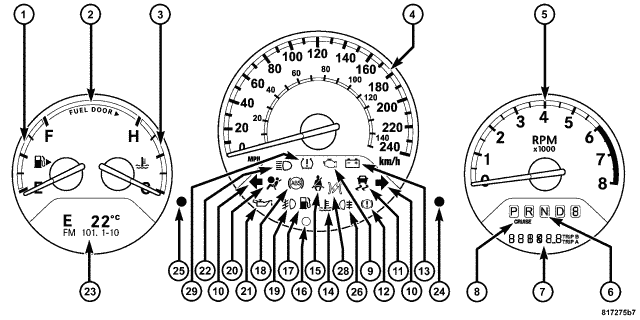

Fig 1: View Of BUX Gas Cluster /Cab Compartment Node (CCN)

Courtesy of DAIMLERCHRYSLER CORP.

The BUX Gas CCN is relatively the same as domestic for the exception of:

1. Brake Fail/Park Brake Indicator (12)
2. Electronic Throttle Control (ETC) Indicator (28)
3. Rear Fog lamps Indicator (26)
4. Speedometer (4) - Kilometers per hour (km/h)
