CV Boot - Outer: Removal

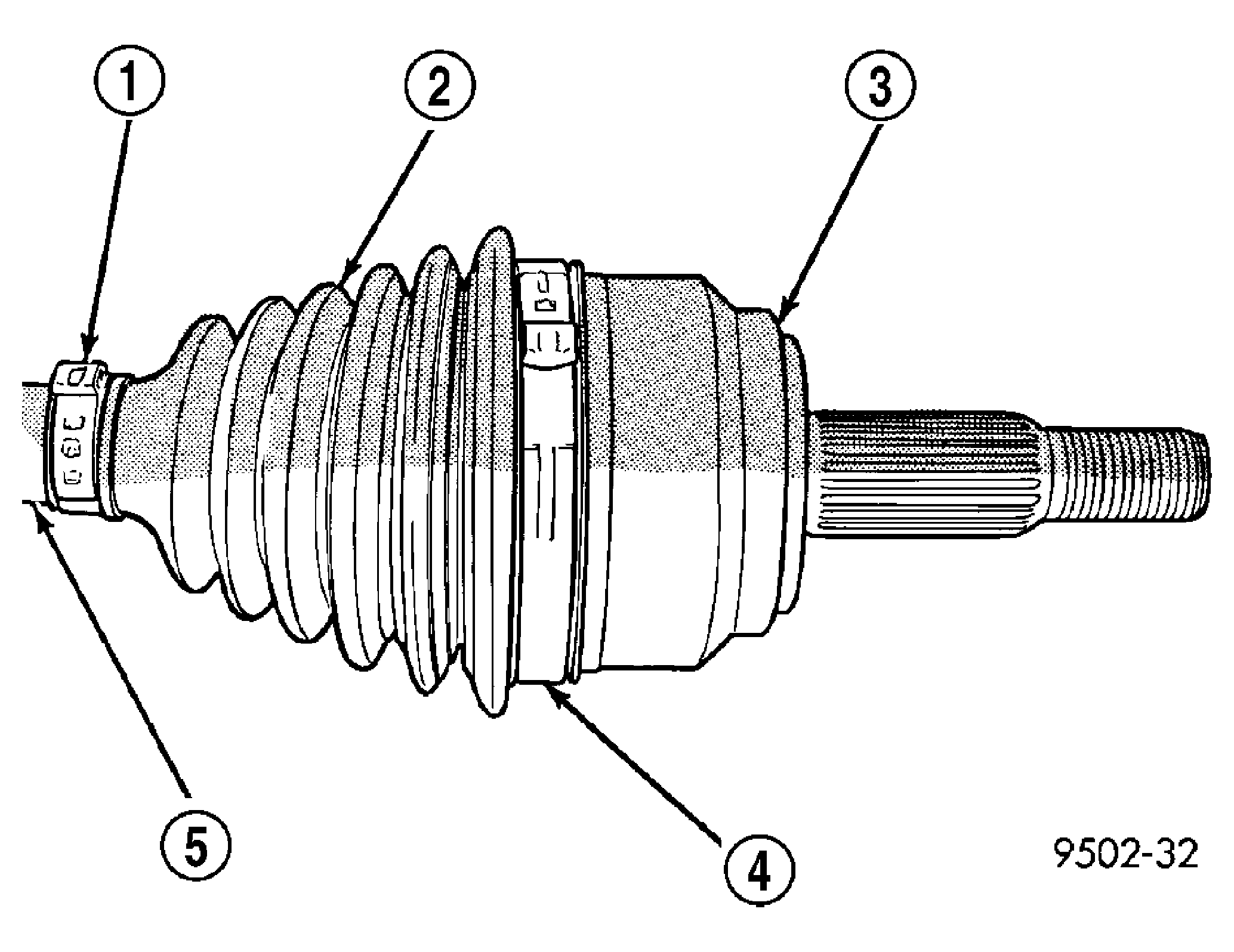

Fig 1: Outer C/V Joint, Seal Boot & Clamps

Courtesy of DAIMLERCHRYSLER CORP.

1 - SMALL CLAMP

2 - SEALING BOOT

3 - OUTER CV JOINT HOUSING

4 - LARGE CLAMP

5 - INTERCONNECTING SHAFT

Remove halfshaft assembly requiring boot replacement from vehicle. (Refer to DIFFERENTIAL & DRIVELINE/HALF SHAFT - REMOVAL) .
Remove large boot clamp (4) retaining CV joint sealing boot to CV joint housing (3) and discard. Remove small clamp (1) that retains outer CV joint sealing boot to interconnecting shaft (5) and discard. Remove sealing boot (2) from outer CV joint housing and slide it down interconnecting shaft. See Fig 1.

Wipe away grease to expose outer CV joint and interconnecting shaft.

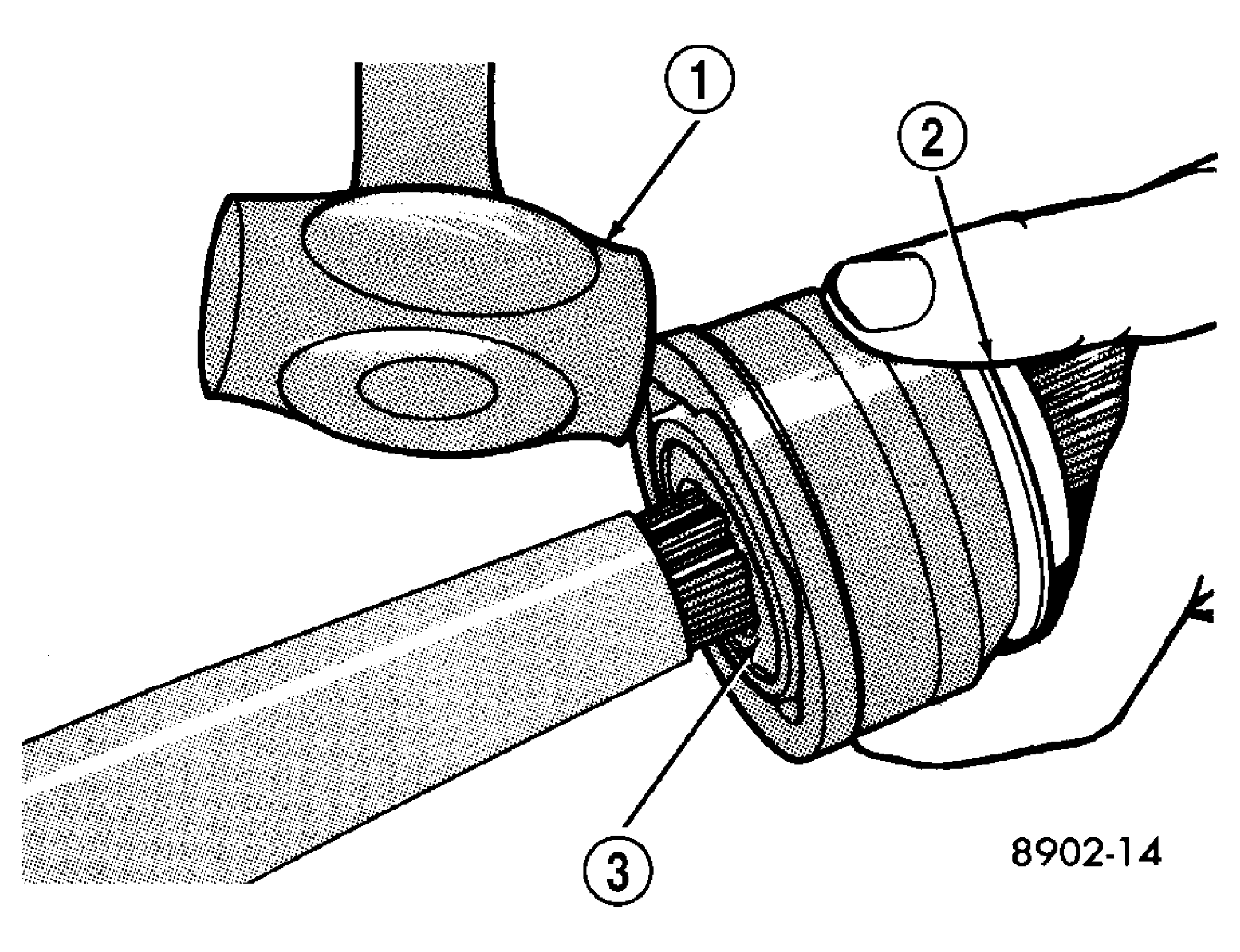

Fig 2: Removing Outer C/V Joint From Interconnecting Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - SOFT HAMMER (TAP INNER RACE ONLY)

2 - WEAR SLEEVE

3 - CIRCLIP (OUTER END OF SHAFT)

Remove outer CV joint from interconnecting shaft using the following procedure: Support interconnecting shaft in a vise equipped with protective caps on jaws of vise to prevent damage to interconnecting shaft. Then, using a soft-faced hammer (1), sharply hit the end of the CV joint housing to dislodge housing from internal circlip (3) on interconnecting shaft. Then slide outer CV joint off end of interconnecting shaft, joint may have to be tapped off shaft using a See Fig 2.soft-faced hammer.

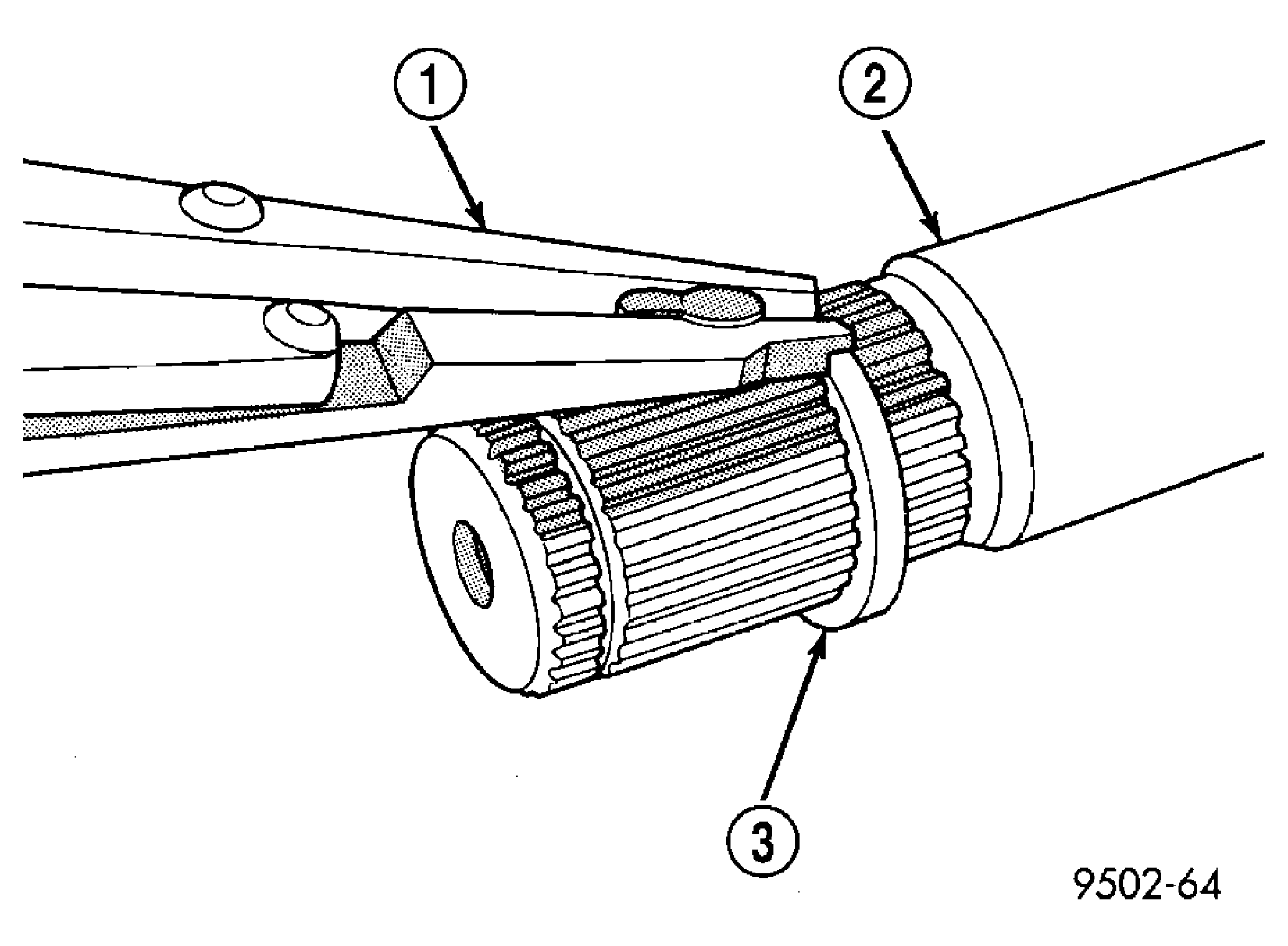

Fig 3: Circlip Removal From Interconnecting Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - SNAP RING PLIERS

2 - INTERCONNECTING SHAFT

3 - CIRCLIP

Remove large circlip (3) from the interconnecting shaft (2) before attempting to remove outer CV joint sealing boot. See Fig 3.
Slide sealing boot off interconnecting shaft.
Thoroughly clean and inspect outer CV joint assembly and interconnecting joint for any signs of excessive wear. If any parts show signs of excessive wear, the halfshaft assembly will require replacement. Component parts of these halfshaft assemblies are not serviceable.
