CV Boot - Outer: Installation

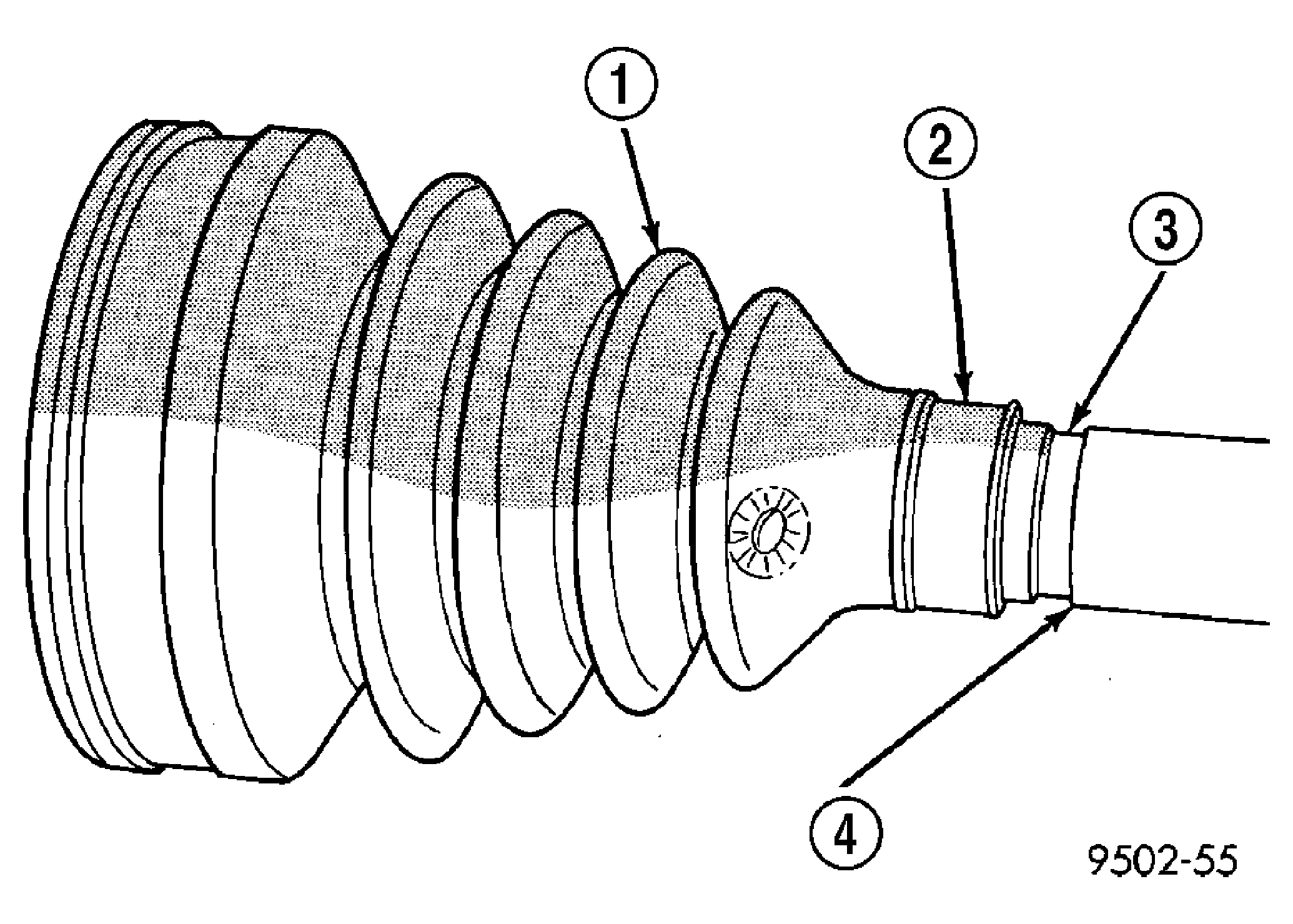

Fig 1: Installing Sealing Boot Onto Interconnecting Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEALING BOOT

2 - RAISED BEAD IN THIS AREA OF SEALING BOOT

3 - GROOVE

4 - INTERCONNECTING SHAFT

Slide new sealing boot clamp (2) onto interconnecting shaft (4). Slide the outer CV joint assembly sealing boot (1) onto the interconnecting shaft (4). See Fig 1.Seal boot MUST be positioned on interconnecting shaft so the raised bead on the inside of the seal boot is in groove on interconnecting shaft.

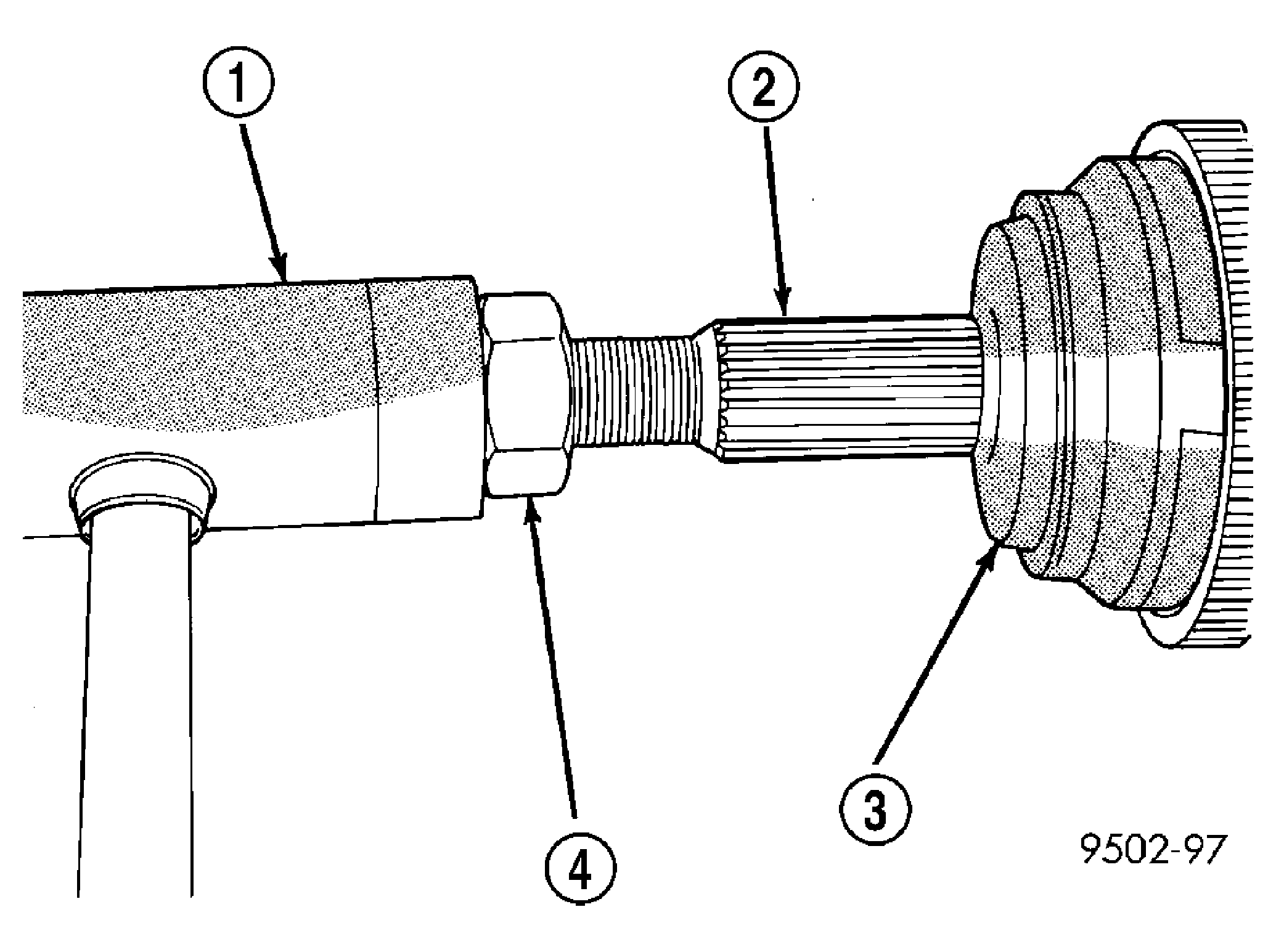

Fig 2: Installing Outer C/V Joint Onto Interconnecting Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - SOFT FACED HAMMER

2 - STUB AXLE

3 - OUTER C/V JOINT

4 - HUB NUT

Align splines on interconnecting shaft with splines on cross of outer CV joint assembly and start outer CV joint onto interconnecting shaft.

Install outer CV joint assembly onto interconnecting shaft by using a soft-faced hammer (1) and tapping end of stub axle (2) (with hub nut (4) installed) until outer CV joint (3) is fully seated on interconnecting shaft. See Fig 2.

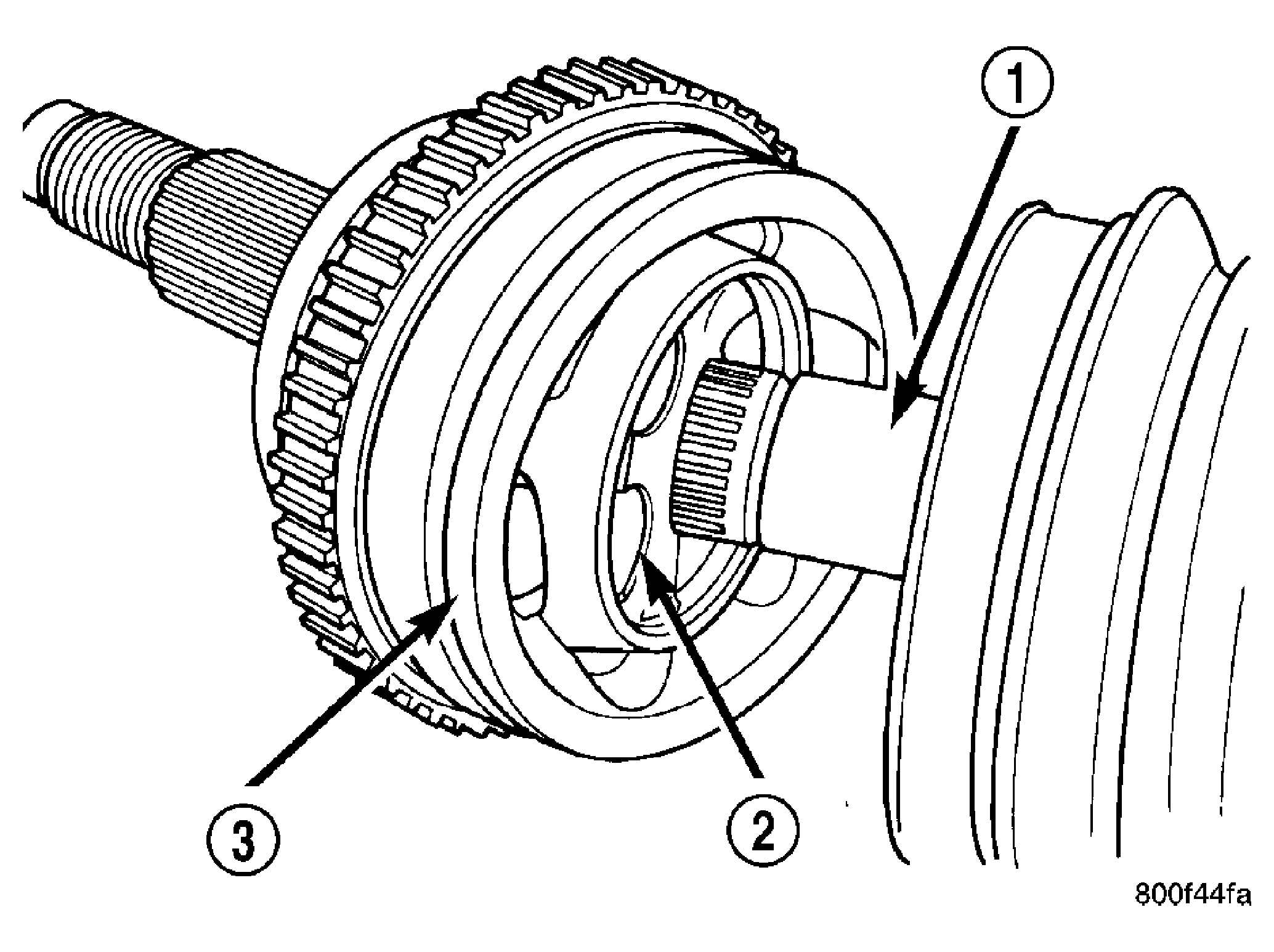

Fig 3: Outer C/V Joint Correctly Installed On Interconnecting Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - INTERCONNECTING SHAFT

2 - CROSS

3 - OUTER C/V JOINT ASSEMBLY

Outer CV joint assembly must be installed on interconnecting shaft until cross (2) of outer CV joint assembly (3) is seated against circlip on interconnecting shaft (1). See Fig 3.

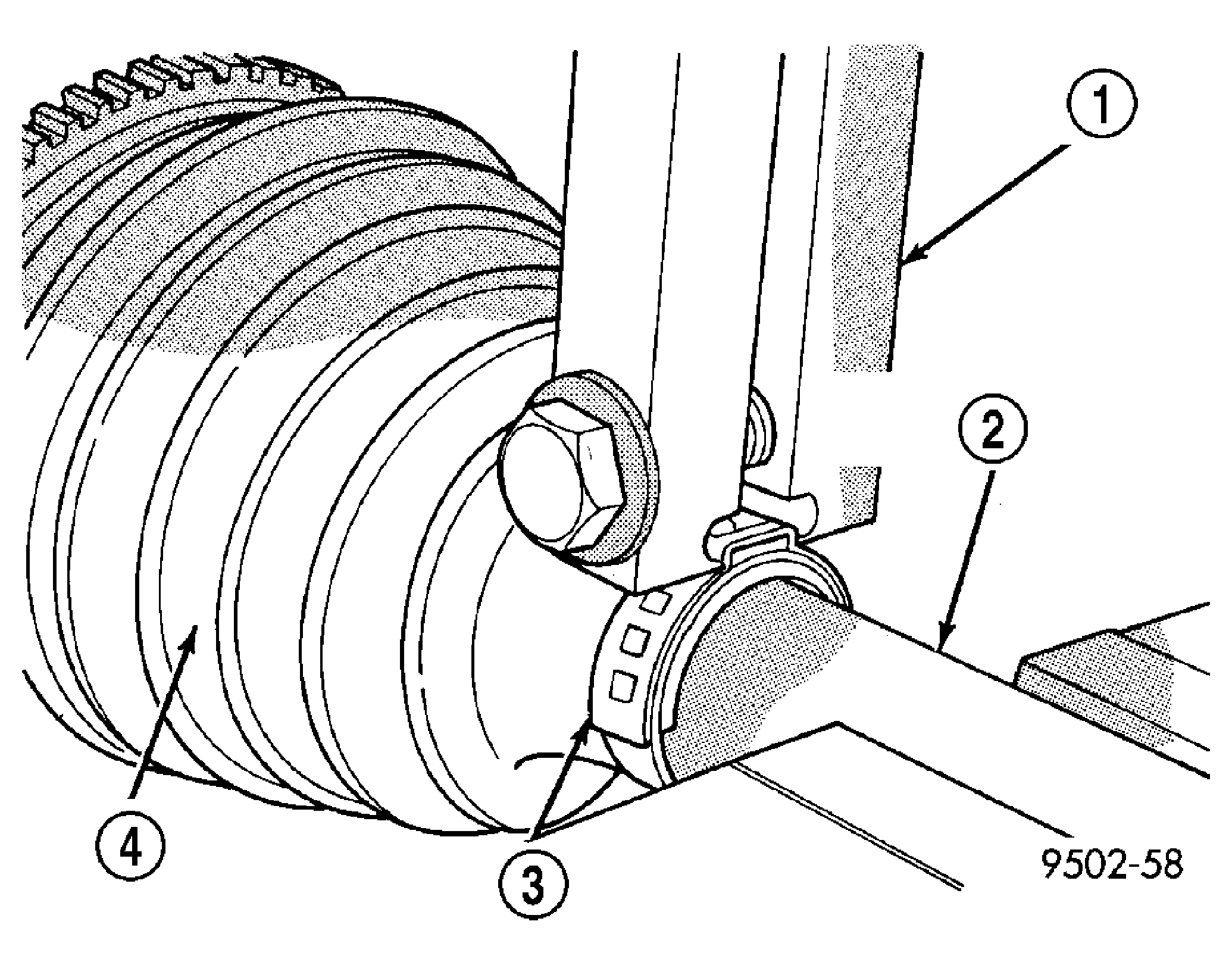

Fig 4: Crimping Tool Installed On Sealing Boot Clamp

Courtesy of DAIMLERCHRYSLER CORP.

1 - CRIMPING TOOL C-4975A

2 - INTERCONNECTING SHAFT

3 - CLAMP

4 - SEALING BOOT

Distribute 1/2 the amount of grease provided in seal boot service package (DO NOT USE ANY OTHER TYPE OF GREASE) into outer CV joint assembly housing. Put the remaining amount into the sealing boot (4). See Fig 4.
Install outer CV joint sealing boot to interconnecting shaft clamp evenly on sealing boot.

Clamp sealing boot onto interconnecting shaft (2) using crimper, Crimping Tool C-4975-A and the following procedure. Place crimping tool C-4975-A (1) over bridge of clamp (3).

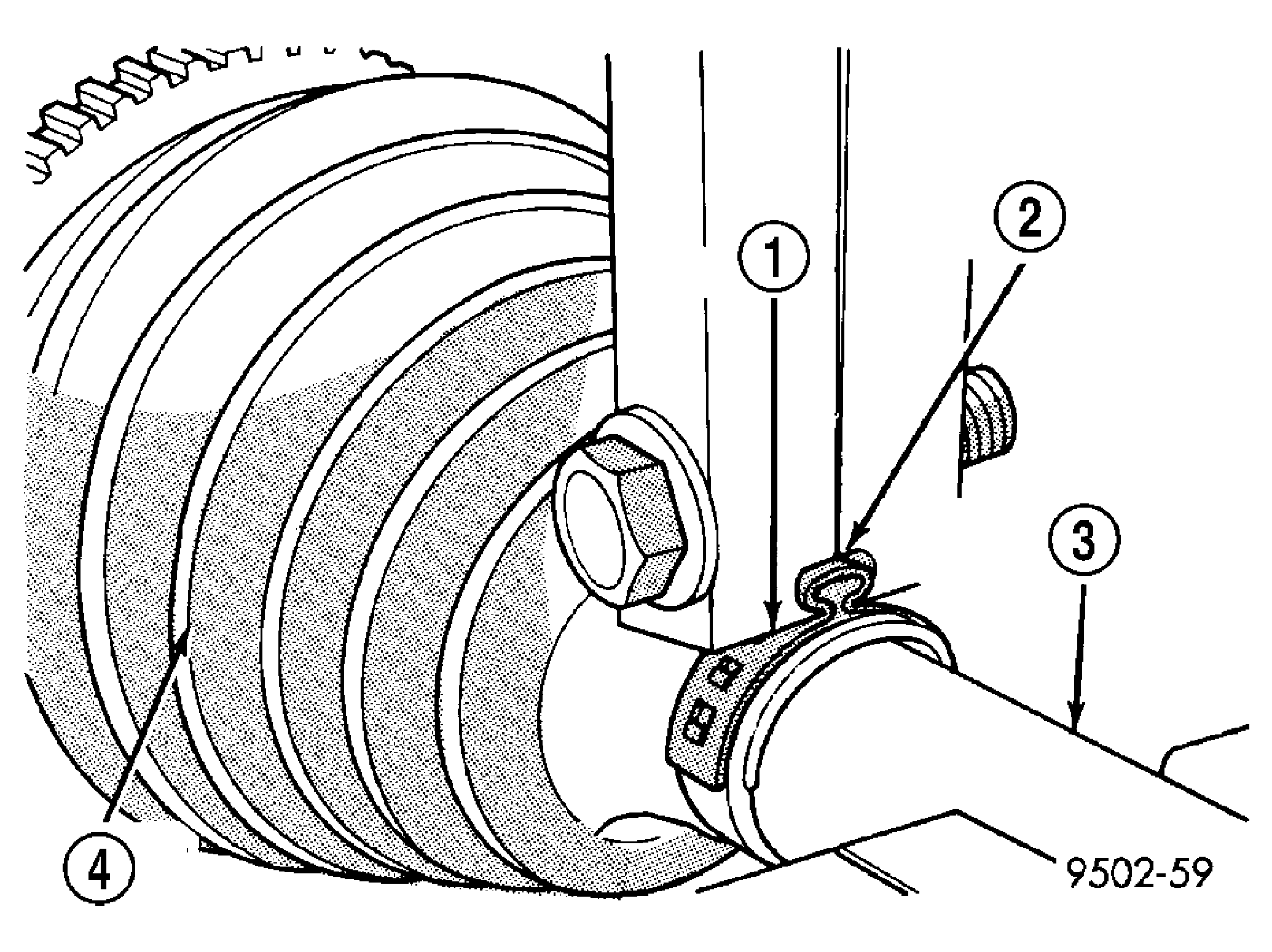

Fig 5: Sealing Boot Retaining Clamp Crimped

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLAMP

2 - JAWS OF CRIMPING TOOL C-4975A MUST BE CLOSED COMPLETELY TOGETHER HERE

3 - INTERCONNECTING SHAFT

4 - SEALING BOOT

Tighten nut on crimping tool C-4975-A until jaws on tool (2) are closed completely together, face to face. See Fig 5.

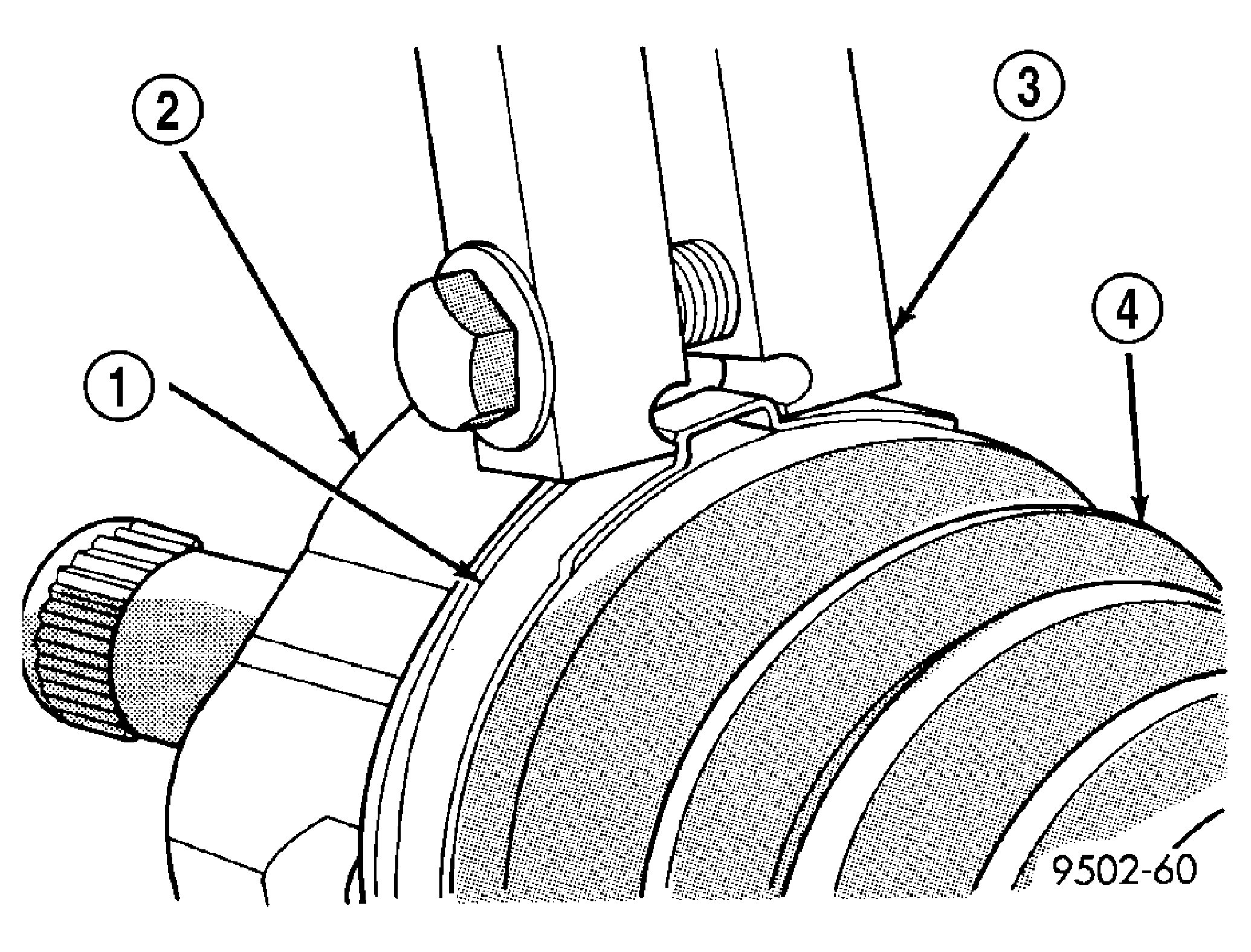

Fig 6: Crimping Tool Installed On Sealing Boot Clamp

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLAMP

2 - TRIPOD JOINT HOUSING

3 - CRIMPING TOOL C-4975A

4 - SEALING BOOT

CAUTION: Seal must not be dimpled, stretched, or out-of-shape in any way. If seal is NOT shaped correctly, equalize pressure in seal and shape it by hand.

Position outer CV joint sealing boot (4) into its retaining groove on outer CV joint housing. Install sealing boot to outer CV joint retaining clamp (1) evenly on sealing boot. See Fig 6.

Clamp sealing boot onto outer CV joint housing using Crimping Tool C-4975-A (3) and the following procedure. Place crimping tool C-4975-A over bridge of clamp (1).

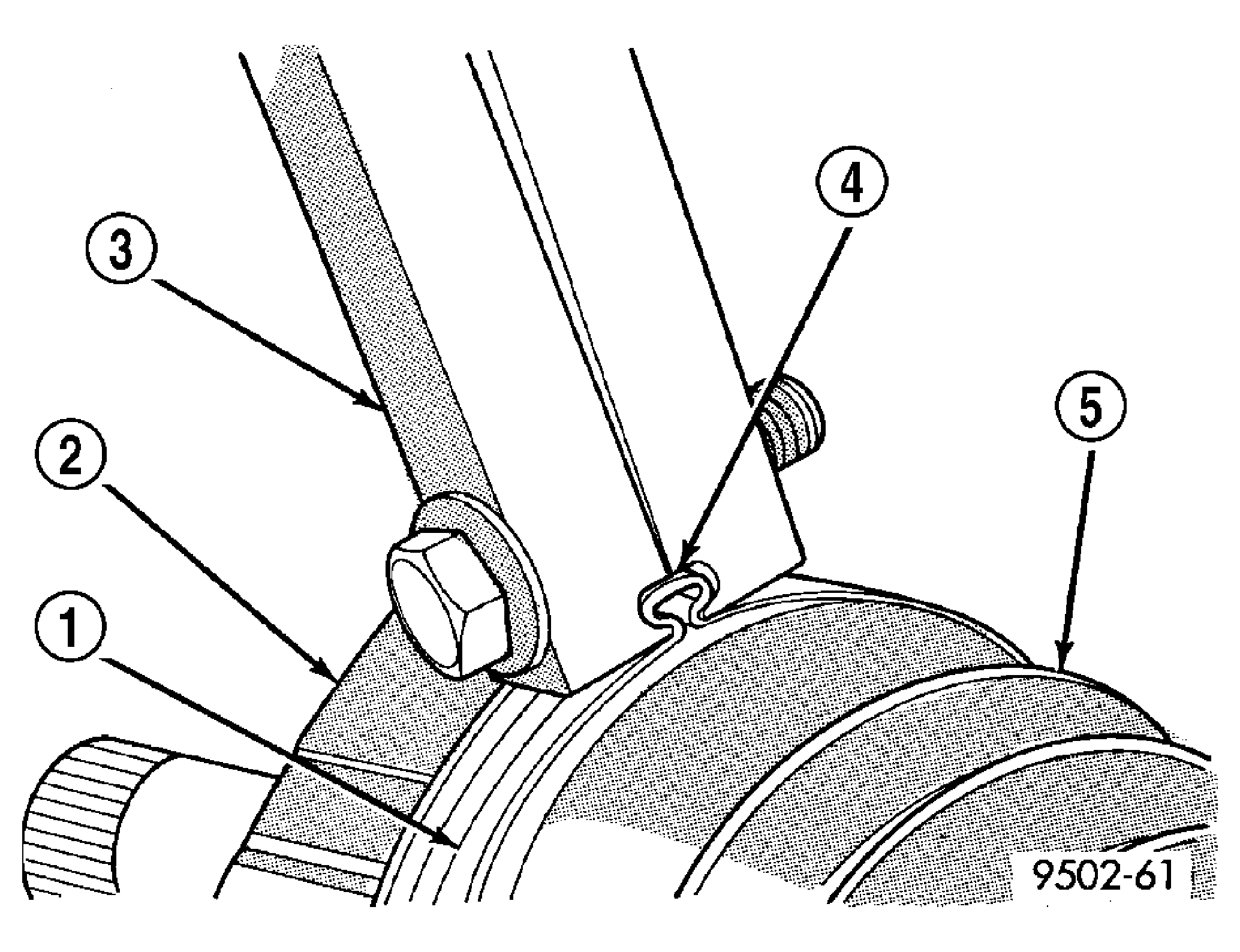

Fig 7: Sealing Boot Retaining Clamp Crimped

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLAMP

2 - TRIPOD HOUSING

3 - CRIMPING TOOL C-4975A

4 - JAWS OF CRIMPING TOOL C-4975A MUST BE CLOSED COMPLETELY TOGETHER HERE

5 - SEALING BOOT

Tighten nut on crimping tool C-4975-A until jaws on tool are closed completely together (4), face to face. See Fig 7.
Install the halfshaft requiring boot replacement back on the vehicle. (Refer to DIFFERENTIAL & DRIVELINE/HALF SHAFT - INSTALLATION) .
