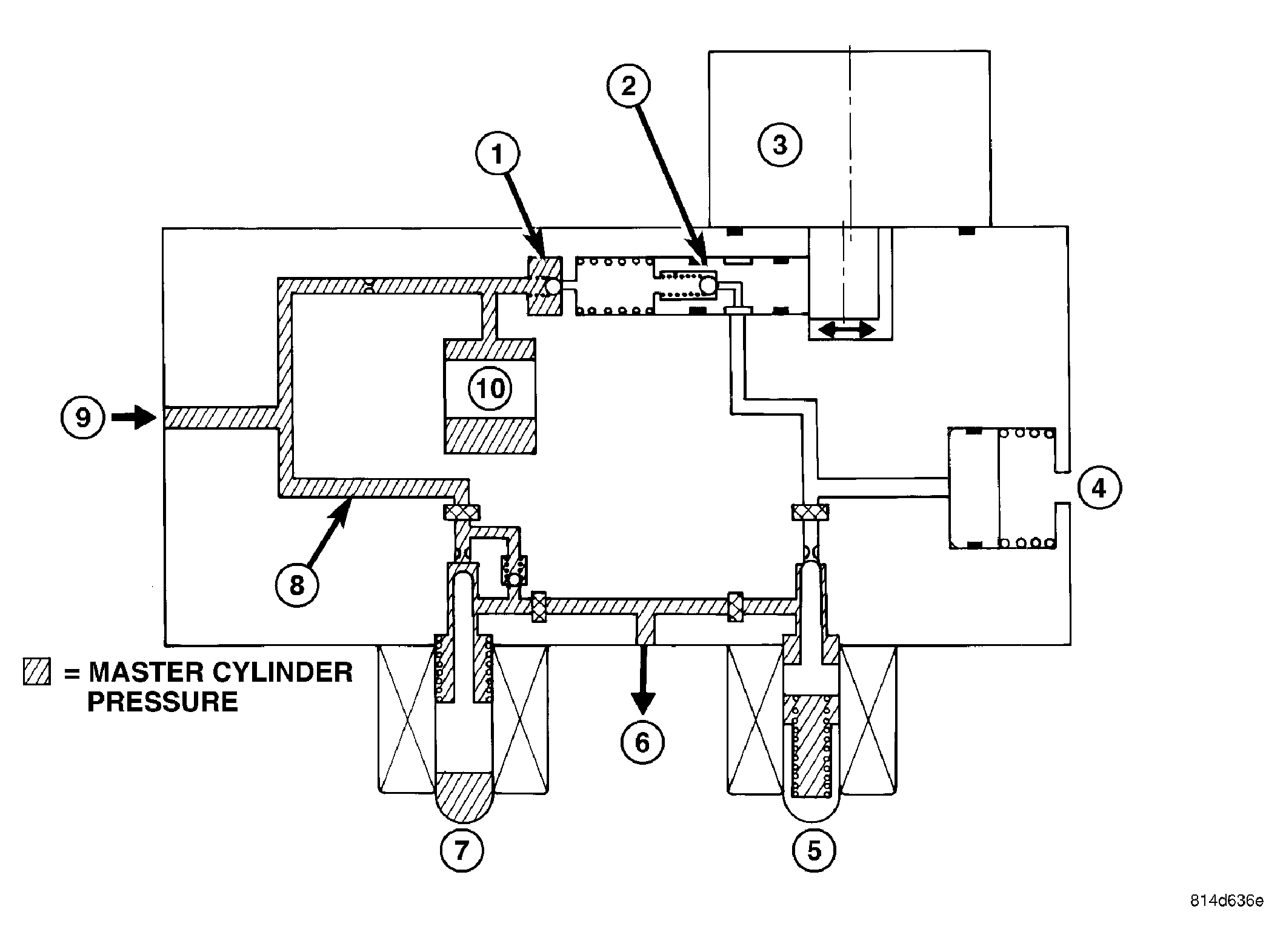

Normal Braking Hydraulic Circuit And Solenoid Valve Function (Abs Without Traction Control)
| 1 - OUTLET VALVE |
| 2 - PUMP PISTON |
| 3 - PUMP/MOTOR |
| 4 - LOW PRESSURE ACCUMULATOR |
| 5 - NORMALLY CLOSED VALVE (OFF) |
| 6 - TO WHEEL BRAKE |
| 7 - NORMALLY OPEN VALVE (OFF) |
| 8 - MASTER CYLINDER PRESSURE |
| 9 - FROM MASTER CYLINDER |
| 10 - NOISE DAMPER CHAMBER |
The hydraulic diagram shows the vehicle in the normal braking mode of the base brake hydraulic system. See Fig 1. The diagram shows no wheel spin or slip occurring relative to the speed of the vehicle. The driver is applying the brake pedal which builds pressure in the brake hydraulic system to engage the brakes and stop the vehicle.
