Guide Pins-Front Brake Caliper: Removal

NOTE: Before proceeding, (Refer to BRAKES - WARNING) (Refer to BRAKES - CAUTION) .

Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)

Fig 1: Tire And Wheel Mounting
Courtesy of DAIMLERCHRYSLER CORP.

Remove the wheel mounting nuts (3), then the tire and wheel assembly.

Fig 2: Brake Caliper Mounting

Courtesy of DAIMLERCHRYSLER CORP.

1 - BRAKE HOSE

2 - ADAPTER MOUNTING BOLTS

3 - BANJO BOLT

4 - CALIPER GUIDE PIN BOLTS

Remove the two brake caliper guide pin bolts (4).
Remove the brake caliper from the adapter. Hang the caliper out of the way using wire or a bungee cord. Use care not to overextend the brake hose (1) when doing this.

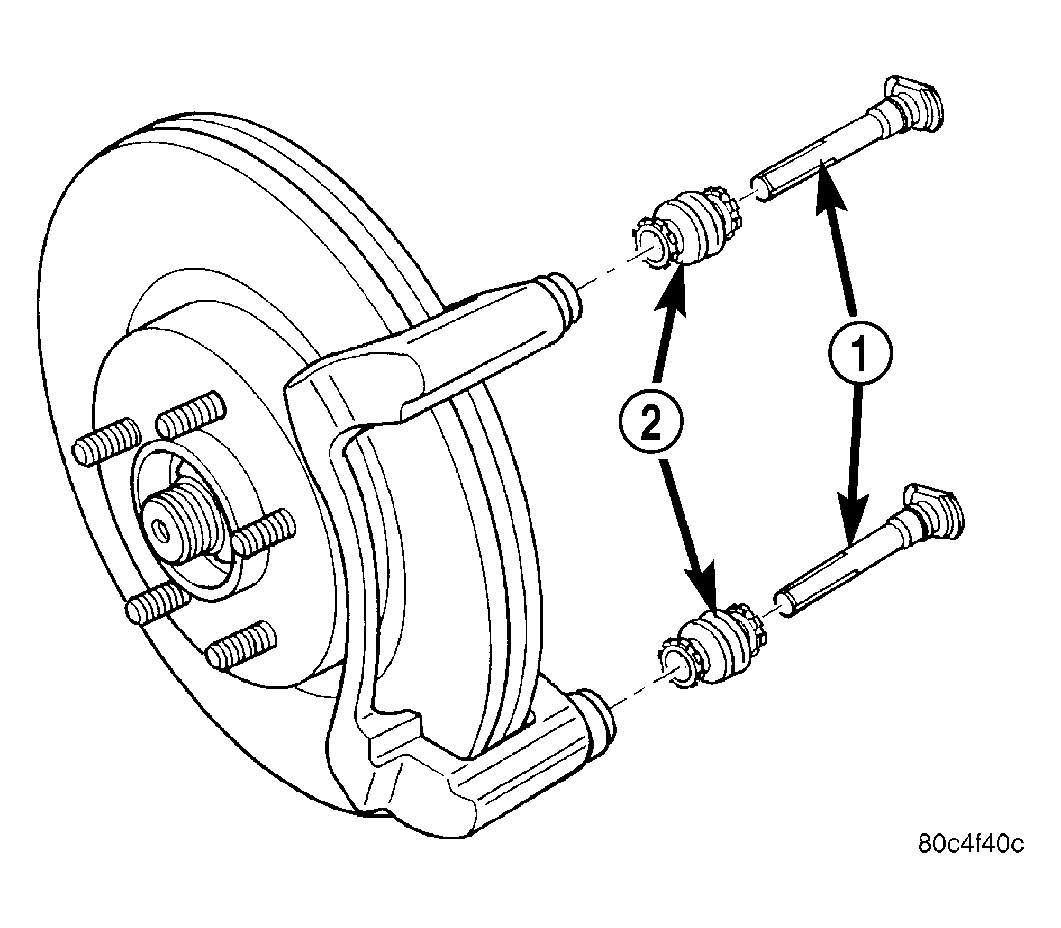

Fig 3: Guide Pins and Boots
Courtesy of DAIMLERCHRYSLER CORP.

1 - PINS

2 - BOOTS
Remove the guide pins (1) and boots (2) from the adapter as shown in illustration.
