U0019-Can B Bus-DDM/PDM: Notes

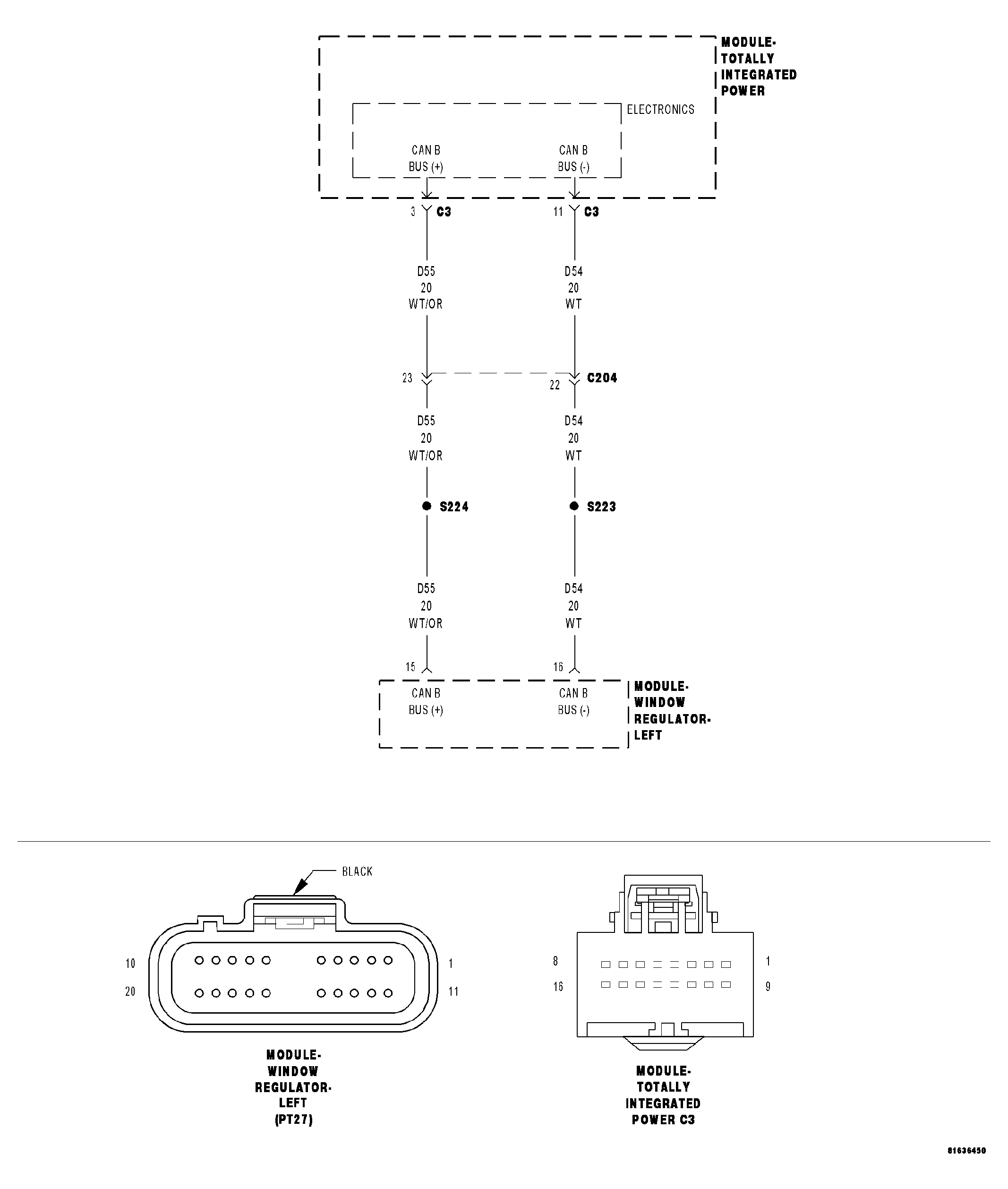

Fig 1: Can B Bus Circuits Between Totally Integrated Power Module (TIPM) & Window Regulator Module
GC0043709Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Left module shown - right module similar
