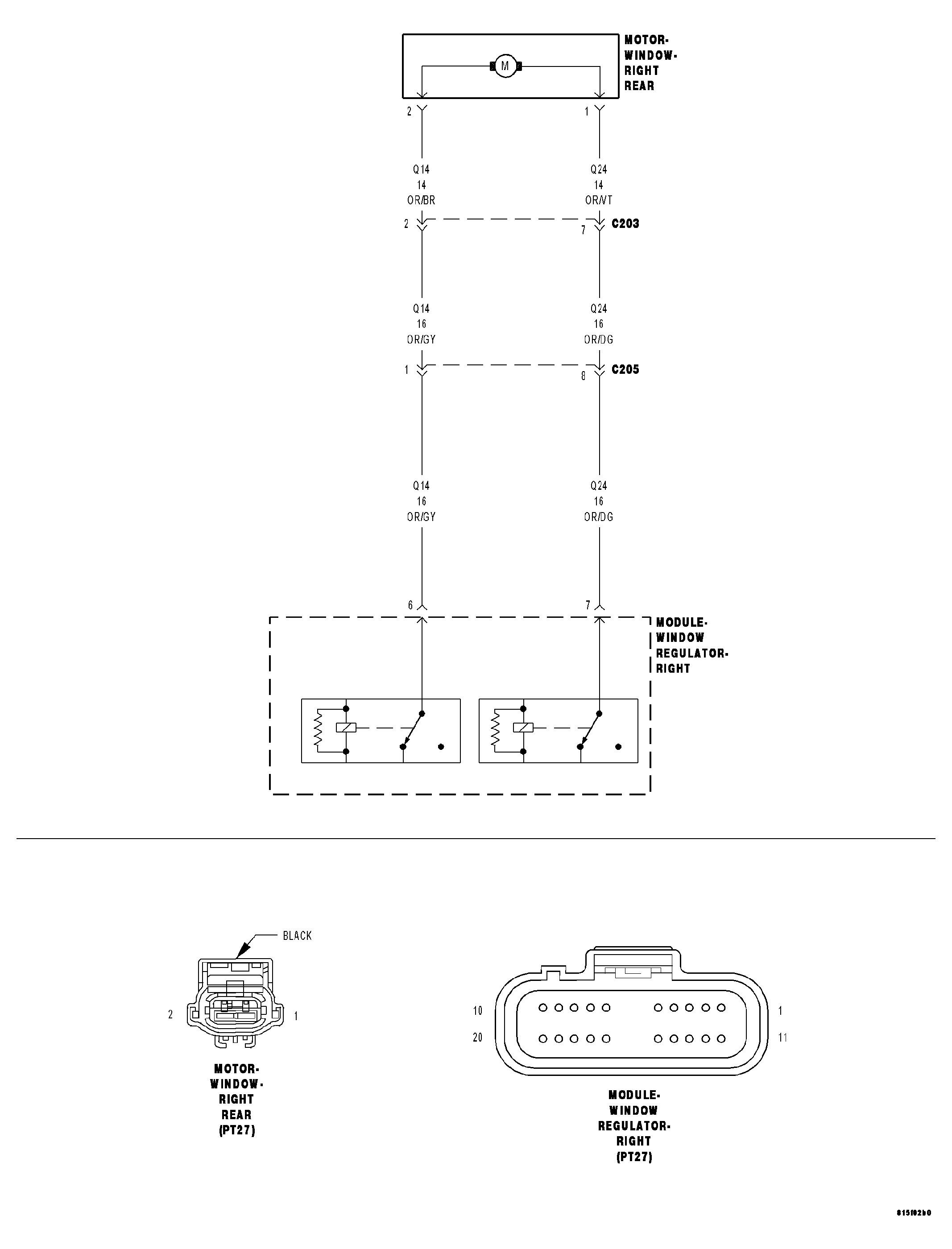

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows - Electrical Diagnostics >> Power Windows - Pt27 - Electrical Diagnostics >> DTC Troubleshooting >> *Right Rear Window Motor Inoperative - Pt27 >> Circuit Schematic
