Circuit Schematic

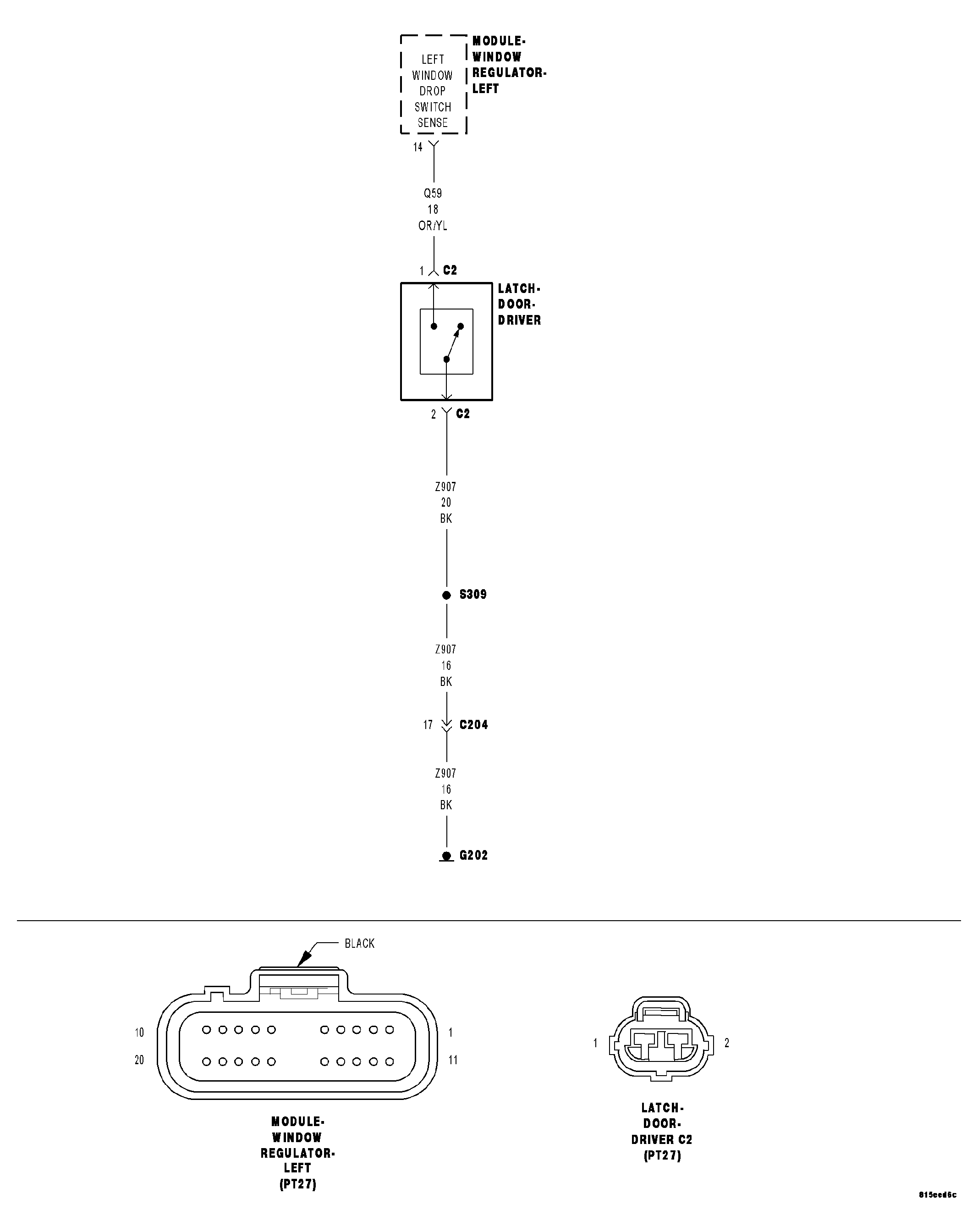

Fig 1: Window Module - Window Drop Switch Sense Circuit Schematic

GC0043690

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Left side graphic is shown - right side similar.
