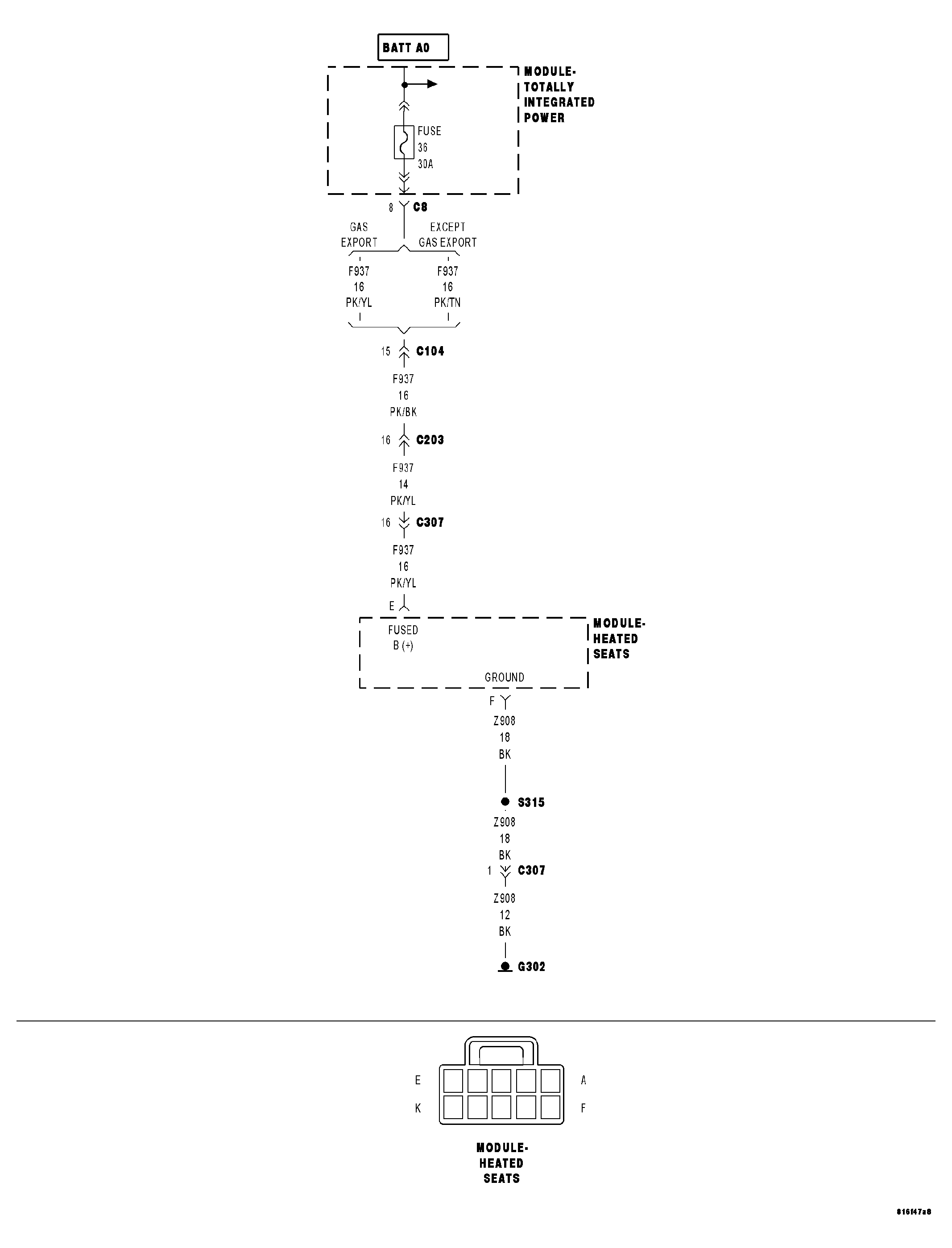

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Heated Seat System - Electrical Diagnostics >> Electrical Diagnostics >> DTC Troubleshooting >> B2181- Heated Seat Module Power Supply Low >> Circuit Schematic
