Side Rail Tie Down Bracket: Removal

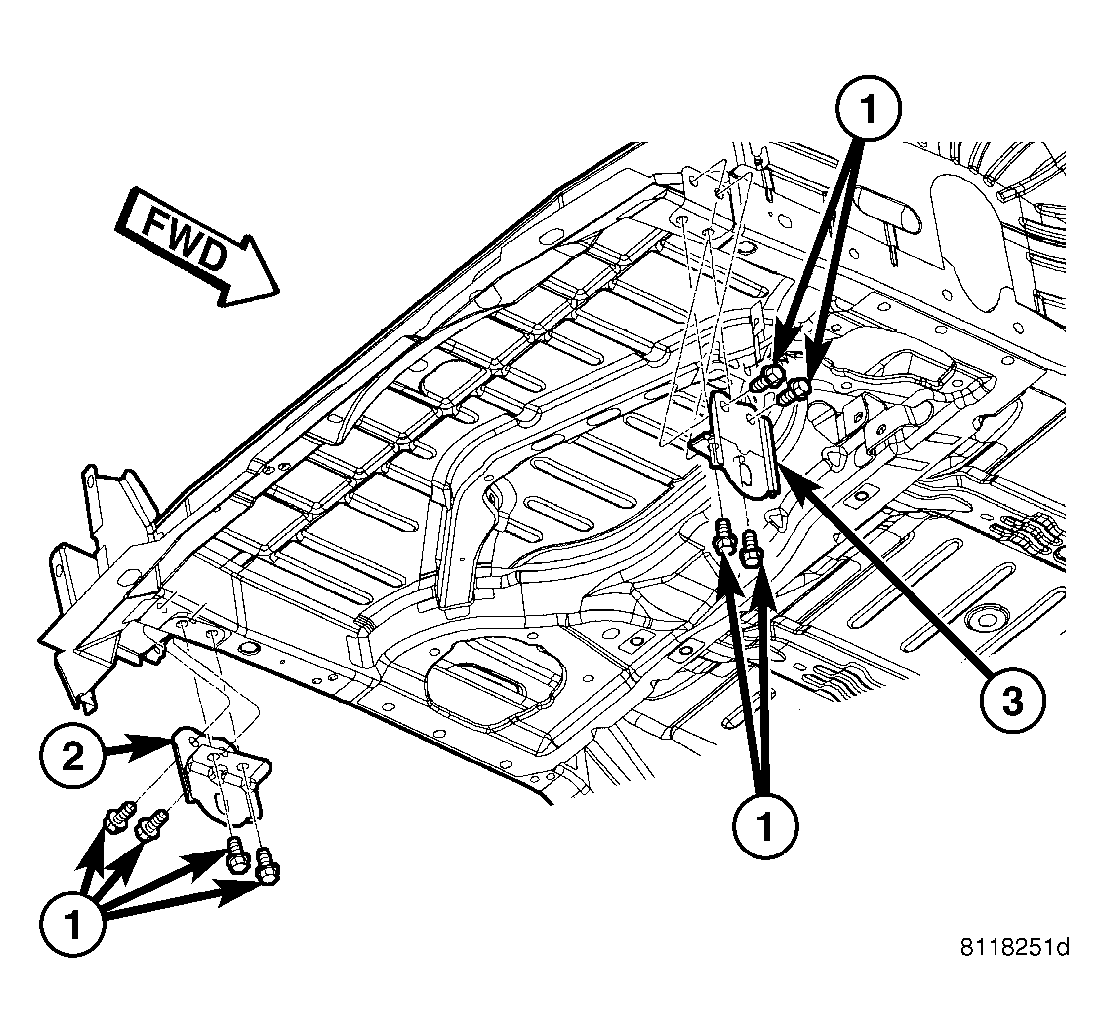

Fig 1: Rear Side Rail Shipping Tie Down Bracket
GC0021984Courtesy of DAIMLERCHRYSLER CORP.
1 - ATTACHING BOLTS
2 - LEFT REAR SIDE RAIL SHIPPING TIE DOWN BRACKET
3 - RIGHT REAR SIDE RAIL SHIPPING TIE DOWN BRACKET
  1. Raise the vehicle on hoist. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
  2. Remove the four bolts (1) attaching the right and left rear side rail shipping tie down bracket.
