Side Rail Tie Down Bracket: Installation

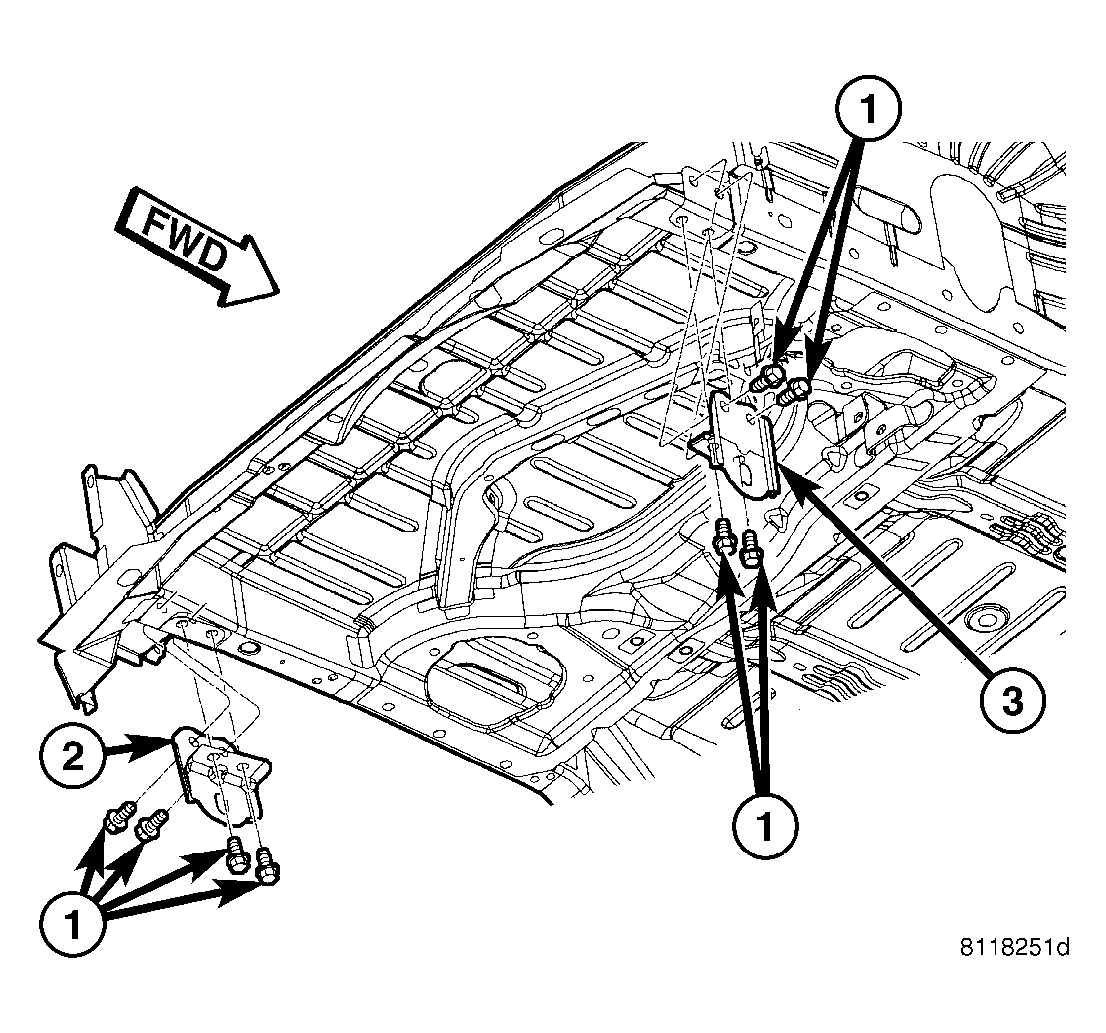

Fig 1: Rear Side Rail Shipping Tie Down Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING BOLTS

2 - LEFT REAR SIDE RAIL SHIPPING TIE DOWN BRACKET

3 - RIGHT REAR SIDE RAIL SHIPPING TIE DOWN BRACKET

1. Place rear side rail shipping tie down bracket into position the rear frame rail.
2. Install the four bolts (1) attaching both left and right rear side rail shipping tie down bracket to rear frame rail. Tighten bolts to 68 N.m (50 ft. lbs.).
3. Lower the vehicle from hoist.
