Rear Emergency Tow Eye: Removal

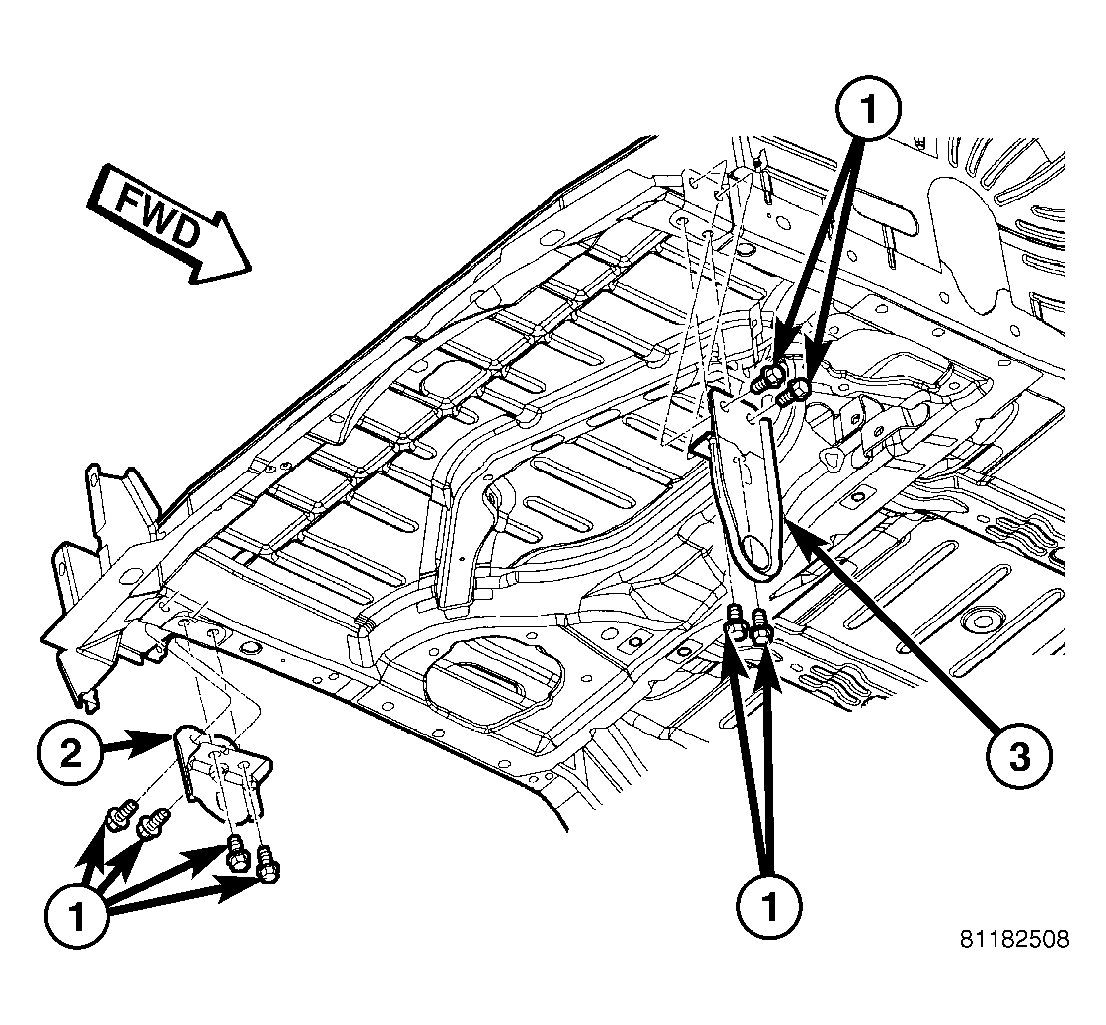

Fig 1: Rear Side Rail Tow Hook

Courtesy of DAIMLERCHRYSLER CORP.

1 - ATTACHING BOLTS

2 - LEFT REAR SIDE RAIL SHIPPING TIE DOWN BRACKET

3 - REAR SIDE RAIL TOW HOOK

Raise the vehicle on hoist. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
Remove four bolts (1) attaching rear side rail tow hook (3) to rear frame rail.
