Rear Emergency Tow Eye: Installation

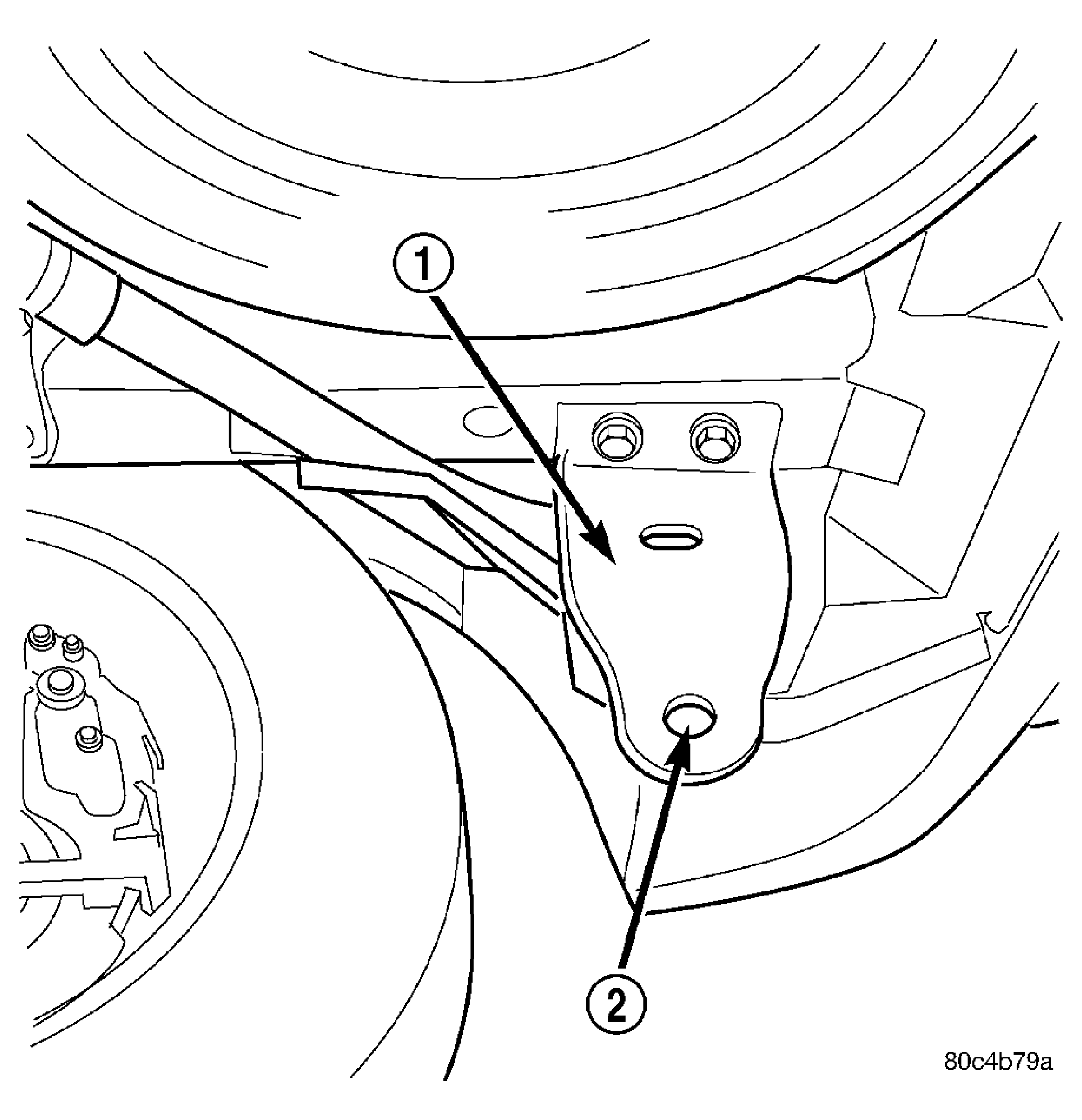

Fig 1: Rear Tow Eye

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR TOW EYE BRACKET

2 - REAR TOW EYE

1. Place rear side rail tow hook into position on the rear frame rail.

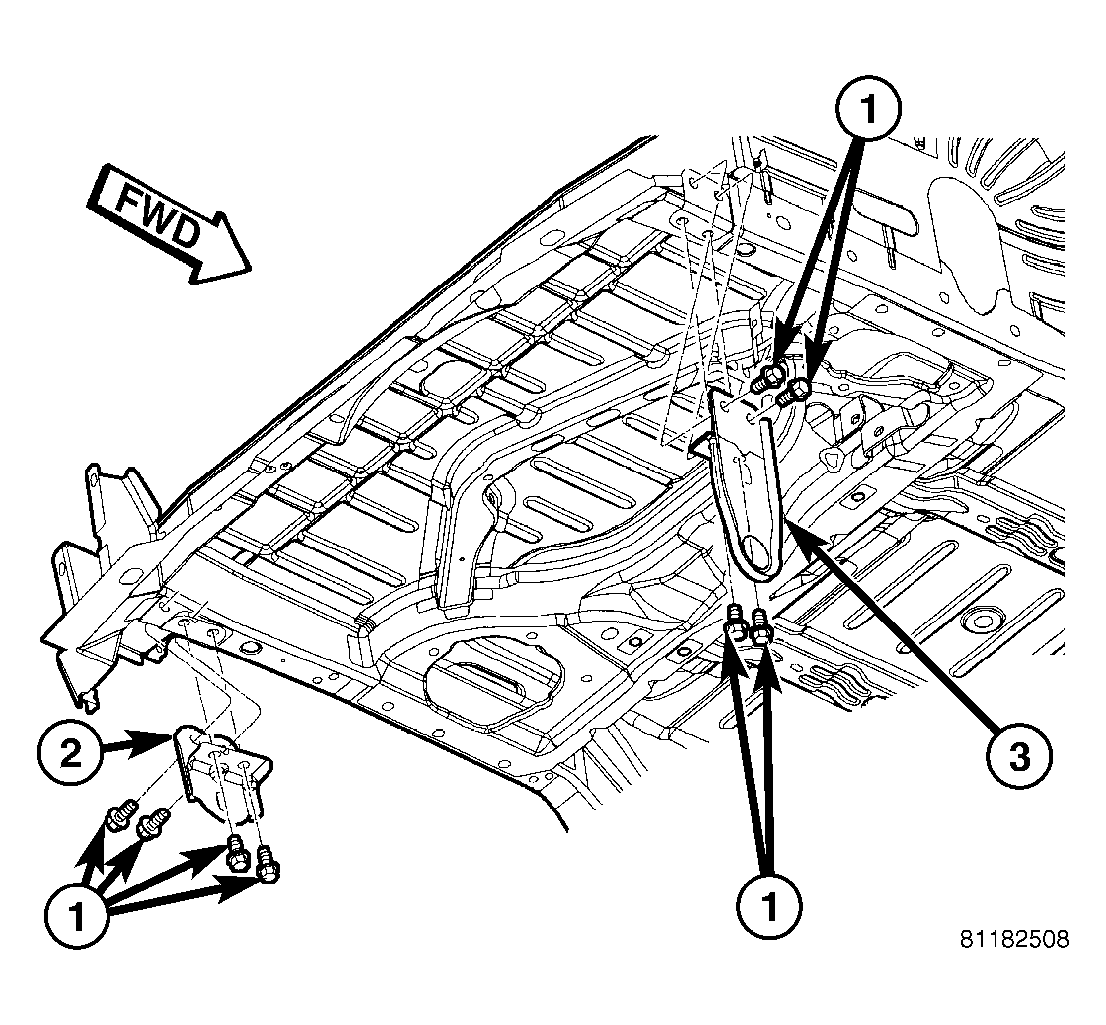

   Fig 2: Rear Side Rail Tow Hook

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - ATTACHING BOLTS

   2 - LEFT REAR SIDE RAIL SHIPPING TIE DOWN BRACKET

   3 - REAR SIDE RAIL TOW HOOK

2. Install four bolts (1) attaching rear side rail tow hook (3) to rear frame rail. Tighten bolts to 68 N.m (50 ft. lbs.).
3. Lower the vehicle from hoist.
