Rear Bumper Reinforcement: Installation

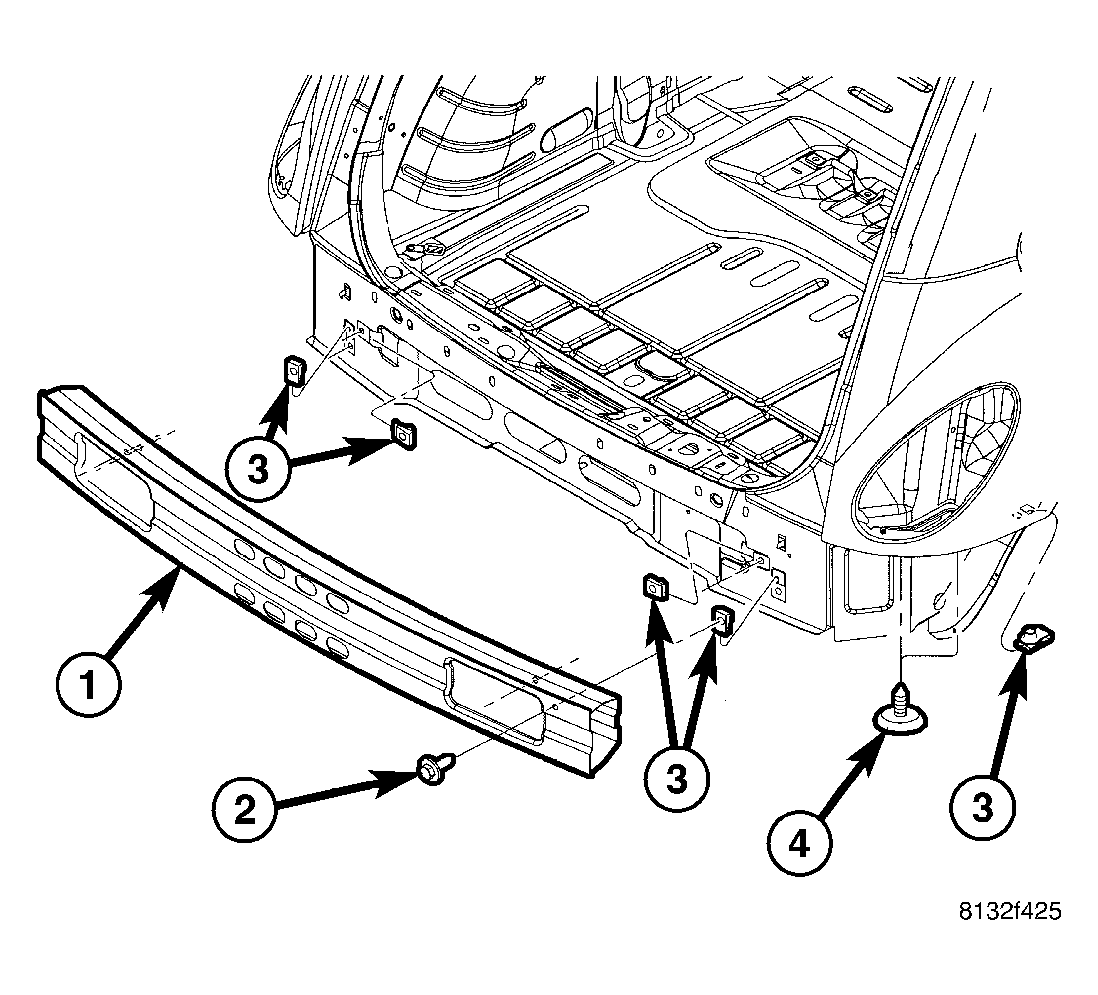

Fig 1: REAR BUMPER REINFORCEMENT

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR BUMPER REINFORCEMENT

2 - ATTACHING SCREW(S)

3 - U-NUT(S)

4 - REAR FASCIA FASTENER

1. Position bumper reinforcement (1) to vehicle).
2. Install 4 bolts (2) attaching reinforcement to rear closure panel.
3. Install rear fascia.
