Rear Bumper Fascia: Installation

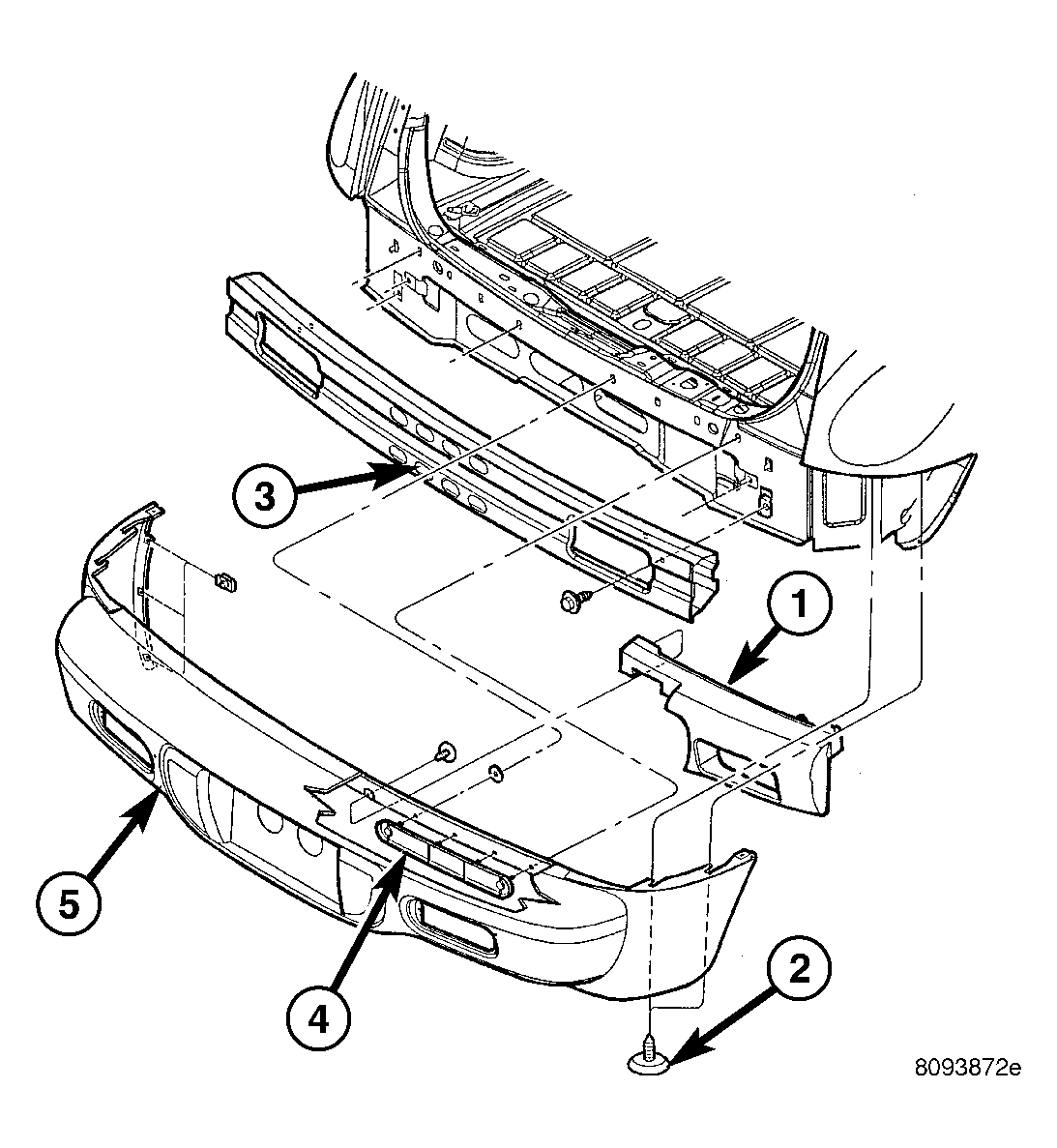

Fig 1: REAR BUMPER FASCIA
GC0042926Courtesy of DAIMLERCHRYSLER CORP.
1 - REAR BUMPER FASCIA ENERGY FOAM
2 - PUSH PIN
3 - REAR BUMPER REINFORCEMENT
4 - REAR FASCIA TO CLOSURE STUD PLATE
5 - REAR BUMPER FASCIA
  1. Position fascia (5) on vehicle.
  2. Position fascia slots to push pins (2) on lower quarter panels
  3. Slide fascia (5) forward on push pins (2).

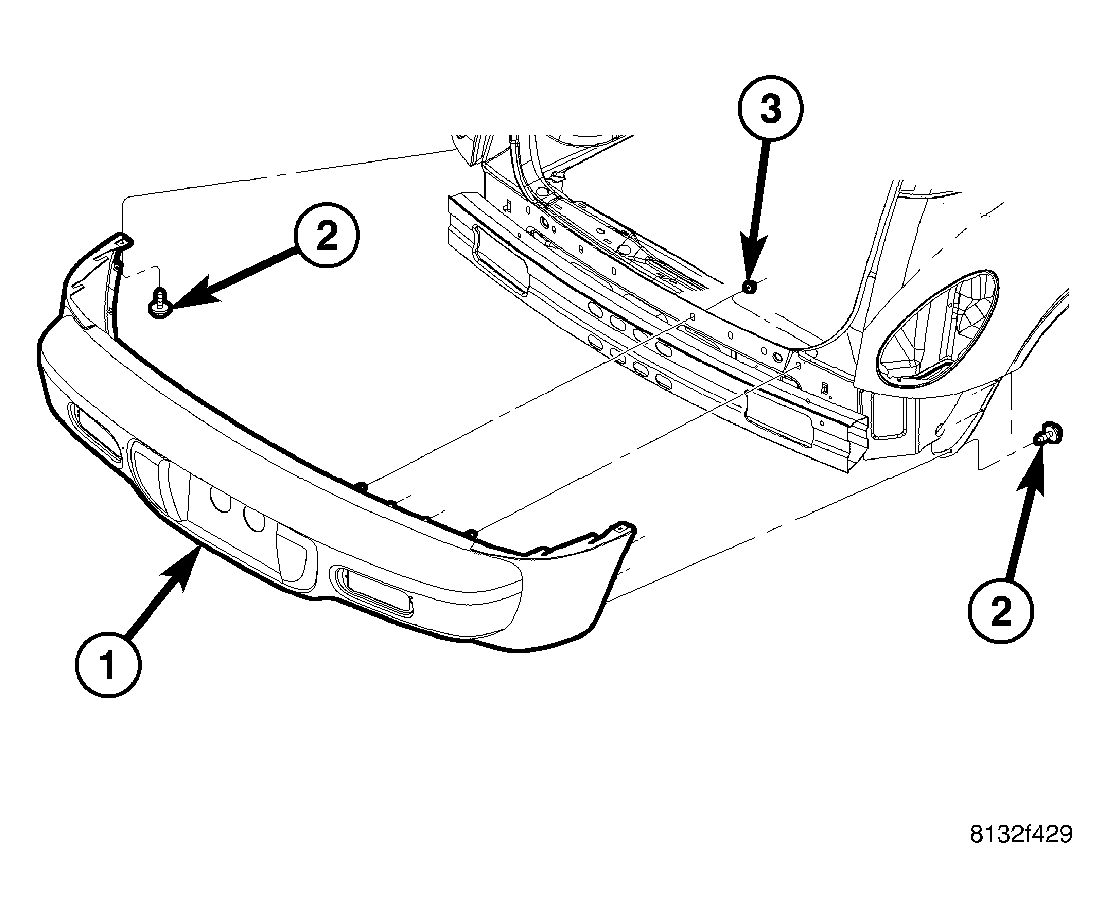

    Fig 2: REAR BUMPER FASCIA
    GC0042927Courtesy of DAIMLERCHRYSLER CORP.
    1 - REAR BUMPER FASCIA
    2 - ATTACHING SCREW
    3 - STUD PLATE TO REAR FASCIA NUT
  4. Install screws (2) attaching fascia to lower quarter panels.
  5. Install splash shield in the wheel opening area (Refer to BODY/EXTERIOR/FRONT END SPLASH SHIELDS - INSTALLATION) .
  6. Connect license lamp.

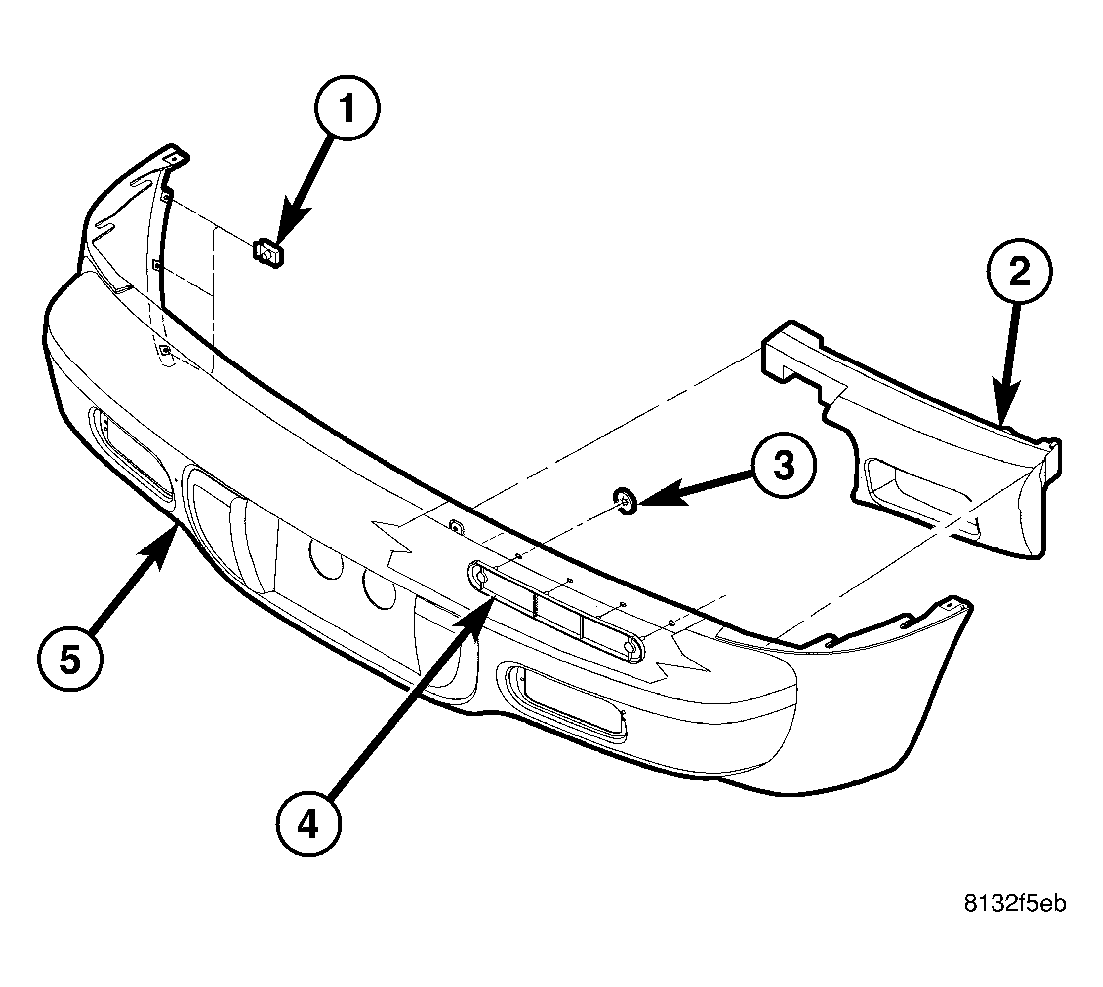

    Fig 3: Rear Bumper Fascia Energy Foam
    GC0021976Courtesy of DAIMLERCHRYSLER CORP.
    1 - U-NUT(S)
    2 - REAR BUMPER FASCIA ENERGY FOAM
    3 - SPRING NUT(S)
    4 - REAR FASCIA TO CLOSURE STUD PLATE
    5 - REAR BUMPER FASCIA
  7. Lower vehicle.
  8. Install nuts (1) attaching fascia to lower floor closure.
  9. Install the rubber body plugs or install new mastic tape patches, if equipped.
  10. Close liftgate.
