Front Emergency Tow Eye: Installation

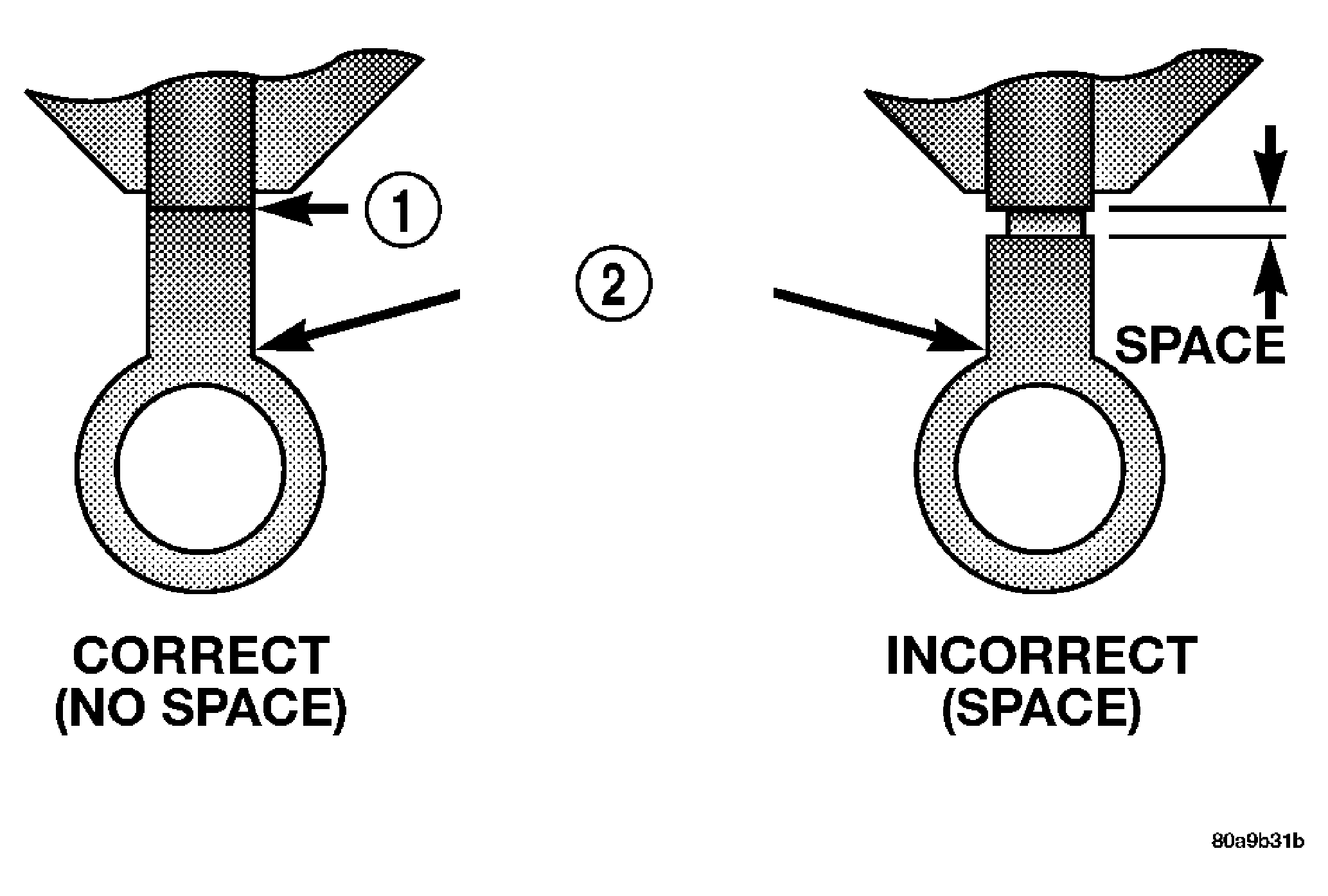

Fig 1: Emergency Front Tow Eye Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - NO SPACE

2 - TOW HOOK

1. Lubricate the threads and install the front tow eye in the front tow eye bracket. Tighten tow eye until firmly seated against bracket. No torque specification is required.
