Front Bumper Fascia: Installation

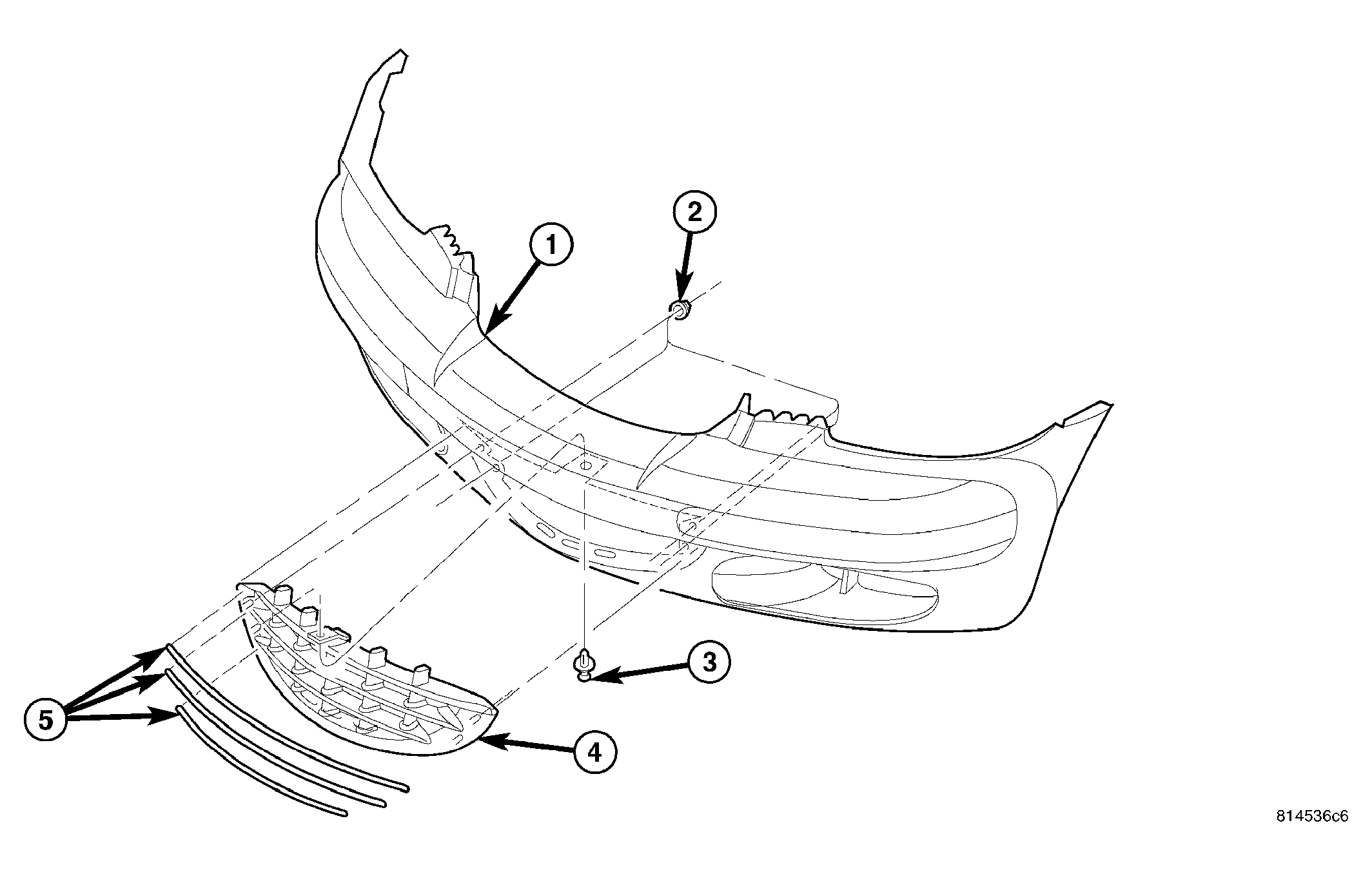

Fig 1: Front Fascia - Lower Grille Chrome A

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT FASCIA

2 - SPRING NUTS (6)

3 - PUSH PIN FASTENER

4 - LOWER RADIATOR GRILLE

5 - CHROME STRIPS

Place fascia (1) on a work bench.
Install lower radiator grille (4), and chrome strips (5), if equipped. Place chrome strip into position, and press on chrome strip until it is locked into position.
Install lower radiator grille (4), if equipped. (Refer to BODY/EXTERIOR/GRILLE - LOWER RADIATOR - INSTALLATION) .
Install air dam, retainer fasteners, foam and fog lamps if equipped.
Place fascia in position and connect fog lamp wire connectors.

Fig 2: Fascia Attaching Points
Courtesy of DAIMLERCHRYSLER CORP.
Install two fasteners attaching fascia (2) to the fender bracket (1).

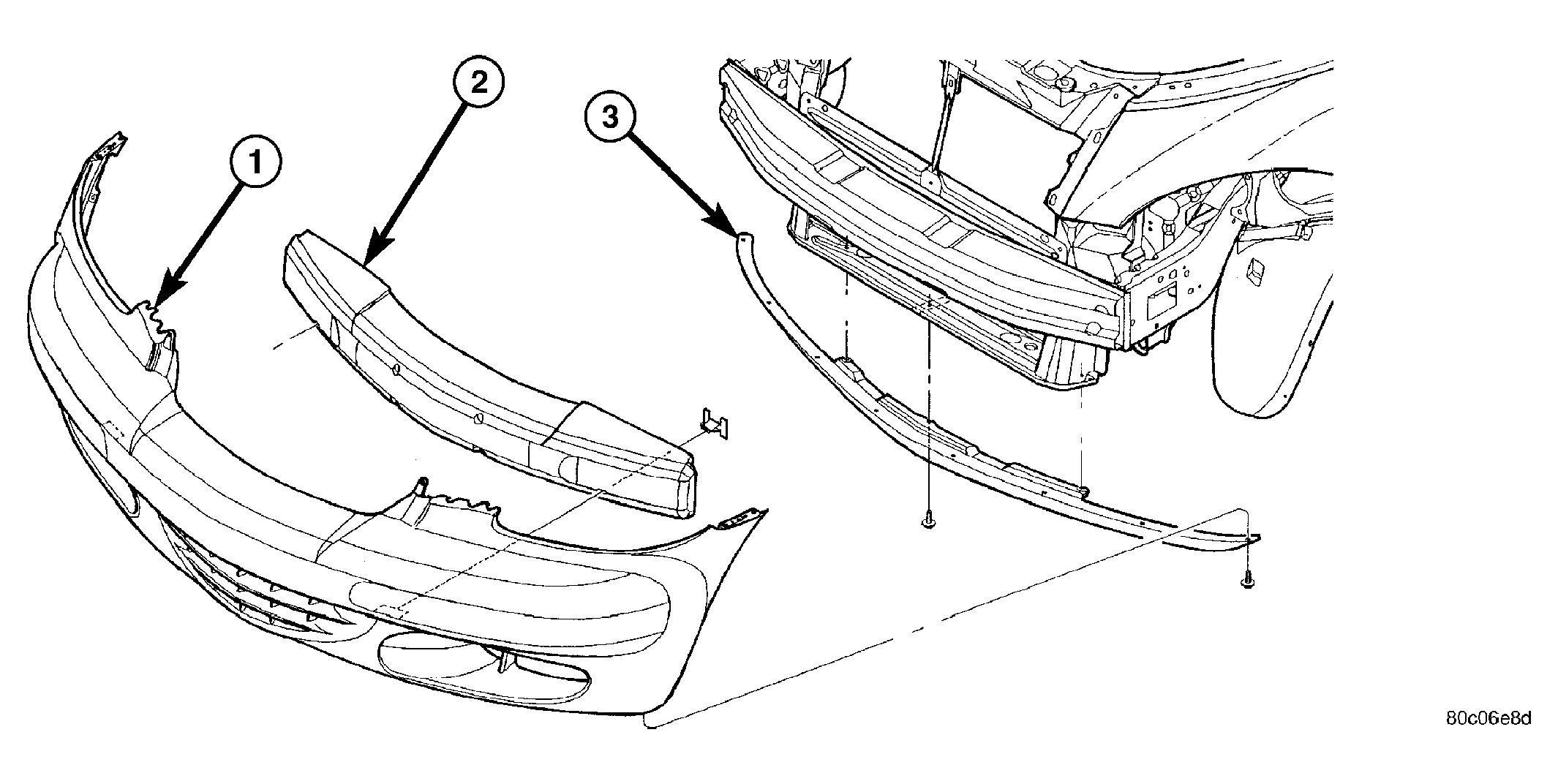

Fig 3: Front Bumper Fascia
Courtesy of DAIMLERCHRYSLER CORP.
Raise and support vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
Install three screws attaching air dam (3) and lower fascia to the radiator support crossmember.
Install spring nuts fasteners attaching fascia to fender flange.
Install three screws attaching splash shield to fascia on each side of vehicle.
Lower vehicle.
Install radiator grille. (Refer to BODY/EXTERIOR/GRILLE - RADIATOR - INSTALLATION)
