Siren - Export: Installation

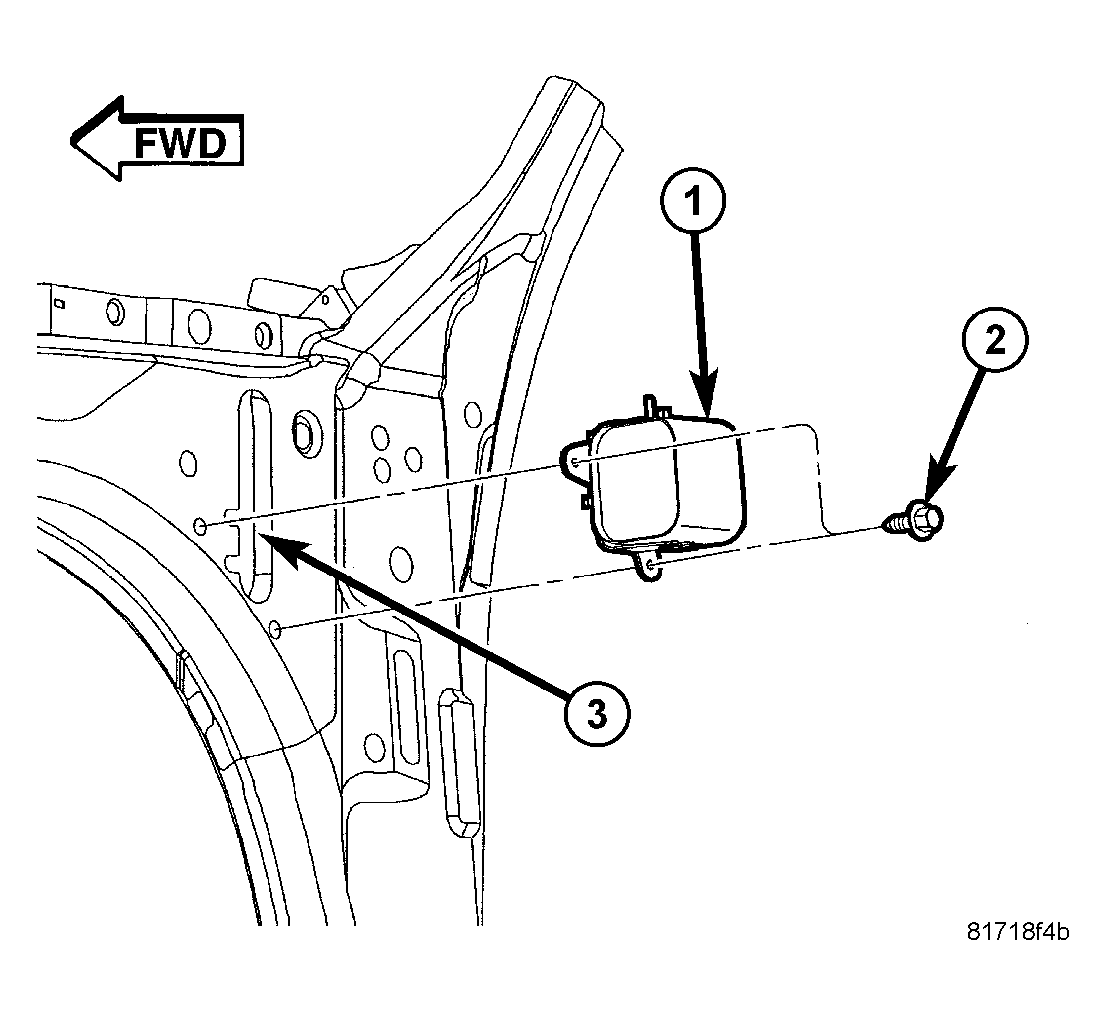

Fig 1: Removing/ Installing Vehicle Theft Security Siren
GC0041446Courtesy of DAIMLERCHRYSLER CORP.
  1. Position siren (1) and install retaining screws (2).
  2. Connect the siren electrical connector.
  3. Install air blocker in original position.
  4. Install the left front wheel well splash shield (Refer to BODY/EXTERIOR/FRONT END SPLASH SHIELDS - INSTALLATION) .
  5. Connect the battery negative cable.
