Hood Ajar Switch - Export: Installation

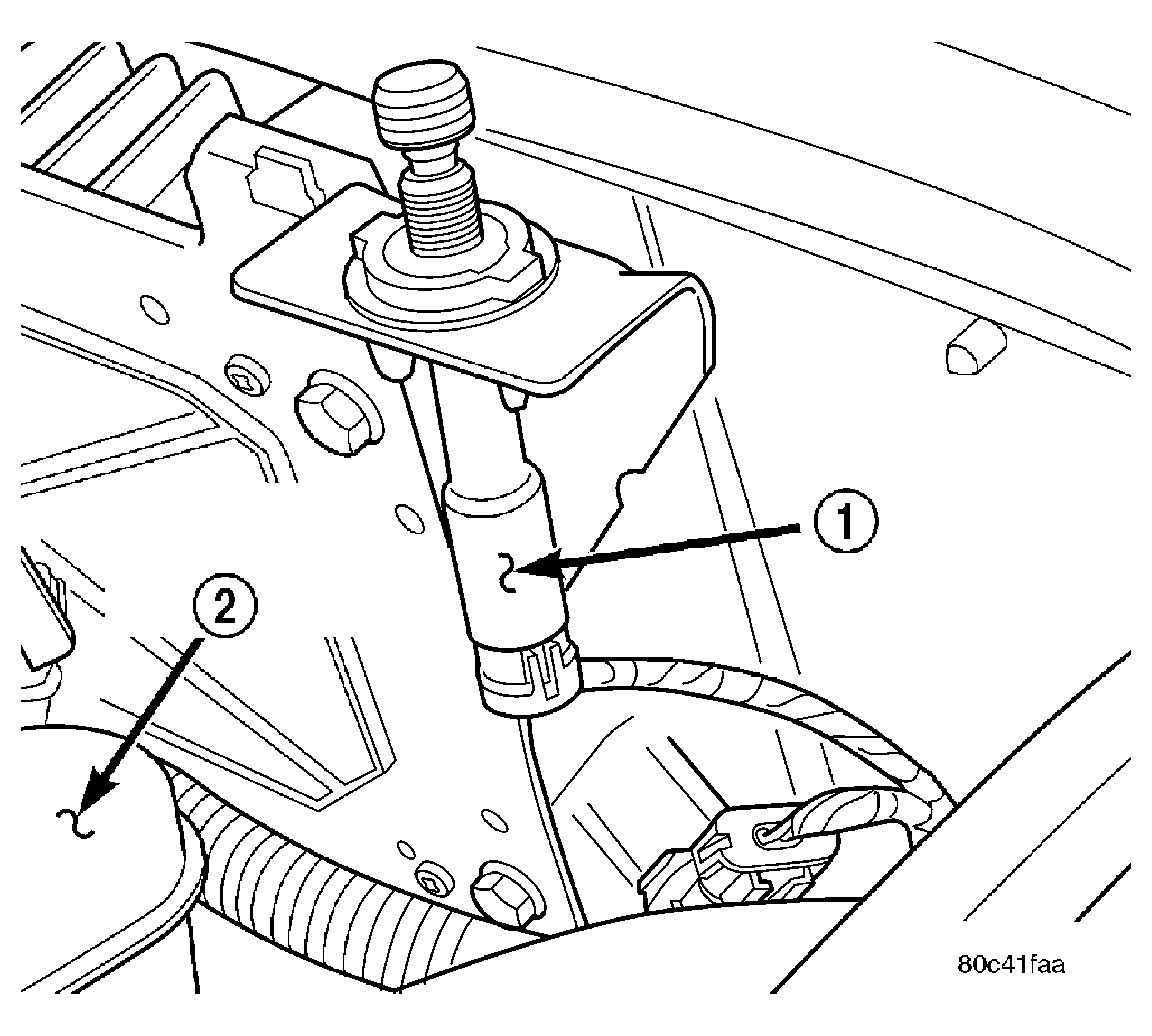

Fig 1: Hood Ajar Switch Location
GC0020025Courtesy of DAIMLERCHRYSLER CORP.
  1. Firmly press hood ajar switch through bracket.
  2. Connect wire harness connector to hood ajar switch (1).
  3. Connect the battery negative cable.
