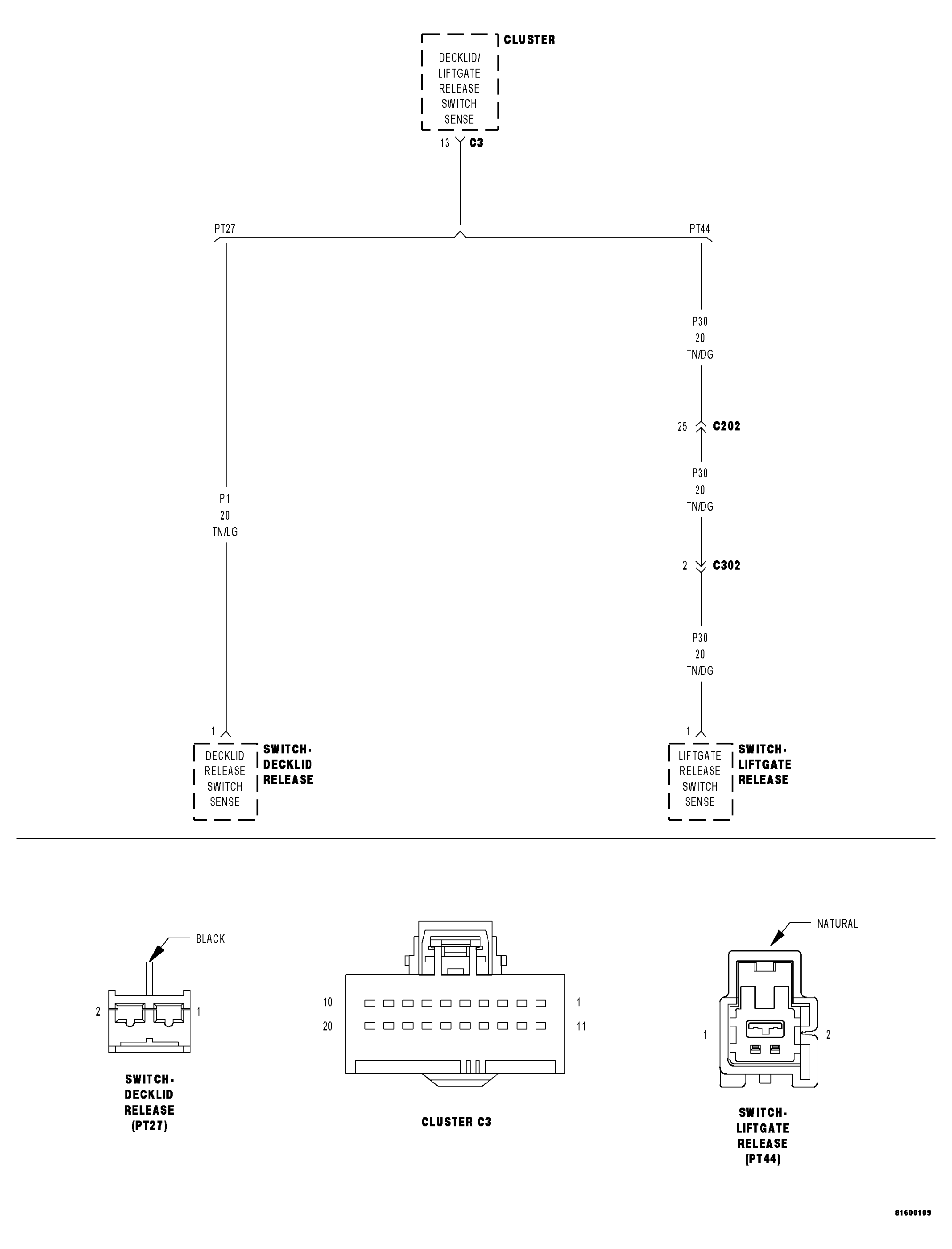

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock System - Electrical Diagnostics >> Electrical Diagnostics >> DTC Troubleshooting >> B186D-Trunk Release Switch Stuck - Cluster >> Circuit Schematic
