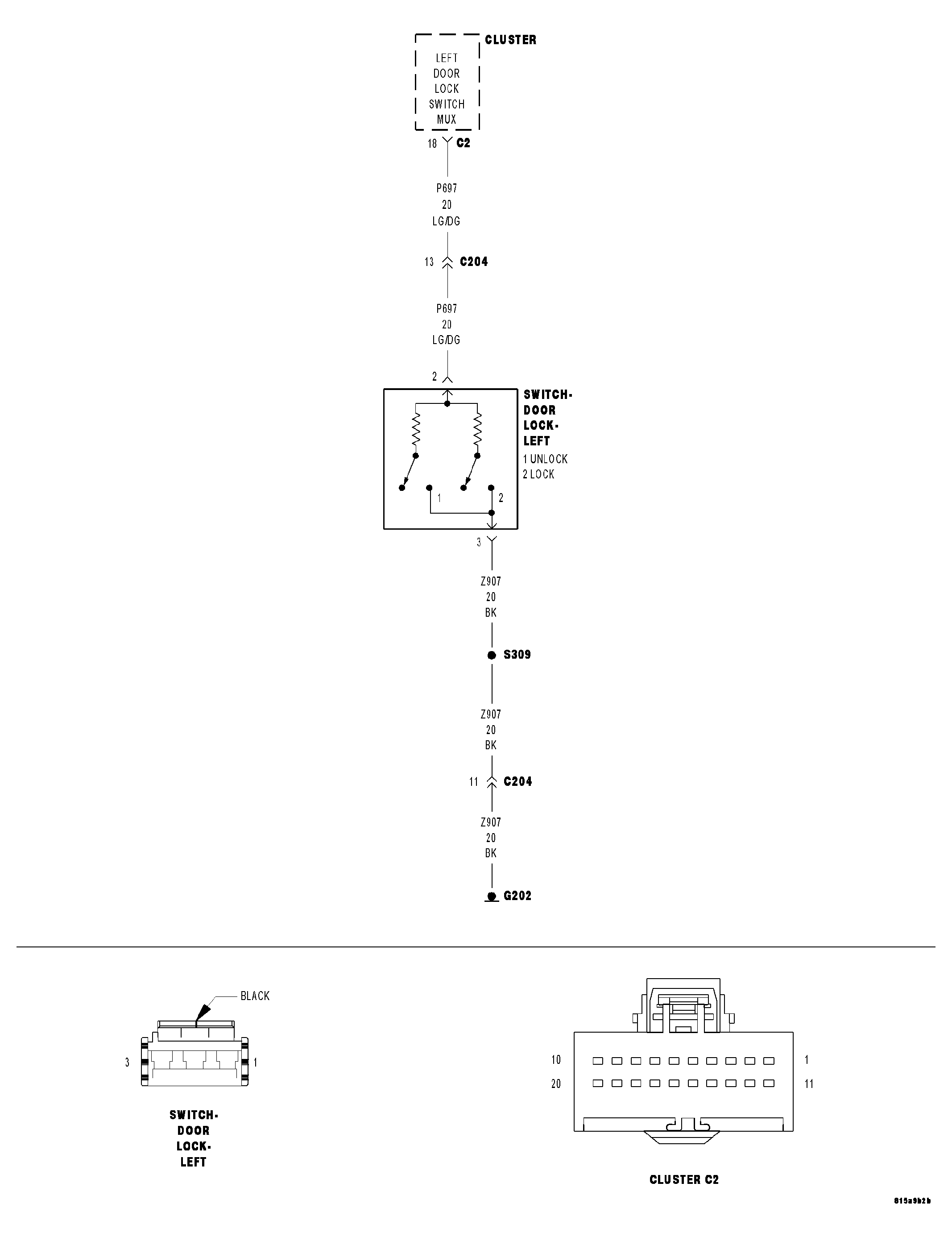

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock System - Electrical Diagnostics >> Electrical Diagnostics >> DTC Troubleshooting >> B1801 Driver (Left) Door Lock/Unlock Switch Circuit Low - Cluster >> Circuit Schematic
