Liftgate Lock Motor: Removal

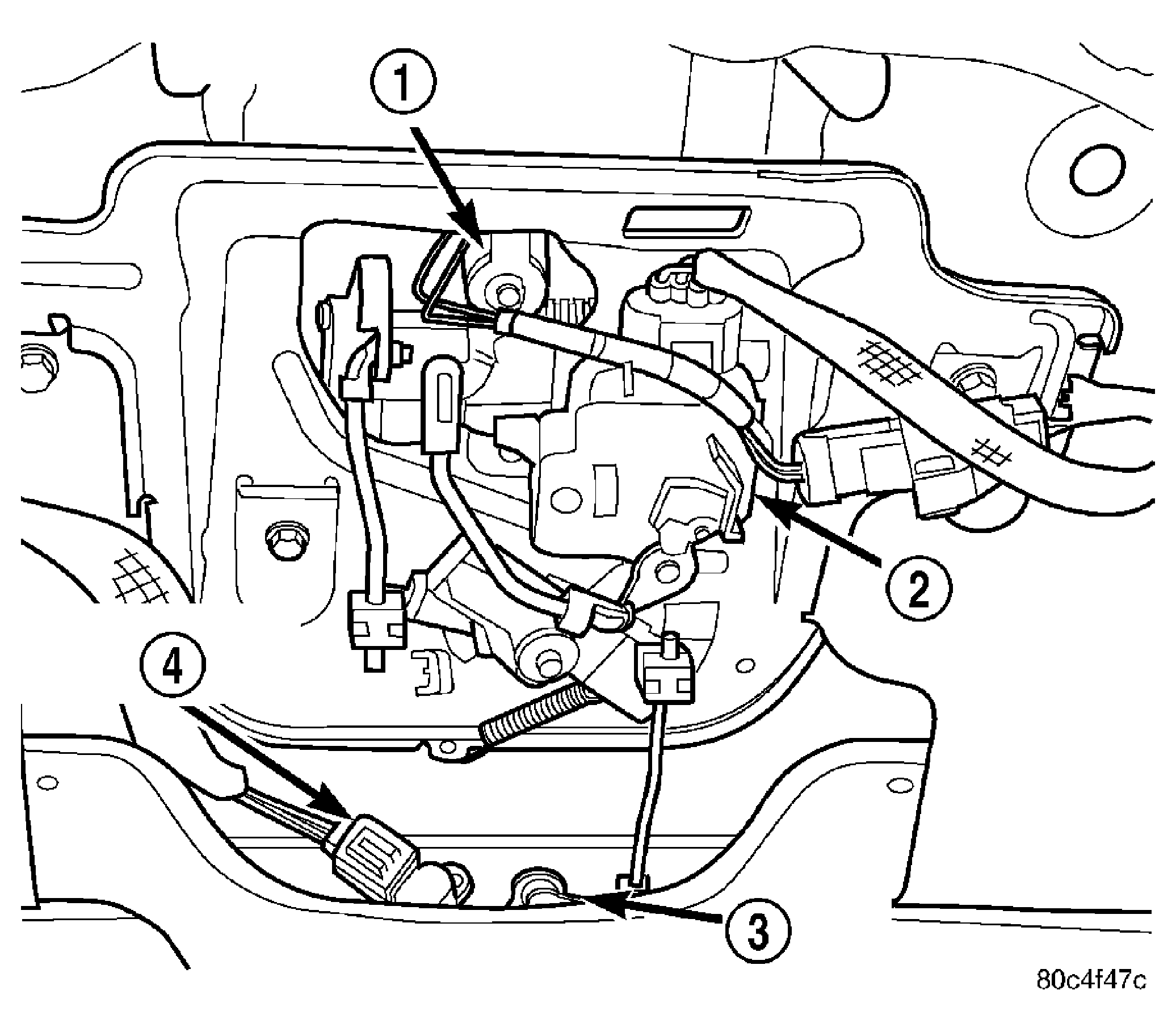

Fig 1: Liftgate Lock Motor
GC0022957Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove liftgate trim panel.
  3. Disconnect motor wire harness connector.
  4. Remove liftgate lock motor (2) from liftgate by gently unsnapping.
