Data Link Connector: Description

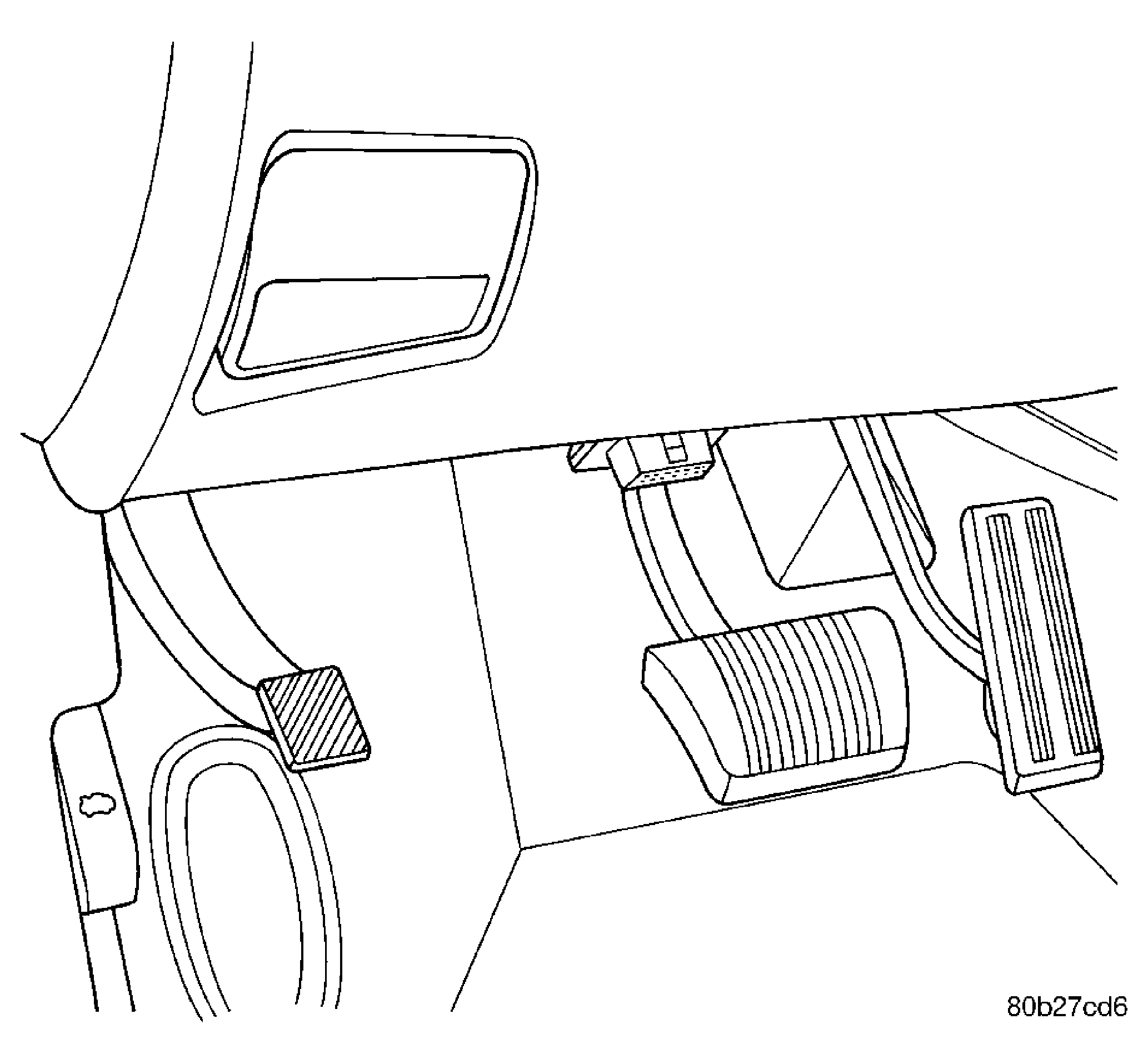

Fig 1: Data Link Connector

GC0022873

Courtesy of DAIMLERCHRYSLER CORP.

The data link connector is located inside the vehicle, below instrument panel next to the center column.
