Removal - Convertible

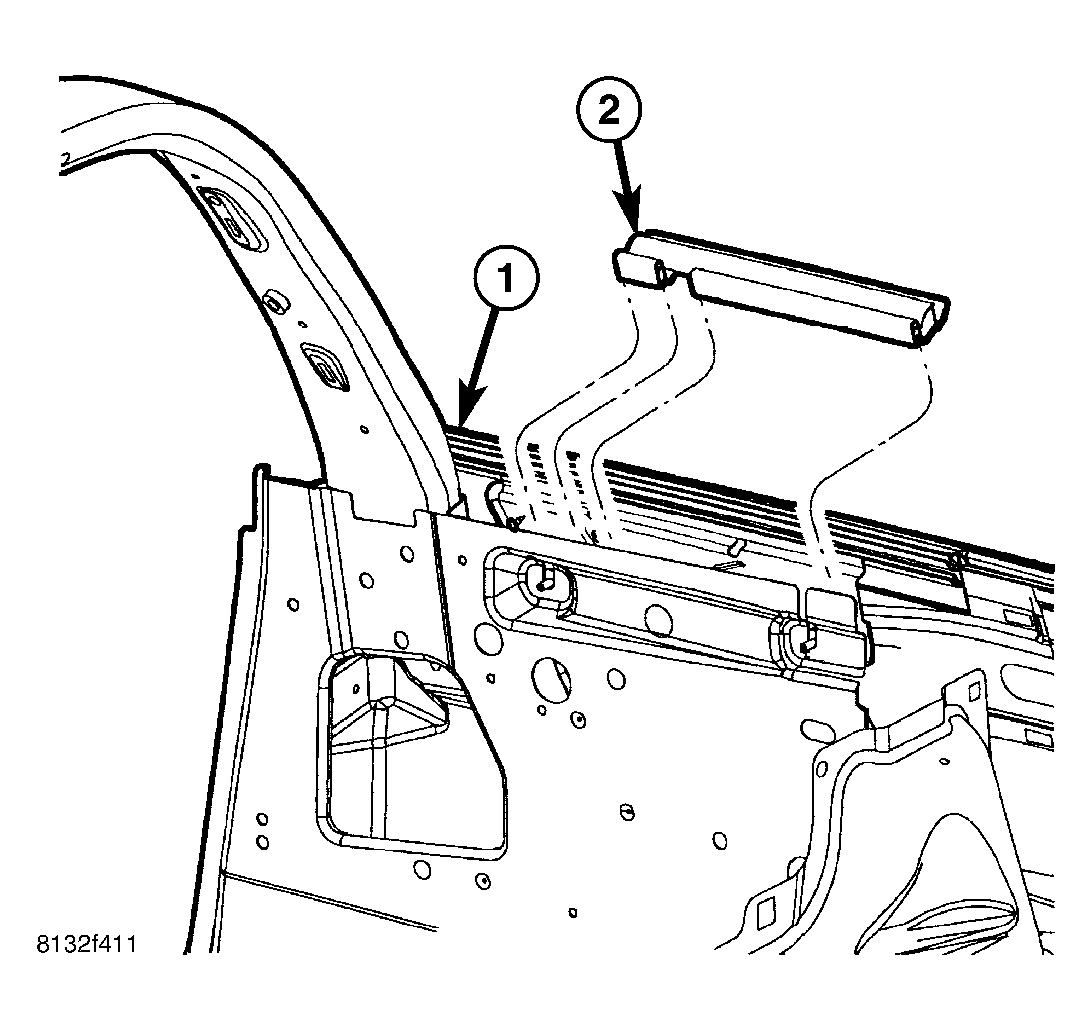

Fig 1: Rear Quarter Weatherstrip

Courtesy of DAIMLERCHRYSLER CORP.

Lower the convertible top.
Remove the rear quarter panel trim (Refer to BODY/INTERIOR/TRIM-QUARTER PANEL REAR - REMOVAL) .
Remove inner quarter panel weatherstrip (2) from the quarter panel inner flange (1) by carefully puling upward on the weatherstrip.

Fig 2: Quarter Panel Outer Belt Weatherstrip
Courtesy of DAIMLERCHRYSLER CORP.
Adjust the convertible top open/close to access the four screws (2) that secure the quarter panel outer belt weatherstrip (1).
Remove the four screws that secure the quarter panel outer belt weatherstrip to the quarter panel (3) and remove the weatherstrip.
