Front Door Outer Belt Weatherstrip: Removal: Coupe

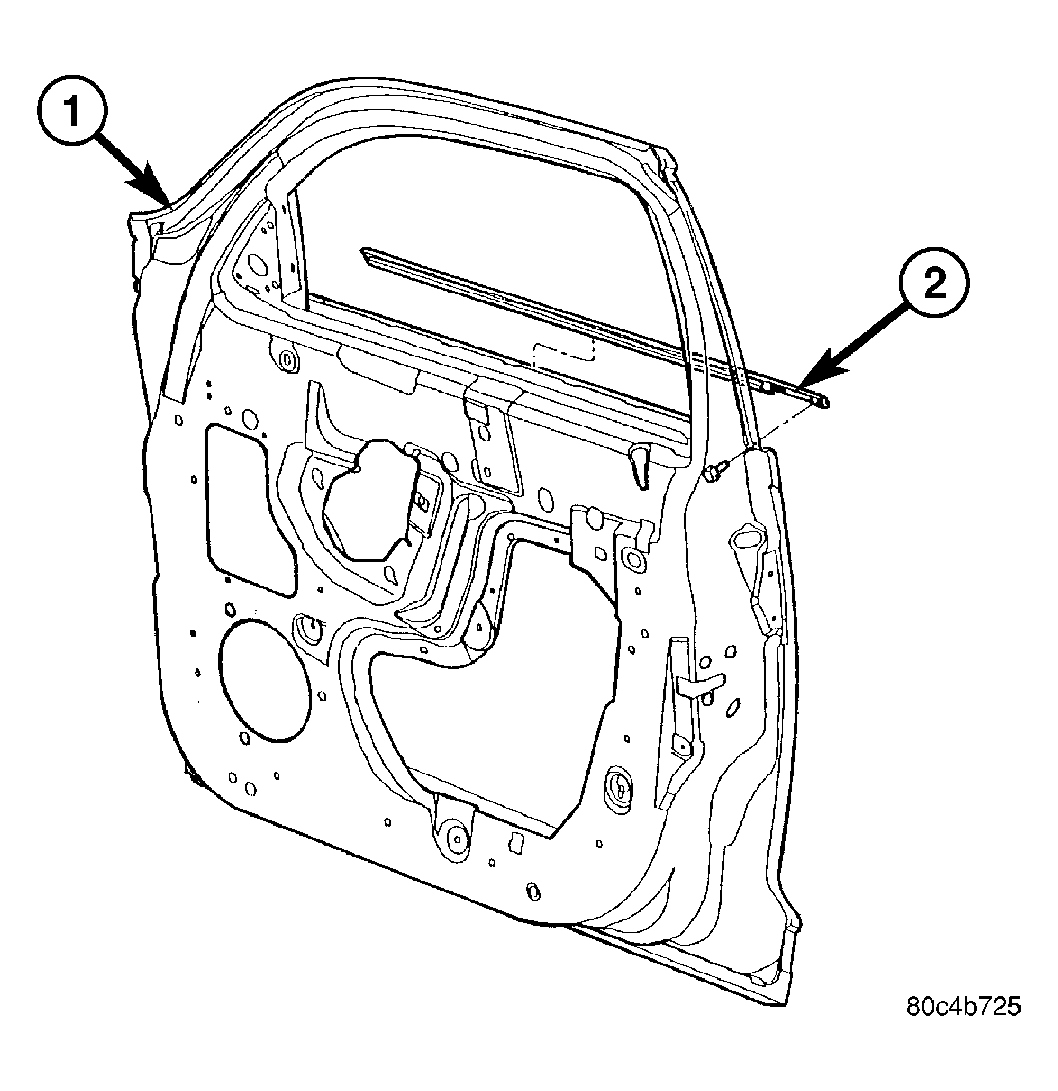

Fig 1: Door Outer Belt Weatherstrip

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT DOOR

2 - DOOR OUTER BELT WEATHERSTRIP

1. Open door glass.
2. Remove weatherstrip screw at the rearward edge of door.
3. Pull upward at rear end of outer belt weatherstrip (2).
4. Remove outer belt weatherstrip (2) from vehicle.
