Front Door Inner Belt Weatherstrip: Removal: Coupe

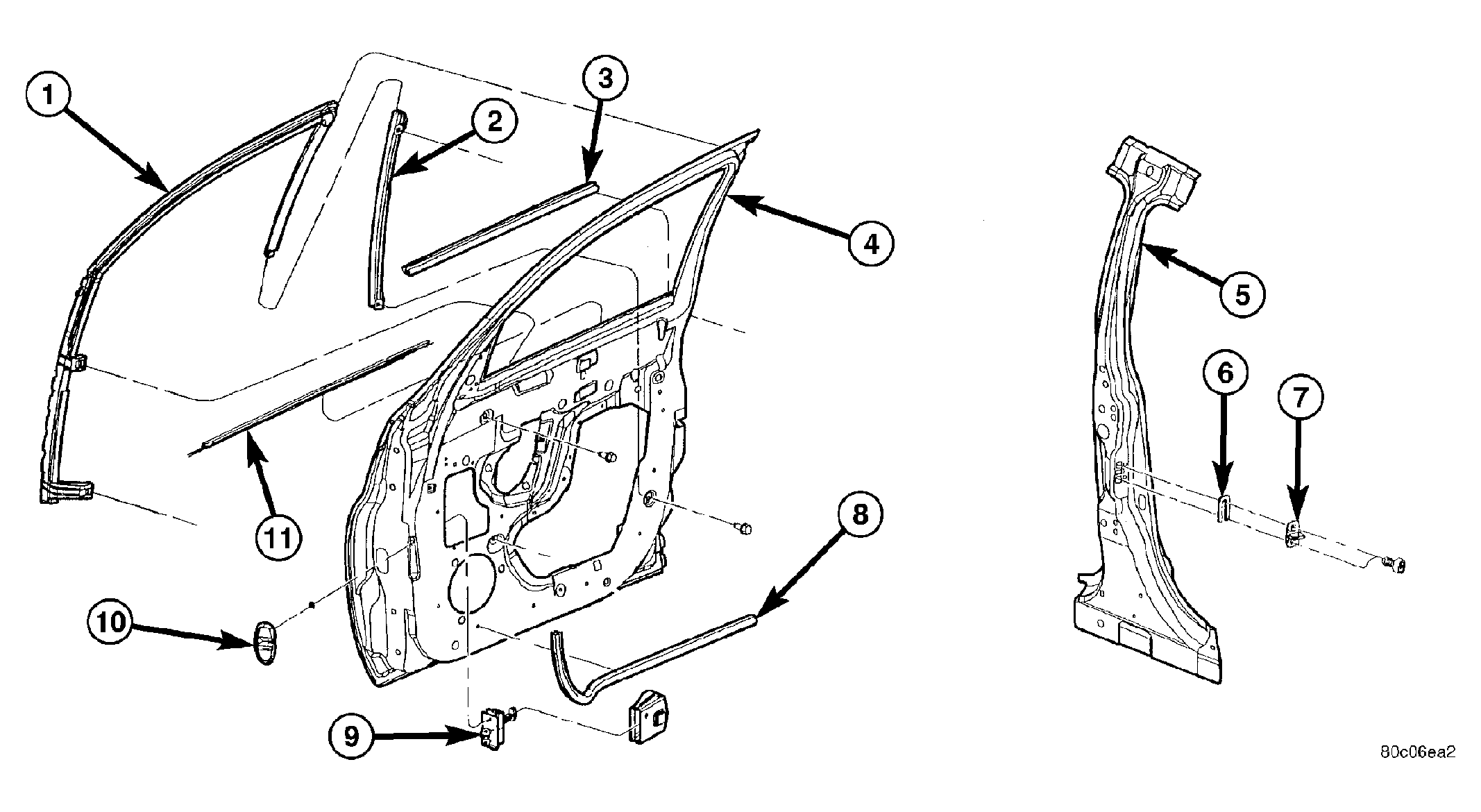

Fig 1: Front/Rear Sill Secondary Weatherstrip

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT DOOR GLASS RUN WEATHERSTRIP	7 - FRONT DOOR LATCH STRIKER
2 - FRONT DOOR GLASS LOWER REAR CHANNEL	8 - FRONT DOOR SILL WEATHERSTRIP
3 - FRONT DOOR INNER BELT WEATHERSTRIP	9 - FRONT DOOR CHECK STRAP AND COVER
4 - FRONT DOOR	10 - FRONT DOOR CHECK STRAP SEAL
5 - B-PILLAR	11 - FRONT DOOR OUTER BELT WEATHERSTRIP
6 - FRONT DOOR LATCH STRIKER SPACER

1. Remove door trim panel.
2. Remove inner belt weatherstrip from door. If necessary, use a rubber mallet and a block of wood, tapping upward at each clip attaching the molding to the door.
