Sunroof Sunshade: Removal

Fig 1: Sunshade Removal
GC0022590Courtesy of DAIMLERCHRYSLER CORP.
1 - GLASS PANEL
2 - SUNSHADE REMOVAL
  1. Remove sunroof glass panel (Refer to BODY/SUNROOF/GLASS PANEL - REMOVAL) .

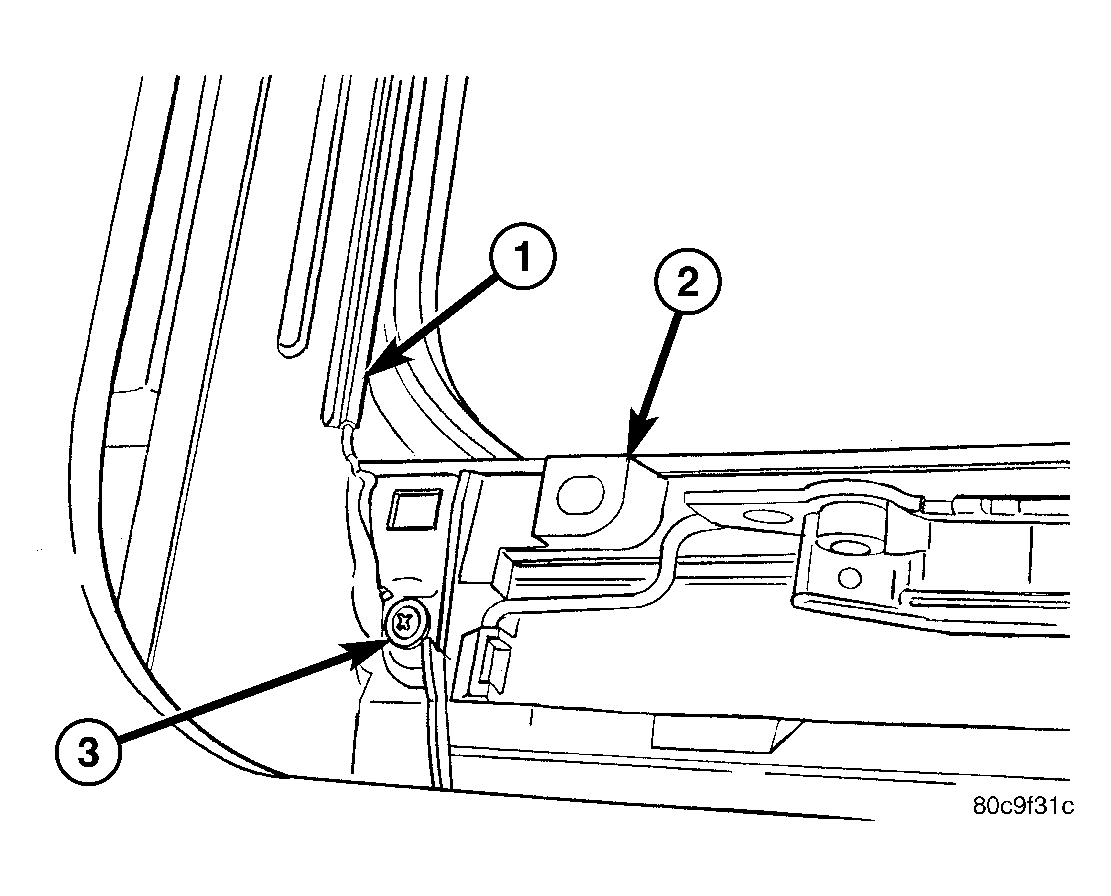

    Fig 2: Guide Assembly Trough
    GC0022587Courtesy of DAIMLERCHRYSLER CORP.
    1 - TROUGH
    2 - TROUGH GUIDE
    3 - SCREW
  2. From the top of the vehicle through the roof opening remove the two screws (one LH and one RH side) attaching trough assembly to trough guides.
  3. Remove trough assembly.
    Fig 3: Sunshade Rear Guide
    GC0022588Courtesy of DAIMLERCHRYSLER CORP.
    1 - GLASS PANEL
    2 - SUNSHADE REAR GUIDE
    3 - SCREWDRIVER DEPRESSING REAR GUIDE
  4. From the top of the vehicle through roof opening slide the sunshade forward, disengaging sunshade front guide feet through front opening in tracks.
  5. Continue to pull the sunshade forward and rotate sunshade until rear guide feet are disengaged from tracks and sunshade is completely free from the sunroof assembly.
CAUTION: Use care not to crease the sunshade when removing or installing.
