Front Drain Tube

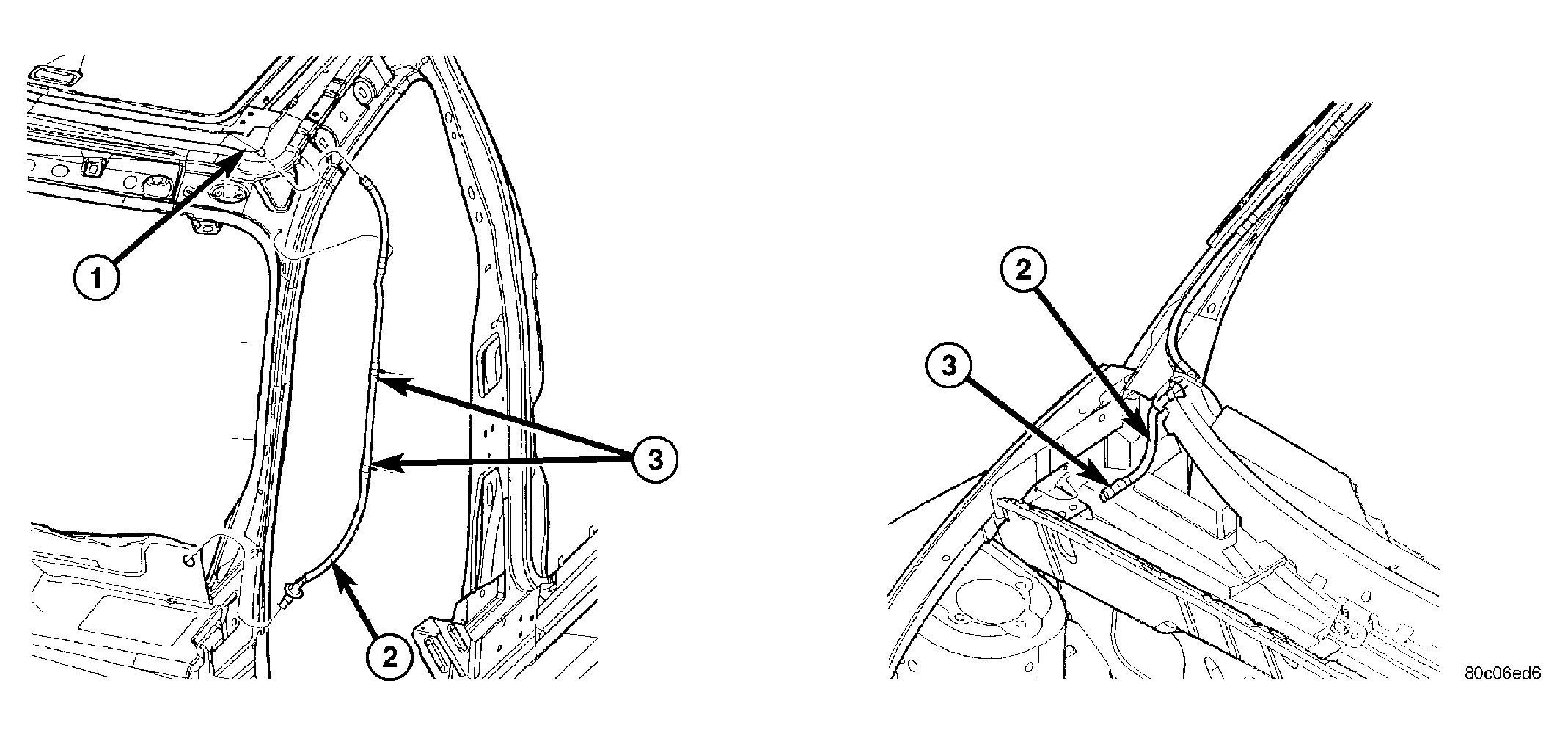

Fig 1: Front Drain Tube

Courtesy of DAIMLERCHRYSLER CORP.

1 - SUNROOF MODULE

2 - SUNROOF FRONT DRAIN TUBE

3 - CLIPS

Move glass panel to the fully closed position.
Remove sunroof opening trim lace (Refer to BODY/SUNROOF/OPENING TRIM LACE - REMOVAL) .
Disconnect the control switch and wire connector.
Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
Disconnect the drain tube (2) from the sunroof housing.
Drain any liquid from tube connection, if necessary.
Attach new drain tube to old tube with tape that is to be replaced.
Work the old tube back and forth to loosen the sealer.
Use care and pull the old tube out through the bottom and the new tube through.
