Removal - Convertible

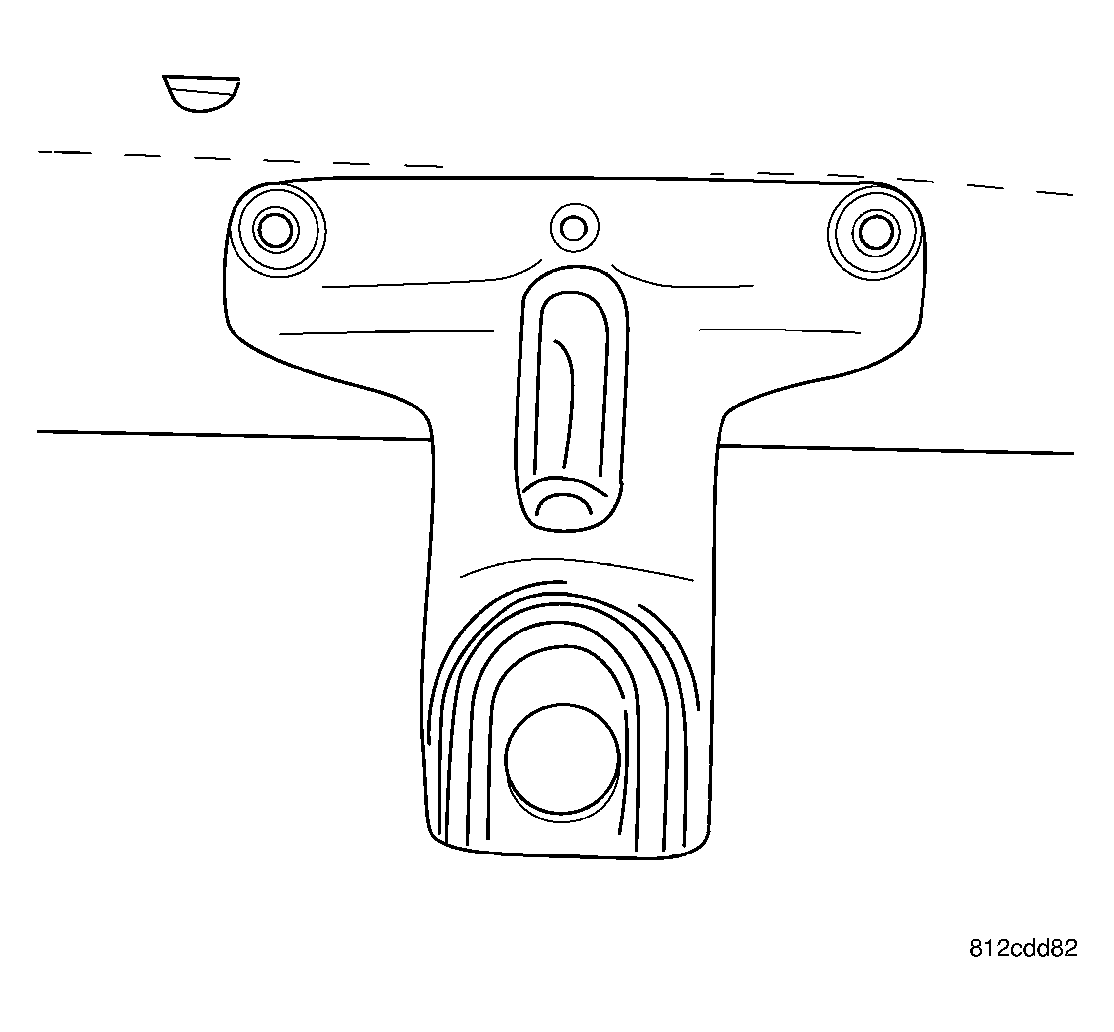

Fig 1: Bolster - Mounting Bracket
GC0022553Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove rear seat bolster from vehicle. (Refer to BODY/SEATS/REAR SEAT BOLSTER - REMOVAL) .
  2. Remove the two bolster mounting brackets.
  3. Remove push pin fasteners from upper retainer.
    Fig 2: Bolster Cover
    GC0022554Courtesy of DAIMLERCHRYSLER CORP.
    1 - HOG RINGS
  4. Cut three hog rings (1) attaching cover together.
  5. Remove cover from foam.
